Standing Desk | 180x80 cm | Walnut with white frame

591-35 8W172 180-80S3 VM
591-35 8W172 180-80S3 VM

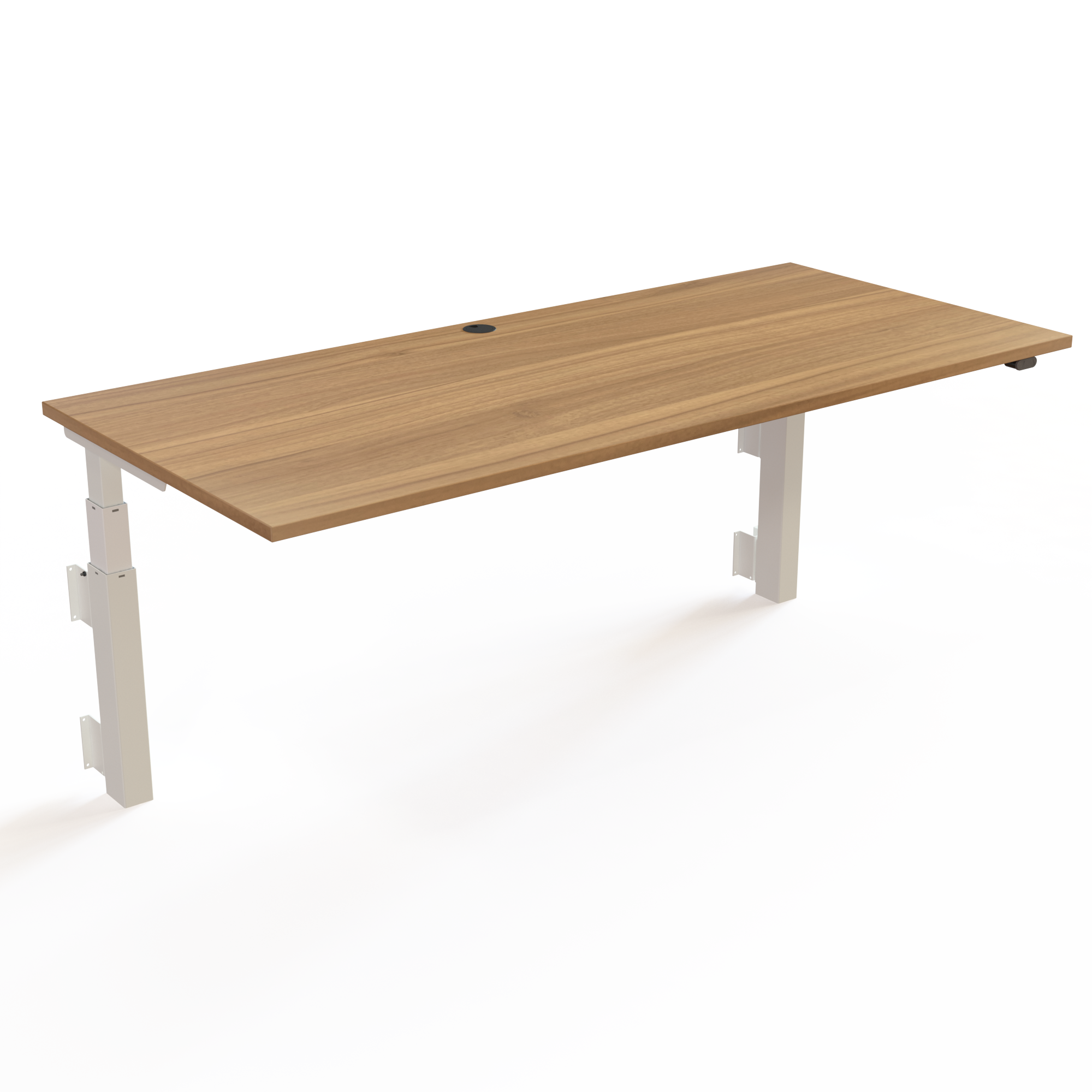

Standing Desk | 180x80 cm | Walnut with white frame
Standing Desk | 180x80 cm | Walnut with white frame
$ 958
Item no.: 591-35 8W172 180-80S3 VM

Transform any wall into a high-performance workstation. This height-adjustable desk mounts effortlessly to create an ergonomic office setup in environments where floor space is at a premium. With the floor area completely freed up, cleaning underneath takes no effort, and the space remains open for flexible room usage. It mounts using a simplified system that requires just 39 min to assemble. Certified to ANSI/BIFMA G1-2013 with a height range of 22.6" to 48.7" that accommodates over 95% of users, complete with a sturdy tabletop available in size 70.9 x 31.5", an 22-48" height adjustment range (measured without the optional 1.38" chrome base ring; attach it to increase the stroke by 1.38), an melamine surface option, a sleek walnut tabletop color, an RAL 9016 (white) frame finish, and a generous 132 lbs load capacity.

A standard two-arrow control panel is included with the desk. The simple switching mechanism is designed for reliability and long service life. Tactile arrow buttons make it easy to identify the correct direction by feel alone.


Table top specifications

  • Dimensions : 70.9 x 31.5"
  • Core material: 1 inch chipboard, classified E0
  • Surface finish: walnut melamine, a cable port is supplied as standard.
  • Edges: 0.08 inch ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 22-48"
  • Lifting capacity: 132 lbs
  • Operation: A standard two-arrow control panel is included with the desk. The simple switching mechanism is designed for reliability and long service life. Tactile arrow buttons make it easy to identify the correct direction by feel alone.
  • Motor: ConSet’s tested and reliable 1-motor drive solution
Frame Color
White
Tabletop Color
Frame Style
Wall
Add-Ons
No add-ons
Control Unit
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
591-35 8W172 180-80S3 VM
Description:
Standing Desk | 180x80 cm | Walnut with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XWXXXLift column set, white$ 512,-$ 512,-
1501-39 XW400501-39 Arm Set, white$ 43,-$ 43,-
1501-X XWW02Wall mount, white$ 31,-$ 31,-
1501-XX 8XPOWAPower Box A$ 94,-$ 94,-
1SQ138890Traversset, 172 cm, neutral$ 82,-$ 82,-
1180-80S3 VMDesk Top For Standing Desk | 180x80 cm | Walnut$ 196,-$ 196,-

Total
$ 958,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XWXXX77191715,005704142161616
501-39 XW40040752,205704142161692
501-X XWW02211372,005704142161647
501-XX 8XPOWA221190,705704142127018
SQ138890171534,205704142138892
180-80S3 VM18787426,005704142149805
