Manufacturer of electric height adjustable desks ...

Standing Desk | 120x80 cm | Maple with white frame

576-35 8W112 120-80S3 MM
576-35 8W112 120-80S3 MM
Standing Desk | 120x80 cm | Maple with white frame
Standing Desk | 120x80 cm | Maple with white frame
Standing Desk | 120x80 cm | Maple with white frame
Standing Desk | 120x80 cm | Maple with white frame
$ 1223
Item no.: 576-35 8W112 120-80S3 MM

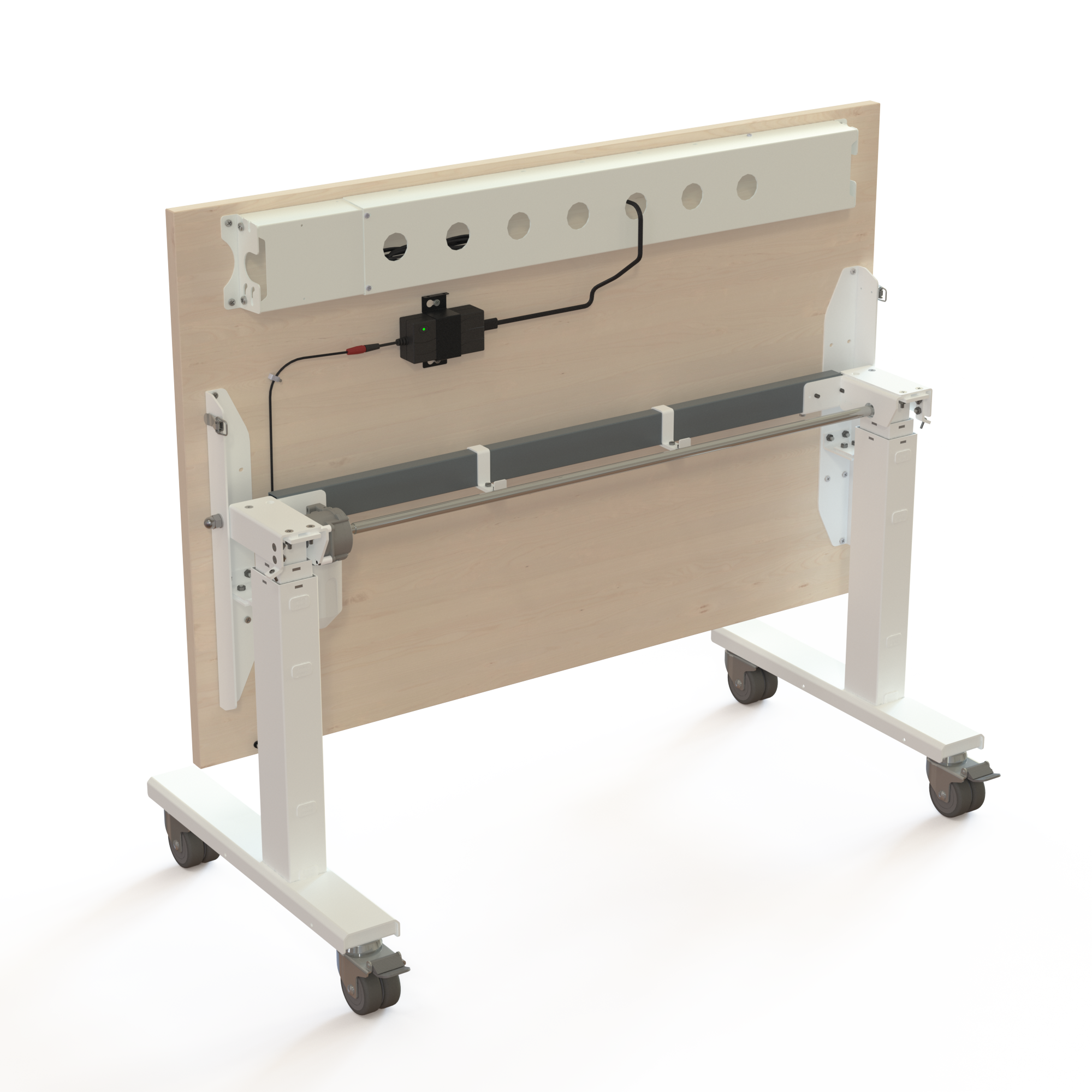

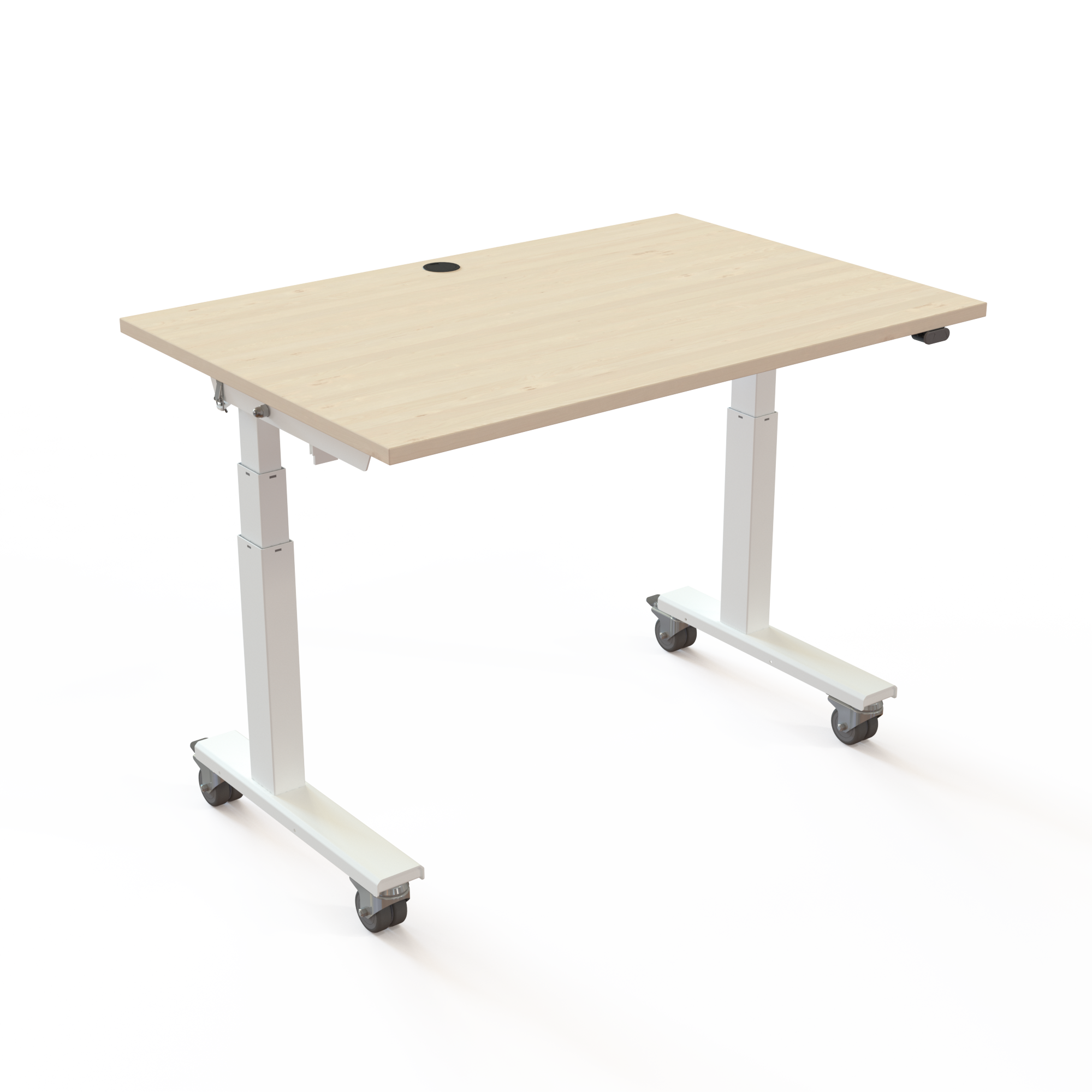

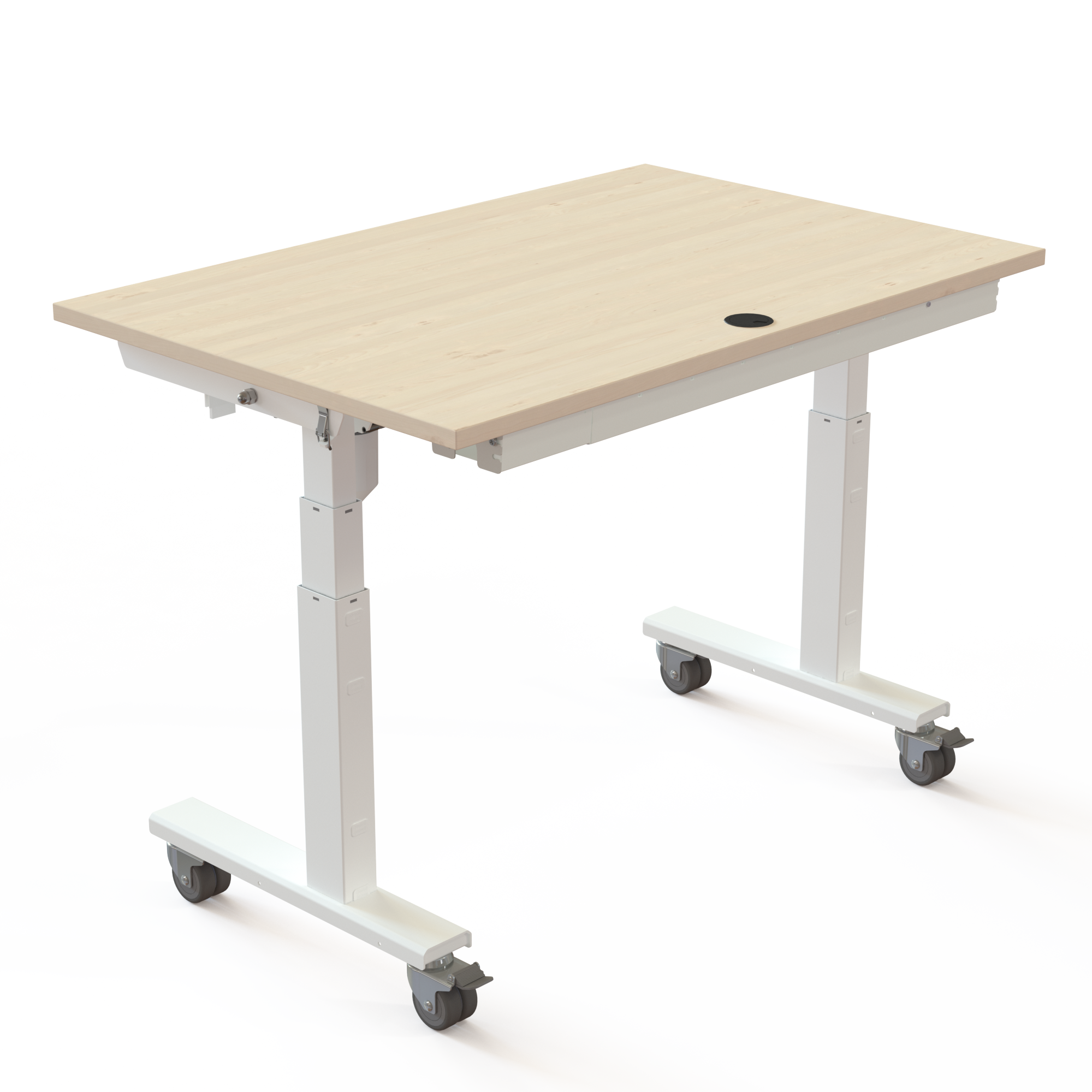

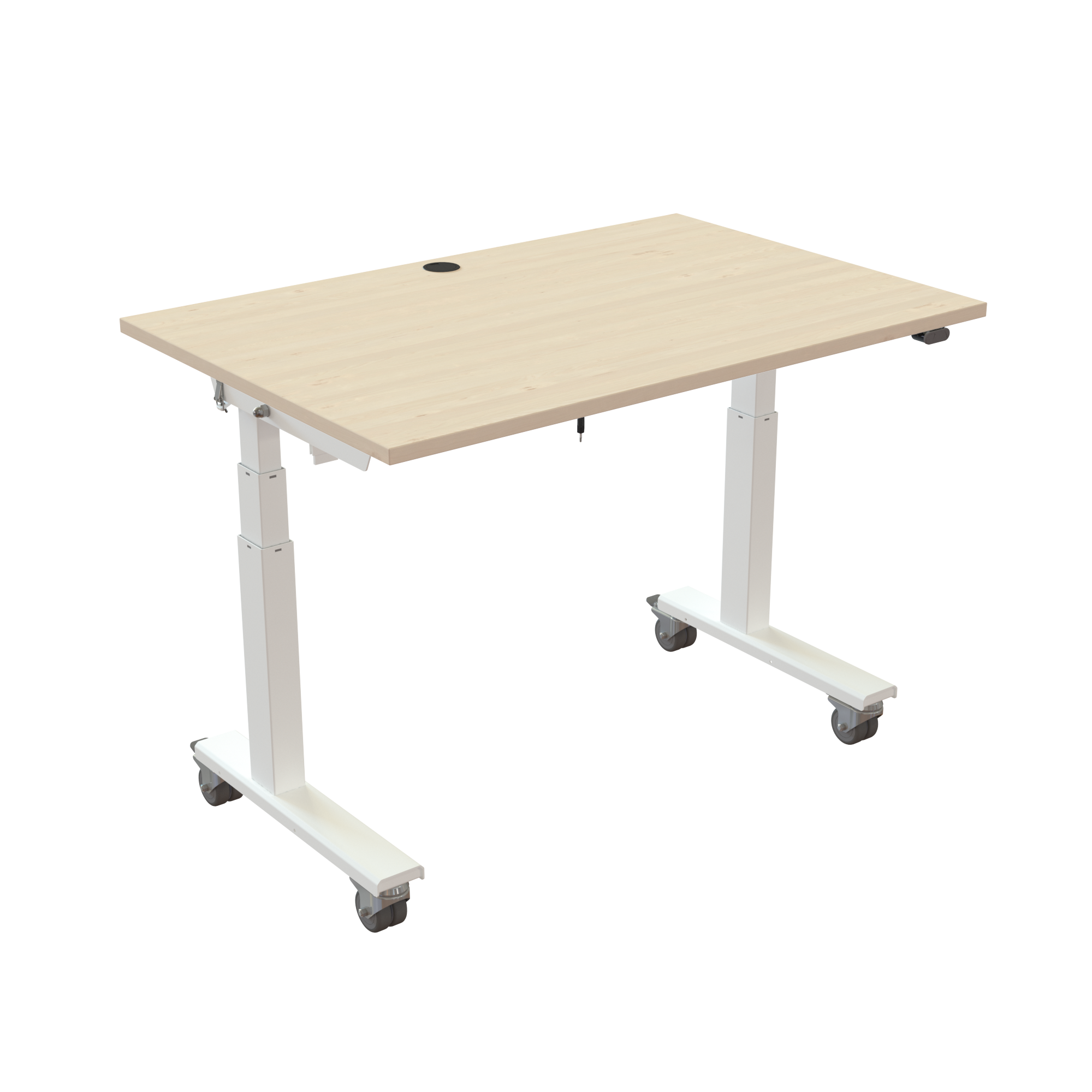

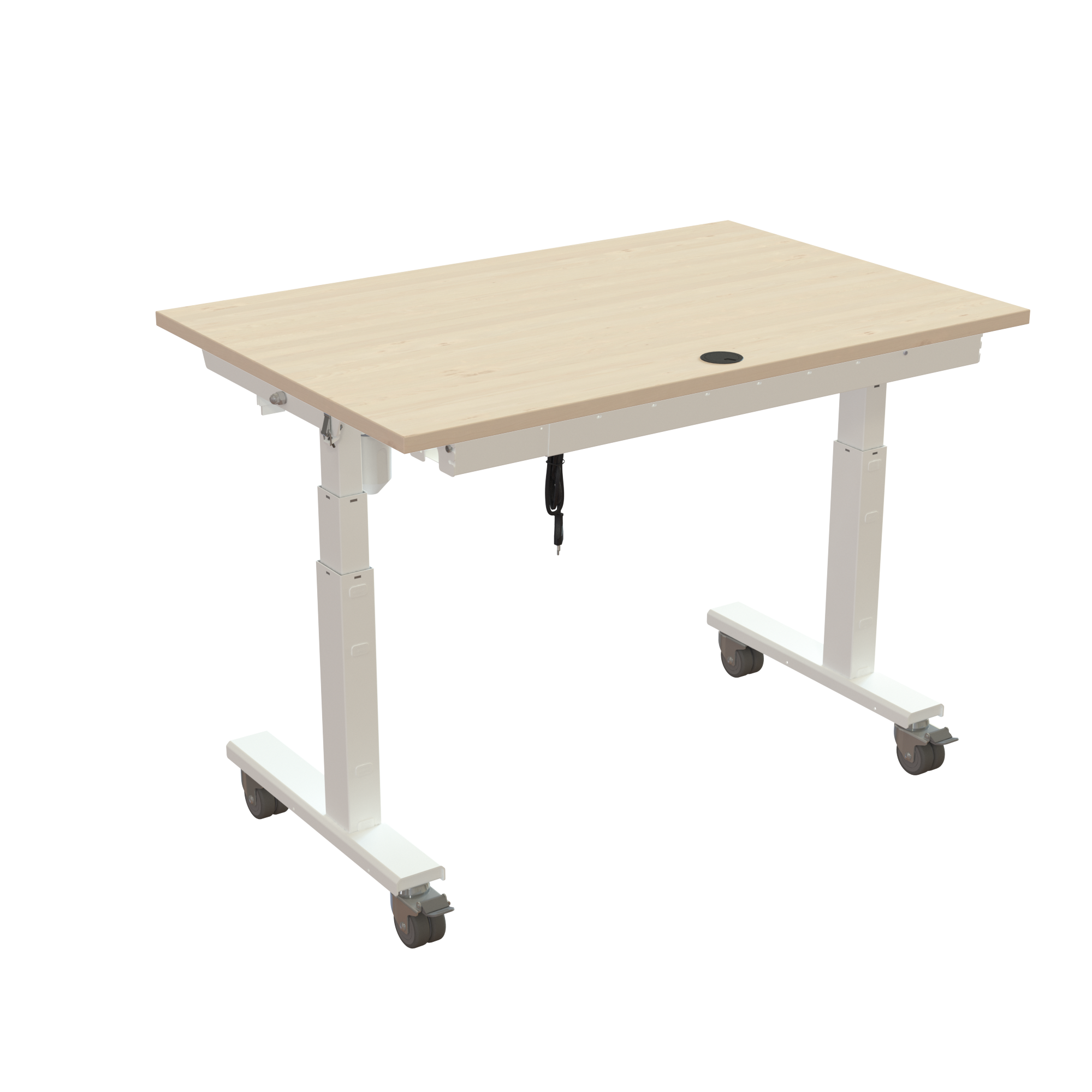

An electric height-adjustable training desk offering a 26.4-52" elevation range and a 220 lbs lift capacity. The 90-degree tilting desktop makes it easy to roll on heavy-duty casters and nest several units together in storage closets or depots, complete with a tabletop-mounted cable tray. Assembly takes 44 min. Configured with a RAL 9016 (white) frame and a tabletop featuring maple color with an melamine surface finish.

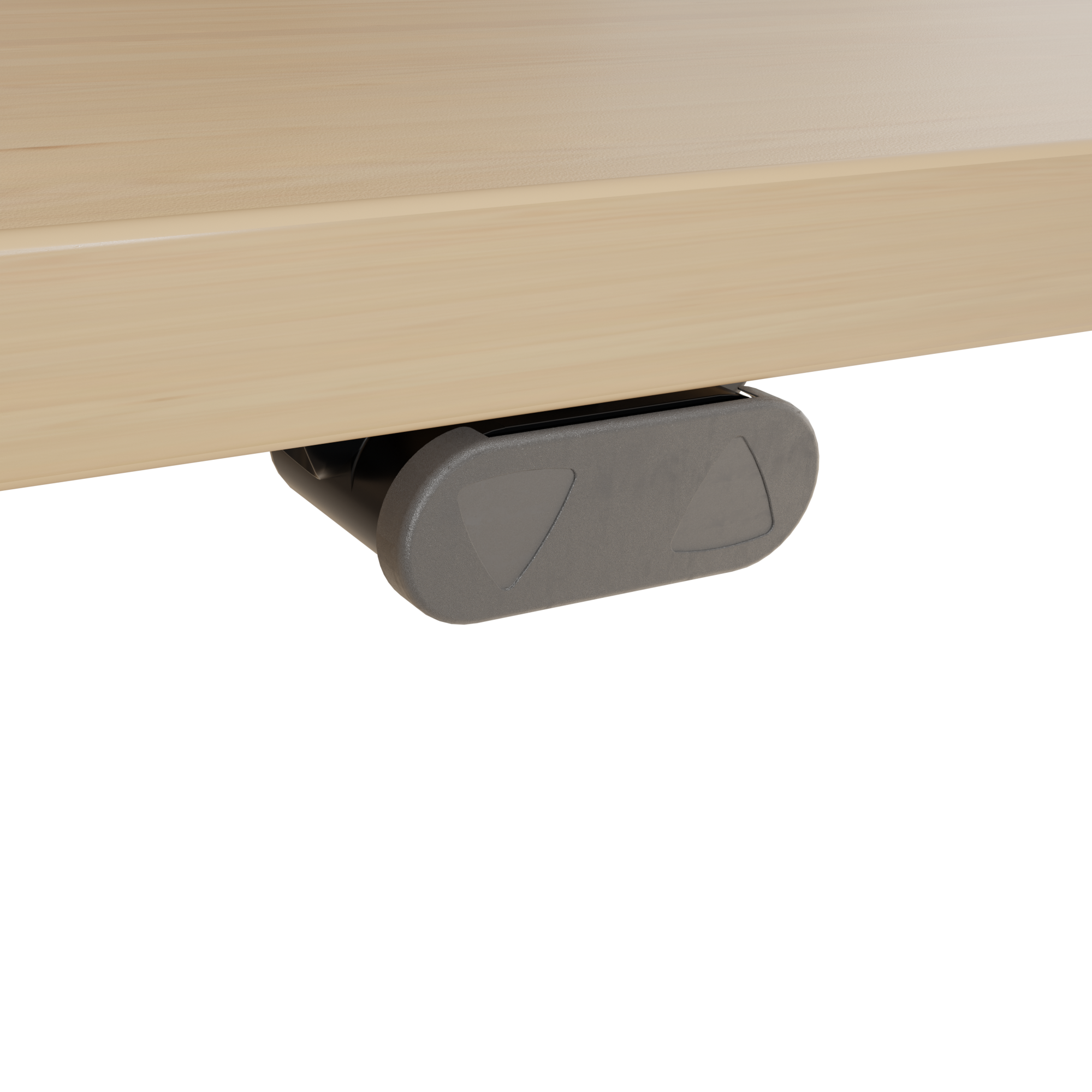

A standard two-arrow control panel is included with the desk. The simple switching mechanism is designed for reliability and long service life. Tactile arrow buttons make it easy to identify the correct direction by feel alone. The 90-degree flip mechanism fits directly to the desk frame with standard leg screws. Locking clips on both sides keep the desktop firm for daily work.


Table top specifications

  • Dimensions : 47.2 x 31.5"
  • Core material: 1 inch chipboard, classified E0
  • Surface finish: maple melamine, we include a standard desk grommet for cable tidiness.
  • Edges: 0.08 inch ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 26.4-52"
  • Lifting capacity: 220 lbs
  • Operation: A two-arrow user panel comes fitted as standard. The control system uses a simple switching principle that is both robust and reliable. Raised tactile arrows help users identify the controls by touch.
  • Motor : ConSet’s reliable and thoroughly tested 1-motor system
Frame Color
White ▼
Frame Style
Flip top ▼
Add-Ons
No Add-ons ▼
Control Unit
Table top color:
Frame color:
Table top thickness:
Detailed product information
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
576-35 8W112 120-80S3 MM
Description:
Standing Desk | 120x80 cm | Maple with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XWXXXLift column set, white$ 512,-$ 512,-
1501-96 XWXXXSet for 501-96, RAL 9016, White$ 211,-$ 211,-
1501-XX 8XPOWAPower Box A$ 94,-$ 94,-
1LF750 HXXXLift column set, white$ 66,-$ 66,-
1SQ137690Traversset, 112 cm, neutral$ 82,-$ 82,-
1501-XX CW096-166Universal cable-tray, White$ 68,-$ 68,-
1120-80S3 MMDesk Top For Standing Desk | 120x80 cm | Maple$ 190,-$ 190,-

Total
$ 1223,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XWXXX77191715,005704142161616
501-96 XWXXX5921129,705704142161432
501-XX 8XPOWA221190,705704142127018
LF750 HXXX242482,605704142124468
SQ137690111532,305704142137697
501-XX CW096-166888153,805704142144800
120-80S3 MM12787417,005704142149843
