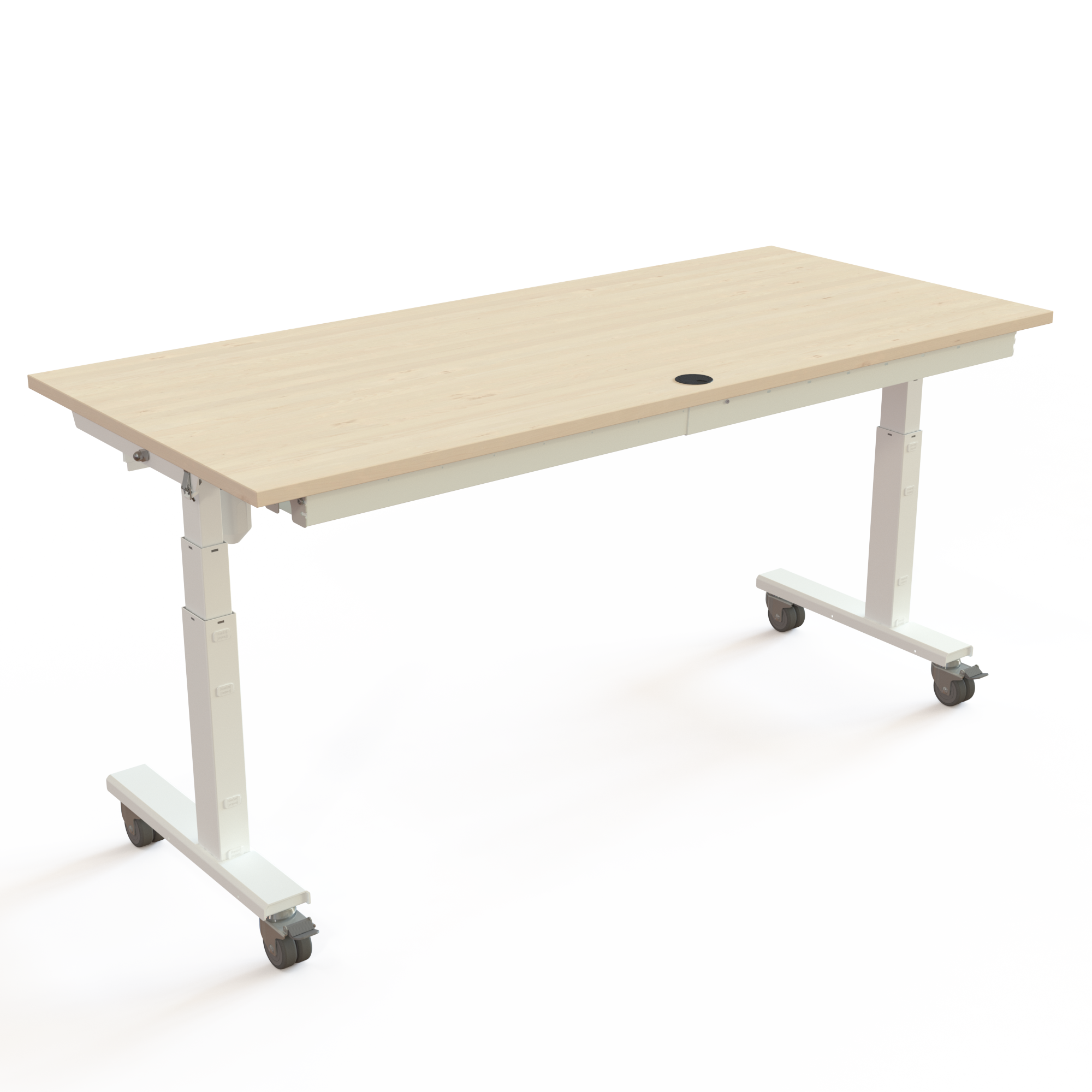

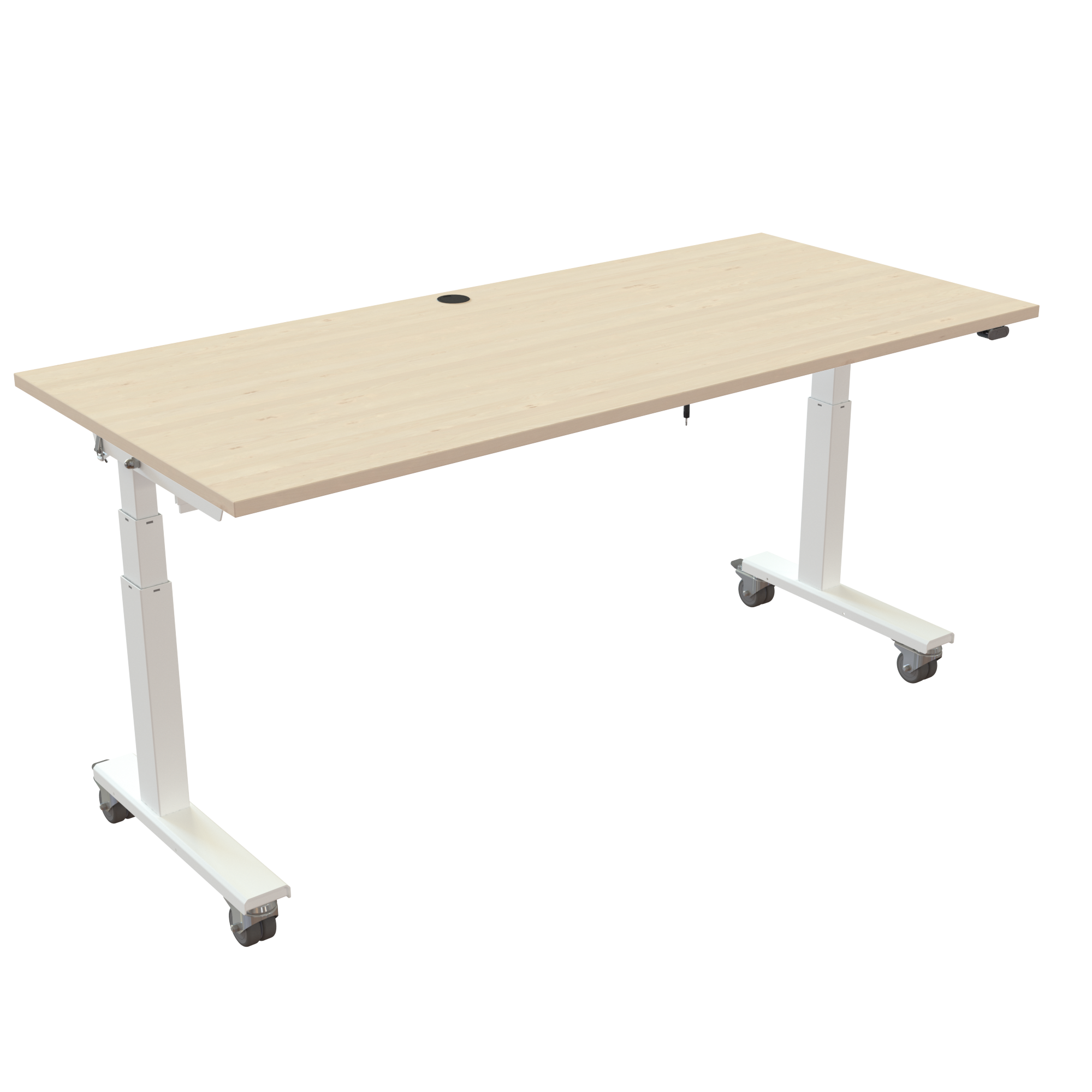

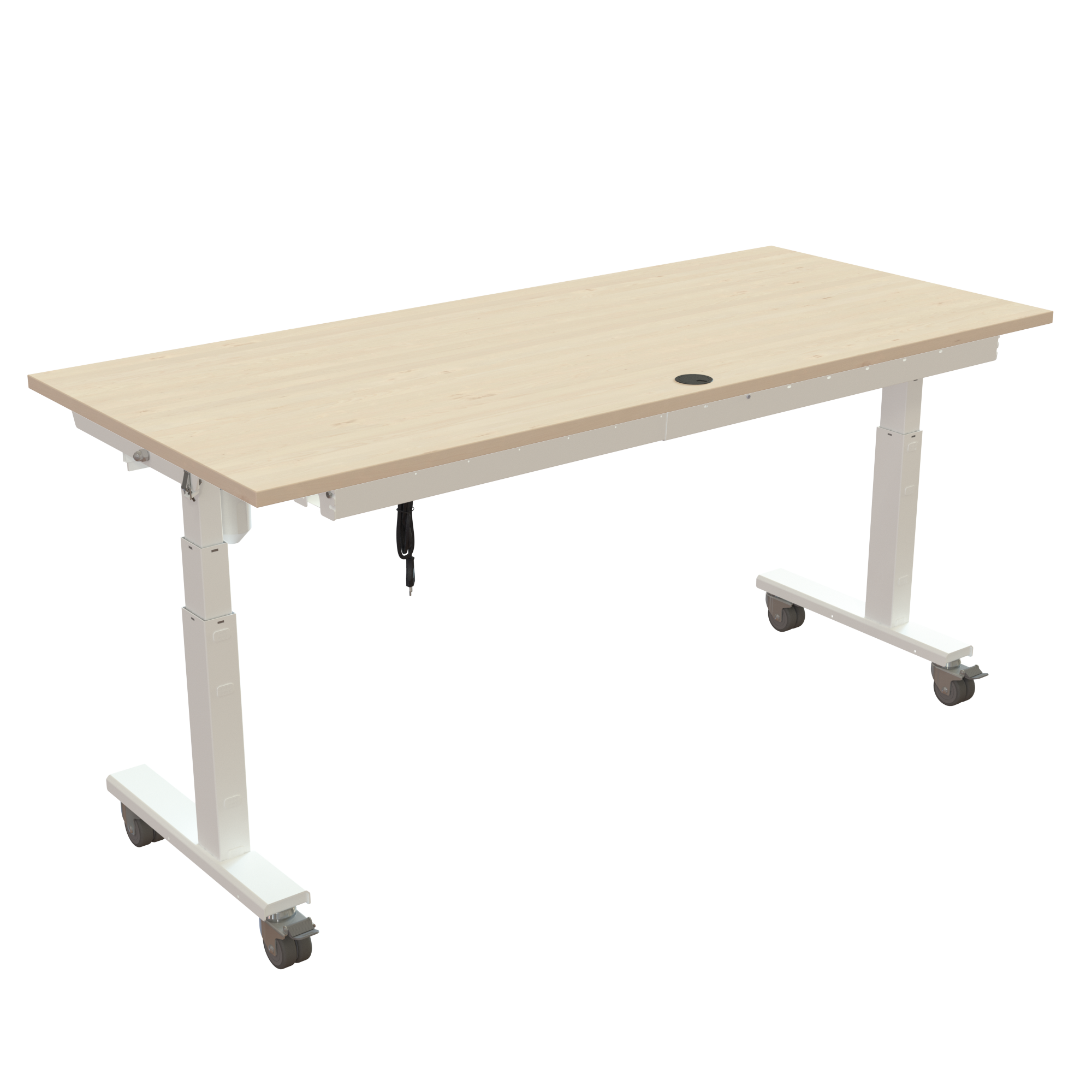

Standing Desk | 180x80 cm | Maple with white frame

576-35 8W172 180-80S3 MM
576-35 8W172 180-80S3 MM
Standing Desk | 180x80 cm | Maple with white frame
Standing Desk | 180x80 cm | Maple with white frame
Standing Desk | 180x80 cm | Maple with white frame
Standing Desk | 180x80 cm | Maple with white frame
$ 1327
Item no.: 576-35 8W172 180-80S3 MM

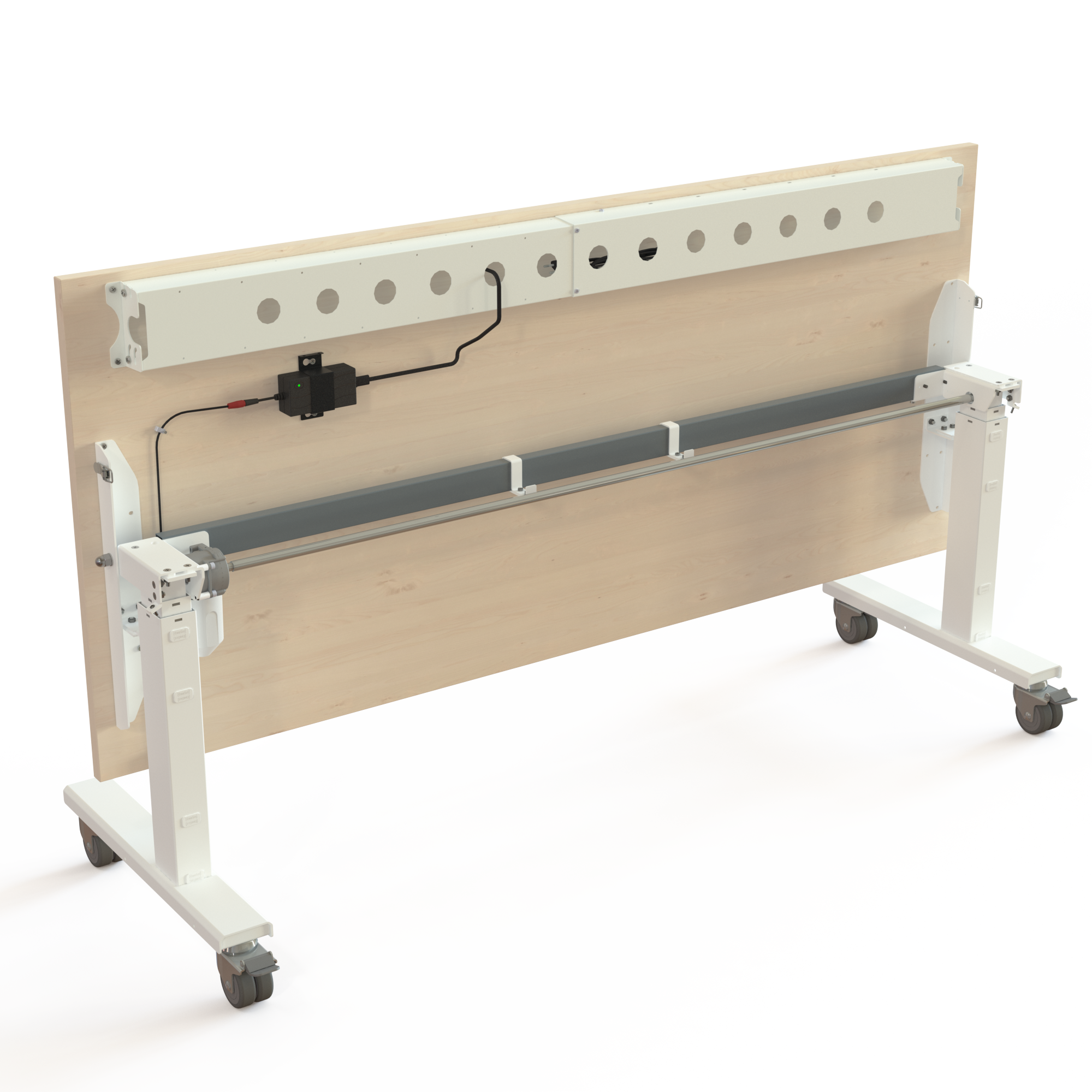

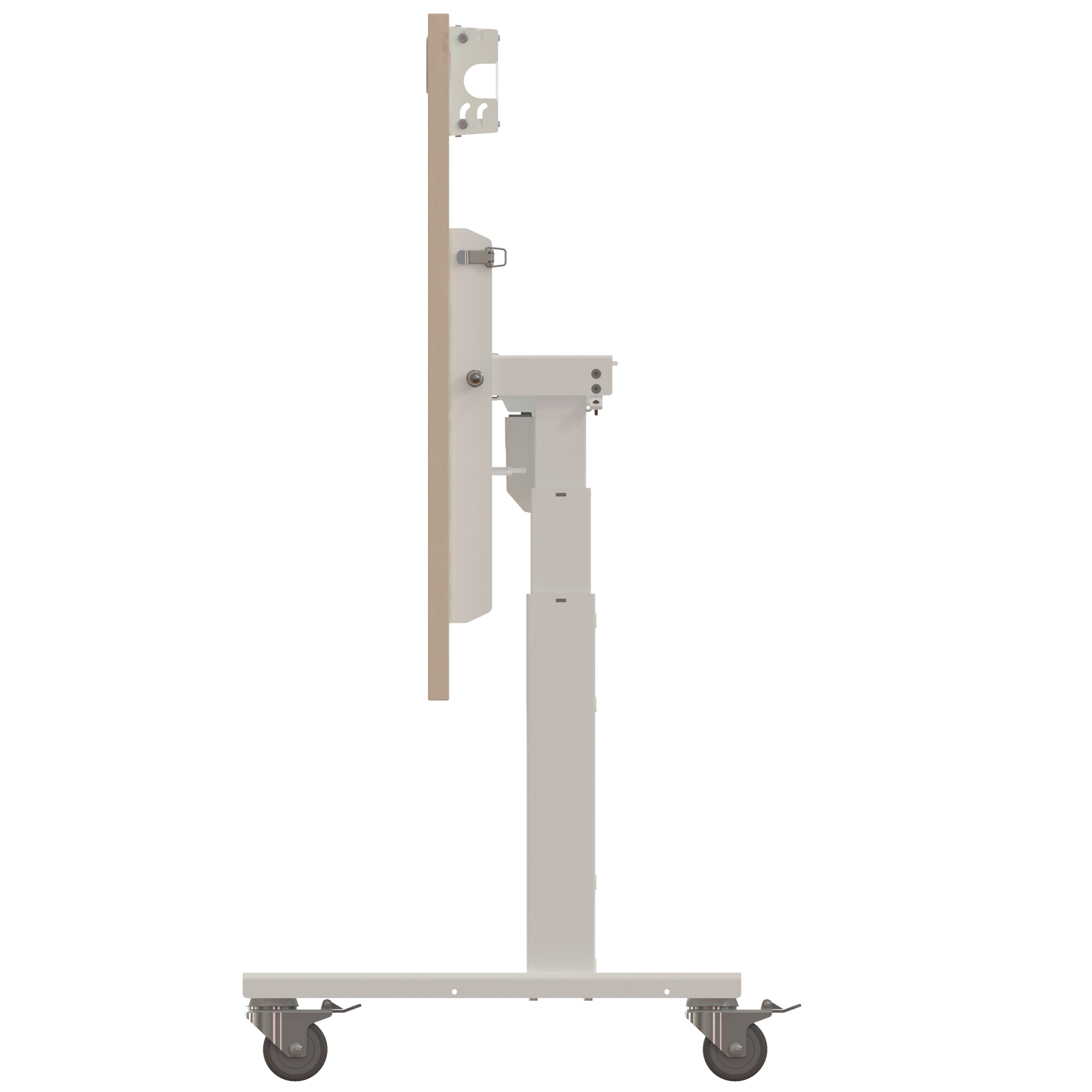

With an assembly time of just 46 min, this electric sit-to-stand training table allows for rapid room setups. It features a 90-degree pivot top that lets multiple units nest together when not in use, supported by heavy-duty casters and a tabletop-mounted cable tray. Offers a height travel range of 26.4-52" and a 220 lbs lifting capacity. Comes equipped with a RAL 9016 (white) frame and a tabletop finished in maple color with an melamine surface finish.

The standard user panel features two tactile arrow buttons for height adjustment. The switch-based design prioritizes durability and dependable performance. Thanks to the tactile controls, the panel can be operated by touch alone. Attaching the 90-degree flip top requires no extra effort beyond standard desk screws. Side clips lock the working surface safely in place.


Table top specifications

  • Dimensions : 70.9 x 31.5"
  • Core material: 1 inch chipboard, classified E0
  • Surface finish: maple melamine, the cable pass-through feature is a standard inclusion.
  • Edges: 0.08 inch ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 26.4-52"
  • Lifting capacity: 220 lbs
  • Operation: The desk comes standard with a two-arrow user panel. Its straightforward switch-based design delivers dependable operation and excellent durability. The tactile arrow buttons can be distinguished by touch, allowing the desk to be adjusted without looking at the control panel.
  • Motor : ConSet’s tested and reliable 1-motor drive solution
Frame Color
White ▼
Tabletop Color
Frame Style
Flip top ▼
Add-Ons
No Add-ons ▼
Control Unit
Table top color:
Frame color:
Table top thickness:
Detailed product information
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
576-35 8W172 180-80S3 MM
Description:
Standing Desk | 180x80 cm | Maple with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XWXXXLift column set, white$ 512,-$ 512,-
1501-96 XWXXXSet for 501-96, RAL 9016, White$ 211,-$ 211,-
1501-XX 8XPOWAPower Box A$ 94,-$ 94,-
1LF750 HXXXLift column set, white$ 66,-$ 66,-
1SQ138890Traversset, 172 cm, neutral$ 82,-$ 82,-
1501-XX CW096-166Universal cable-tray, White$ 68,-$ 68,-
1180-80S3 MMTabletop | 180x80 cm | Maple$ 294,-$ 294,-

Total
$ 1327,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XWXXX77191715,005704142161616
501-96 XWXXX5921129,705704142161432
501-XX 8XPOWA221190,705704142127018
LF750 HXXX242482,605704142124468
SQ138890171534,205704142138892
501-XX CW096-166888153,805704142144800
180-80S3 MM18787426,005704142149881
