Manufacturer of electric height adjustable desks ...

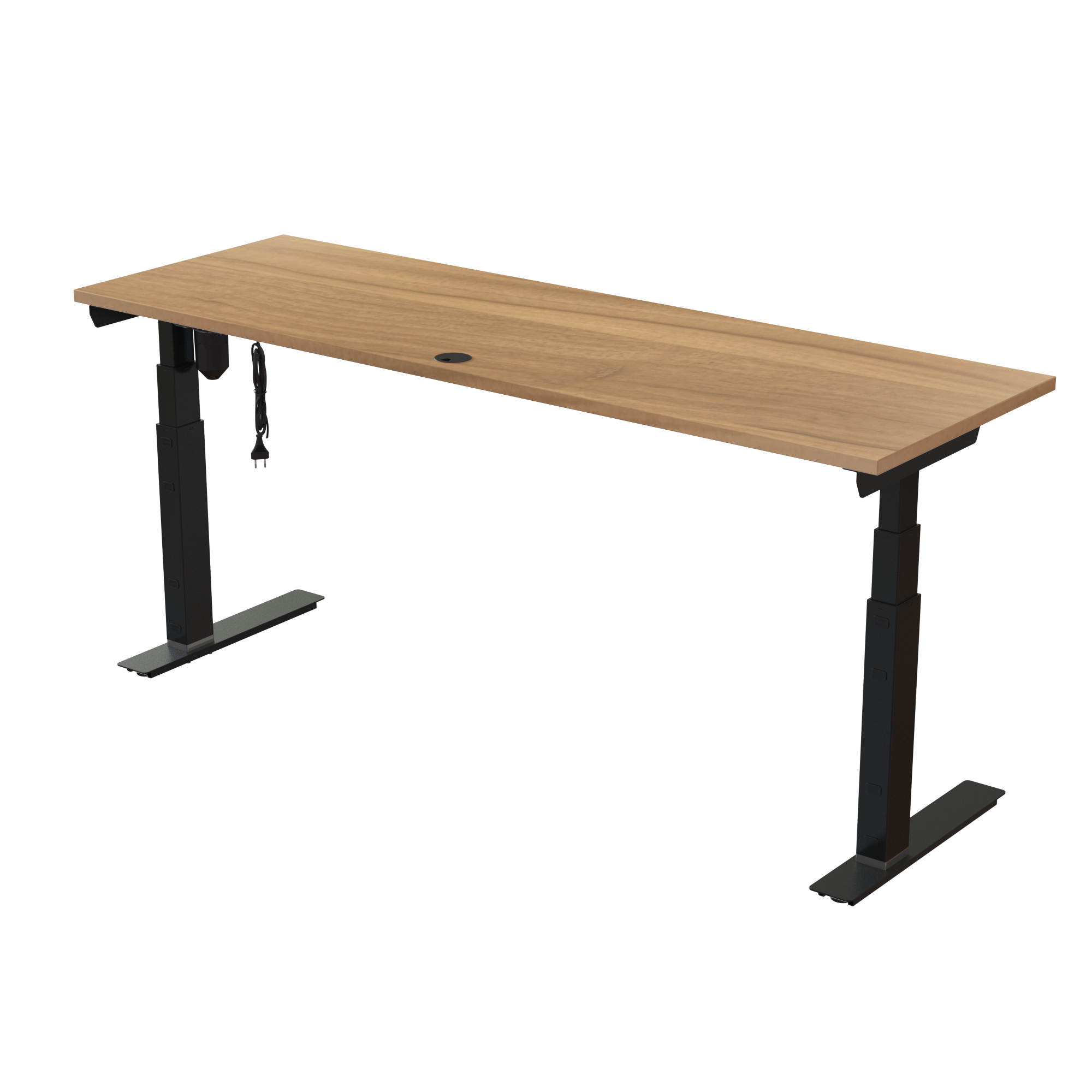

Standing Desk | 180x60 cm | Walnut with black frame

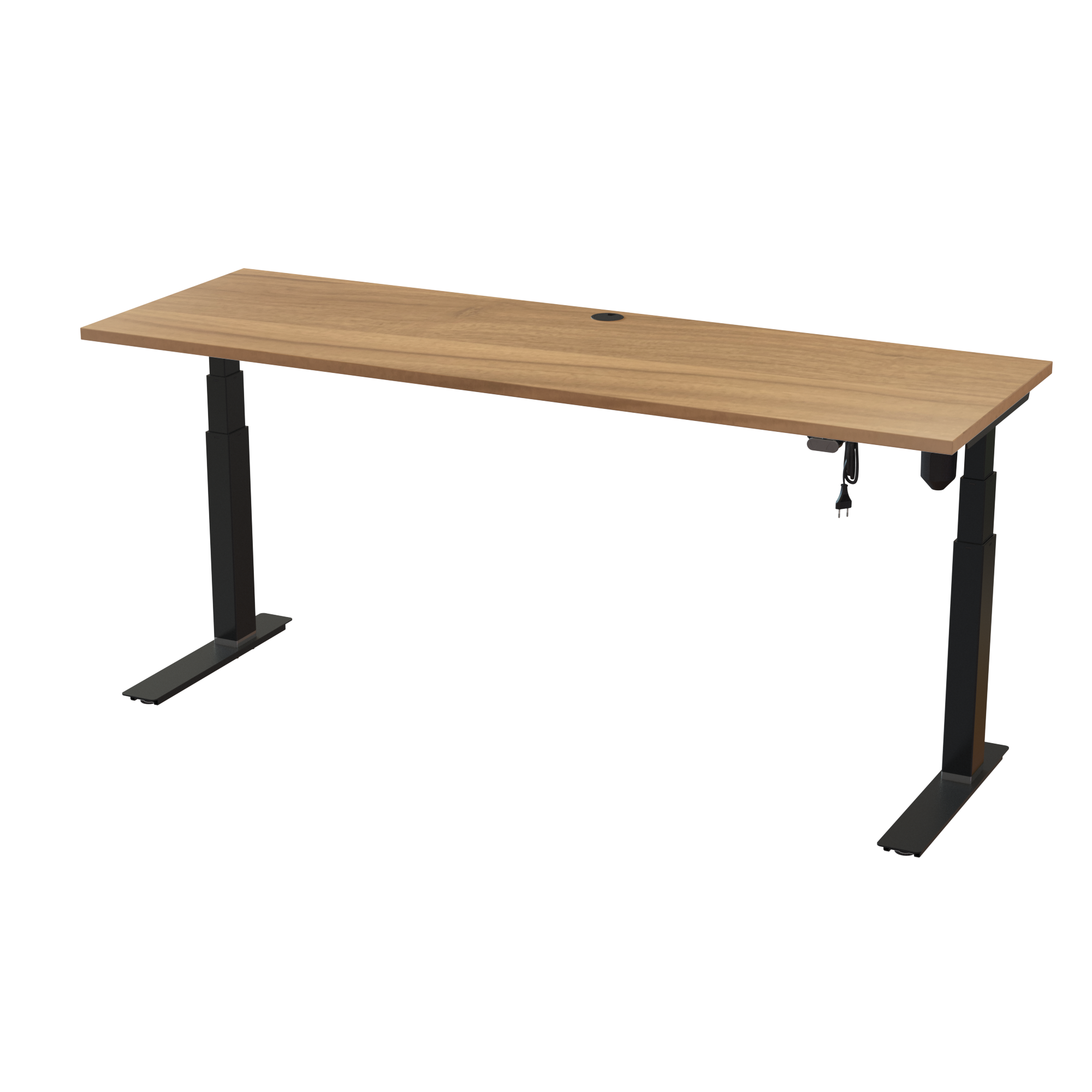

Height-Adjustable Desk for All Ages (Walnut, Black): Low minimum height (22.6-48.7 inch). Lifts 220.5 lbs.
Height-Adjustable Desk for All Ages (Walnut, Black): Low minimum height (22.6-48.7 inch). Lifts 220.5 lbs.
Standing Desk | 180x60 cm | Walnut with black frame
Standing Desk | 180x60 cm | Walnut with black frame
Standing Desk | 180x60 cm | Walnut with black frame
Standing Desk | 180x60 cm | Walnut with black frame
Standing Desk | 180x60 cm | Walnut with black frame
$ 944
Item no.: 531-35 8B172 180-60S3 VM

Experience ergonomic flexibility with a shallow frame footprint in this sit-to-stand C-frame configuration, tailored for the 70.9 x 23.6" tabletop measurement. The column base is fitted with a chrome ring that acts as an elegant design feature. When a higher top reach is needed, attaching the 1.38" chrome ring extends the 22.6-48.7" height stroke (measured without the ring) by 1.38". The desk conforms to ANSI/BIFMA G1-2013 with a height range of 22.6" to 48.7" that accommodates over 95% of users. Built with an RAL 9004 (black) frame color, an walnut tabletop color with an melamine surface type, a strong 220 lbs weight limit, and a straightforward 23 min assembly time.

A standard two-arrow control panel is included with the desk. The simple switching mechanism is designed for reliability and long service life. Tactile arrow buttons make it easy to identify the correct direction by feel alone.


Table top specifications

  • Dimensions : 70.9 x 23.6"
  • Core material: 1 inch chipboard, classified E0
  • Surface finish: walnut melamine, we include a standard desk grommet for cable tidiness.
  • Edges: 0.08 inch ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9004 (black)
  • Height adjustment: 22.6-48.7"
  • Lifting capacity: 220 lbs
  • Operation: Included as standard is a two-arrow control panel with a proven switch-based design. Its uncomplicated construction contributes to long-term reliability. The tactile arrow buttons provide clear feedback and can be operated without looking.
  • Motor: ConSet’s tested and reliably operating 1-motor solution
Frame Color
Tabletop Color
Frame Style
C shape 23.6"
Add-Ons
No add-ons
Control Unit
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
531-35 8B172 180-60S3 VM
Description:
Standing Desk | 180x60 cm | Walnut with black frame
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XBXXXLift column set, black$ 512,-$ 512,-
1501-XX XB055CFeet and brackets C60, black$ 130,-$ 130,-
1501-XX 8XPOWAPower Box A$ 94,-$ 94,-
1SQ138890Traversset, 172 cm, neutral$ 82,-$ 82,-
1180-60S3 VMDesk Top For Standing Desk | 180x60 cm | Walnut$ 126,-$ 126,-

Total
$ 944,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XBXXX77191715,005704142162217
501-XX XB055C681066,705704142162330
501-XX 8XPOWA221190,705704142127018
SQ138890171534,205704142138892
180-60S3 VM18767423,005704142149812
