Standing Desk | 120x80 cm | White with silver frame

Space-Saving Standing Desk (White, Silver): Narrow 23.6-inch depth (47.2x31.5 in). Lifts 220.5 lbs.
Space-Saving Standing Desk (White, Silver): Narrow 23.6-inch depth (47.2x31.5 in). Lifts 220.5 lbs.
Standing Desk | 120x80 cm | White with silver frame
Standing Desk | 120x80 cm | White with silver frame
Standing Desk | 120x80 cm | White with silver frame
Standing Desk | 120x80 cm | White with silver frame
$ 1008
Item no.: 531-35 8S112 120-80S3 WM

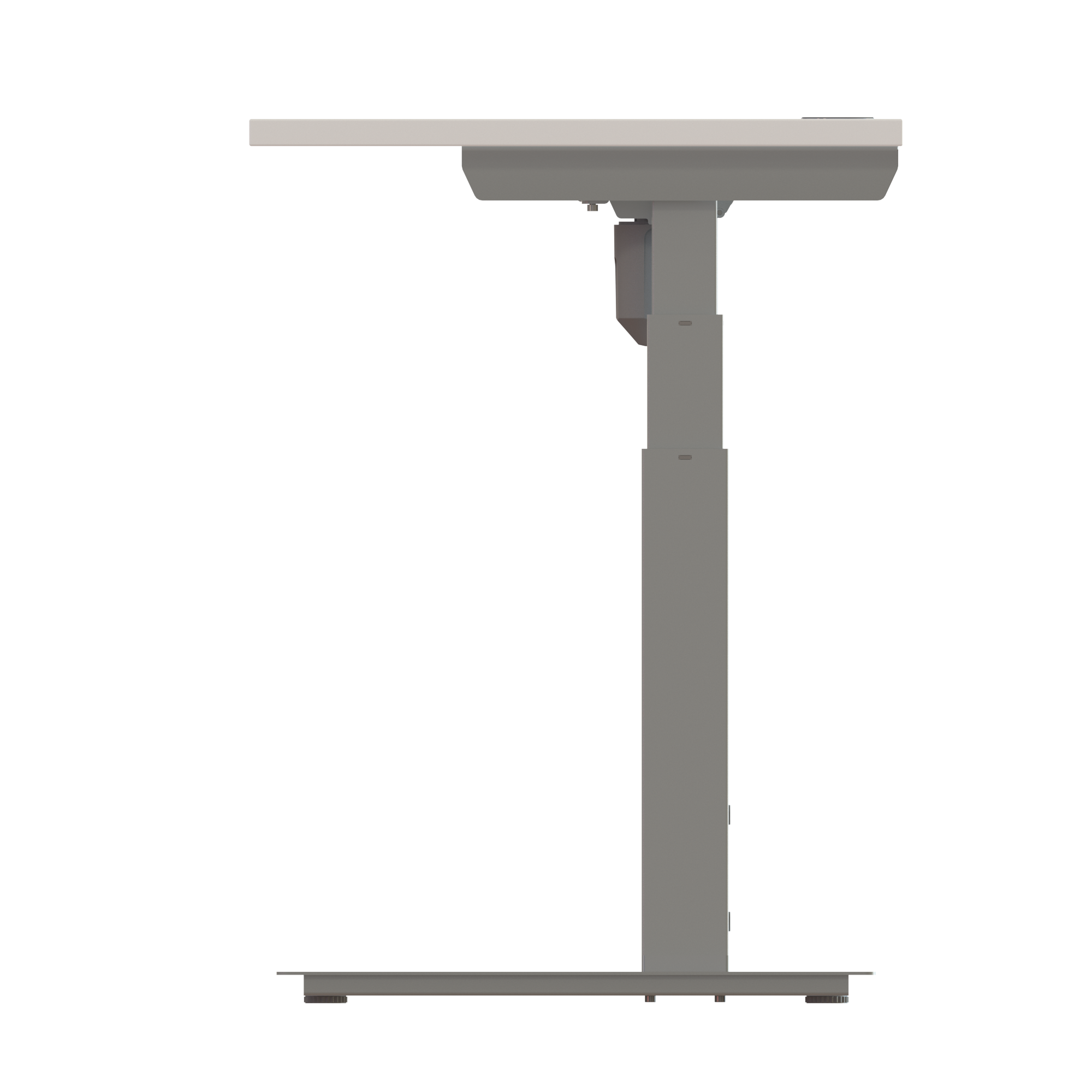

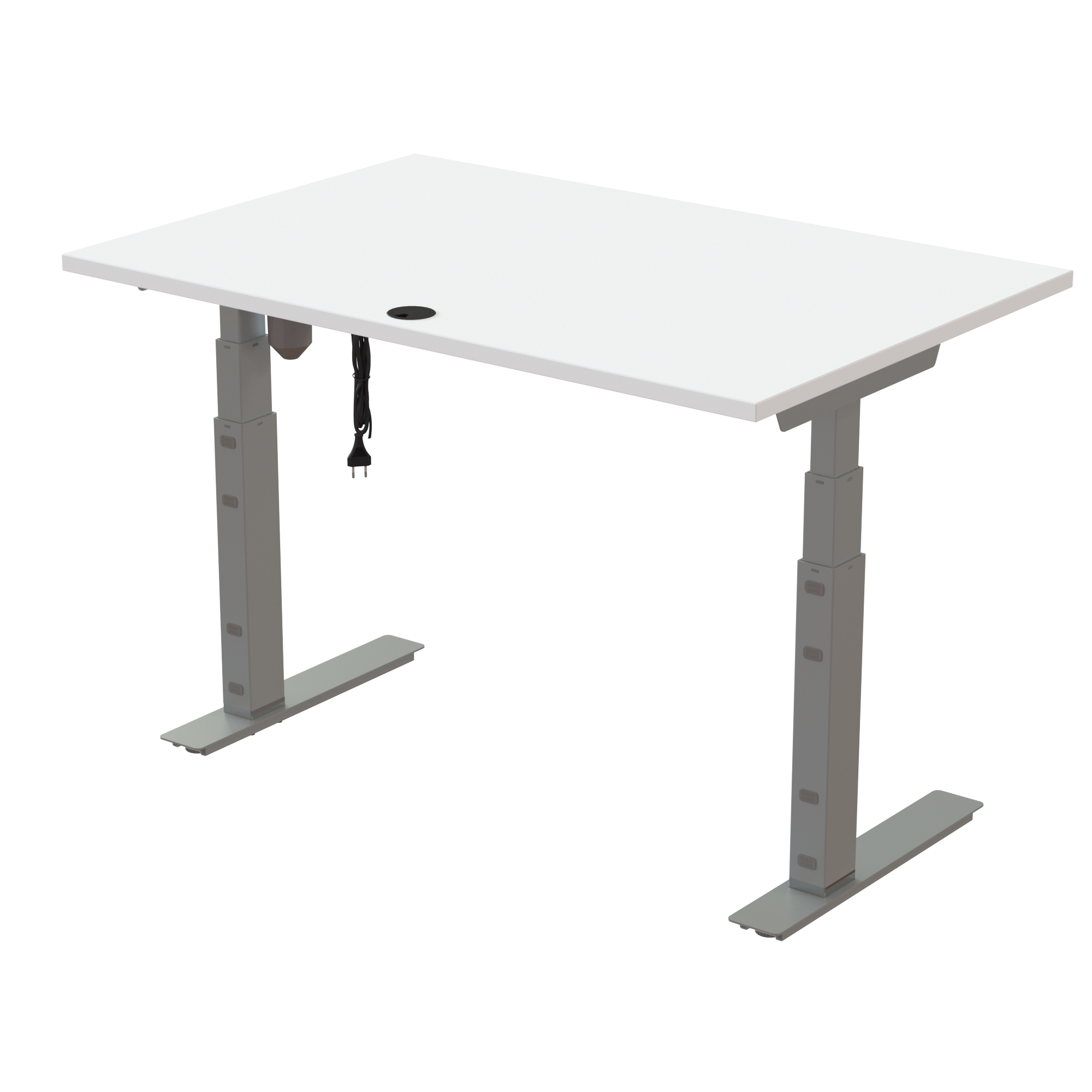

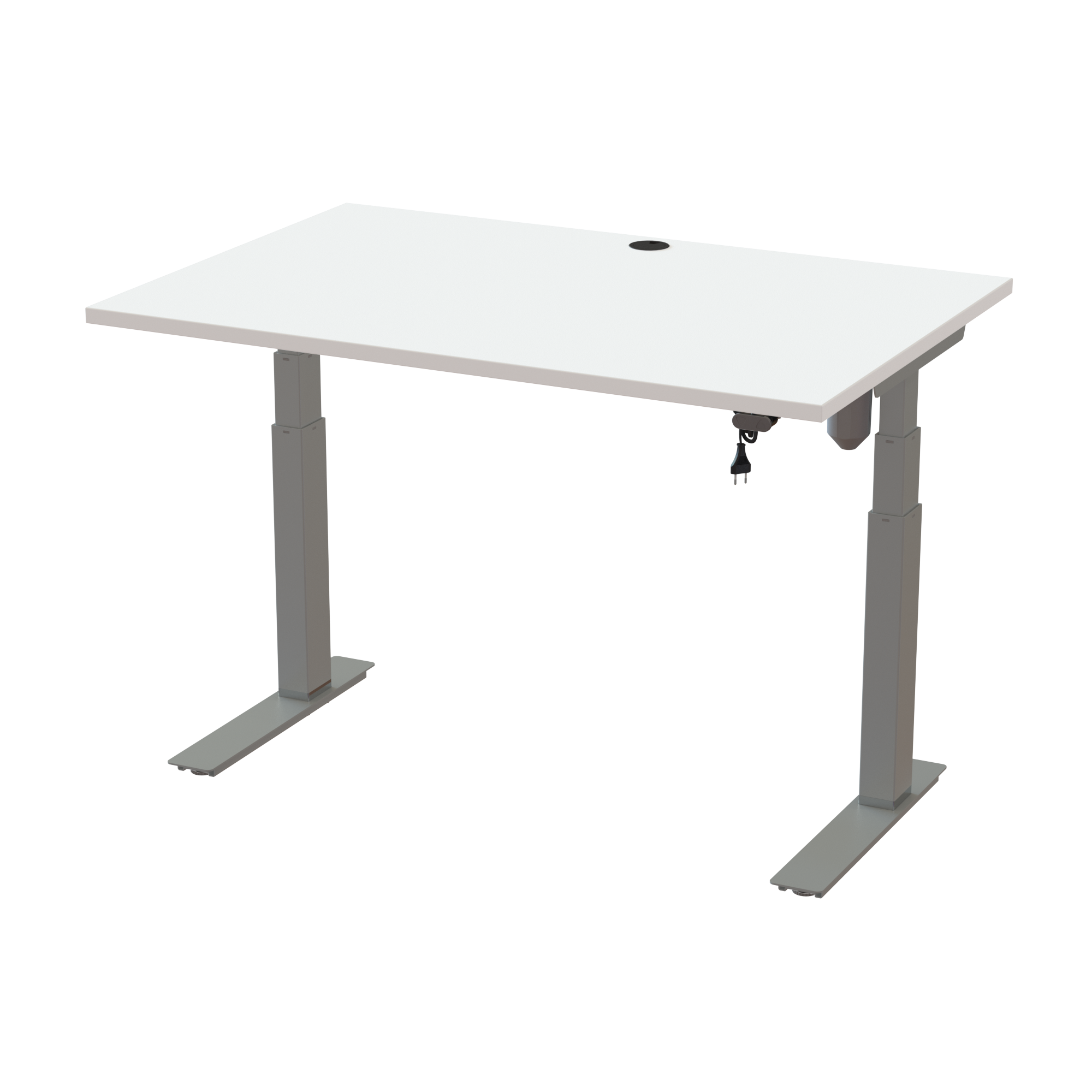

Perfectly suited for a reduced tabletop depth, this space-saving C-frame sit-stand desk maximises legroom despite the narrower foot footprint. The off-centre column ensures an open, airy feel underneath, with a foot length matched directly to the 47.2 x 31.5" tabletop dimensions. A sleek chrome ring at the base provides a high-end design detail, which can also be attached to extend the 22.6-48.7" height adjustment stroke (measured without the ring) by 1.38". The desk conforms to ANSI/BIFMA G1-2013 with a height range of 22.6" to 48.7" that accommodates over 95% of users. Features an RAL 9006 (silver) frame color, an white tabletop color with an melamine surface material, an 220 lbs load capacity, and an 21 min assembly time.

The desk includes a standard two-button arrow controller. The uncomplicated switch-based design is engineered for durability and consistent operation. Tactile markings on the buttons make it possible to adjust the desk without looking down.


Table top specifications

  • Dimensions : 47.2 x 31.5"
  • Core material: 1 inch chipboard, classified E0
  • Surface finish: white melamine, the tabletop It is fitted with a plastic grommet for cable entry.
  • Edges: 0.08 inch ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9006 (silver)
  • Height adjustment: 22.6-48.7"
  • Lifting capacity: 220 lbs
  • Operation: A standard two-arrow control panel is included with the desk. The simple switching mechanism is designed for reliability and long service life. Tactile arrow buttons make it easy to identify the correct direction by feel alone.
  • Motor: ConSet’s tested and reliably operating 1-motor solution
Frame Color
Silver
Frame Style
C shape 23.6"
Add-Ons
No add-ons
Control Unit
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
531-35 8S112 120-80S3 WM
Description:
Standing Desk | 120x80 cm | White with silver frame
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XSXXXLift column set, silver$ 512,-$ 512,-
1501-XX XS055CFeet and brackets C60, silver$ 130,-$ 130,-
1501-XX 8XPOWAPower Box A$ 94,-$ 94,-
1SQ137690Traversset, 112 cm, neutral$ 82,-$ 82,-
1120-80S3 WMDesk Top For Standing Desk | 120x80 cm | White$ 190,-$ 190,-

Total
$ 1008,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XSXXX77191715,005704142162484
501-XX XS055C681066,705704142162262
501-XX 8XPOWA221190,705704142127018
SQ137690111532,305704142137697
120-80S3 WM12787417,005704142132920
