Standing Desk | 100x80 cm | Walnut with silver frame

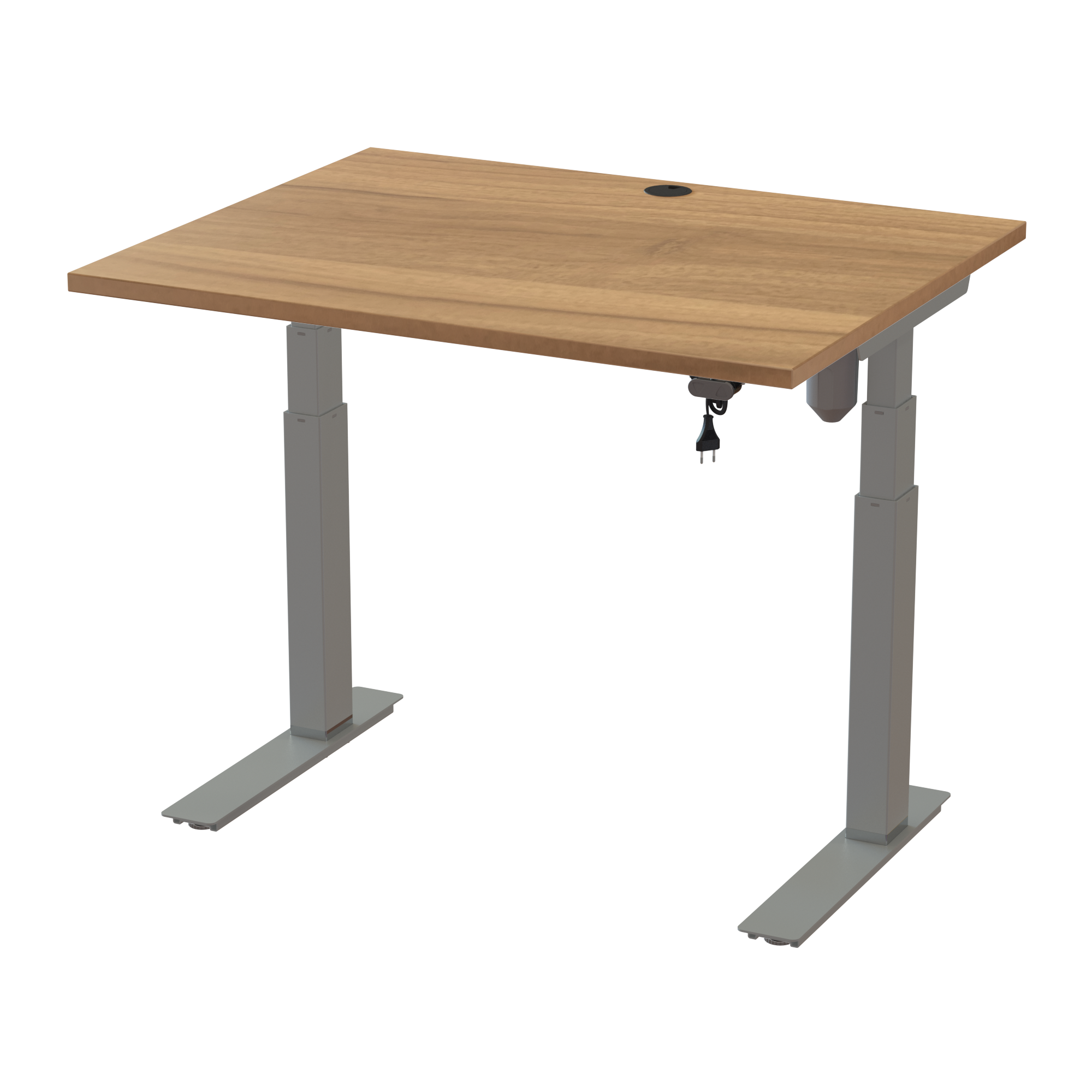

Space-Saving Standing Desk (Walnut, Silver): Narrow 23.6-inch depth (70.9x31.5 in). Lifts 220.5 lbs.
Space-Saving Standing Desk (Walnut, Silver): Narrow 23.6-inch depth (70.9x31.5 in). Lifts 220.5 lbs.

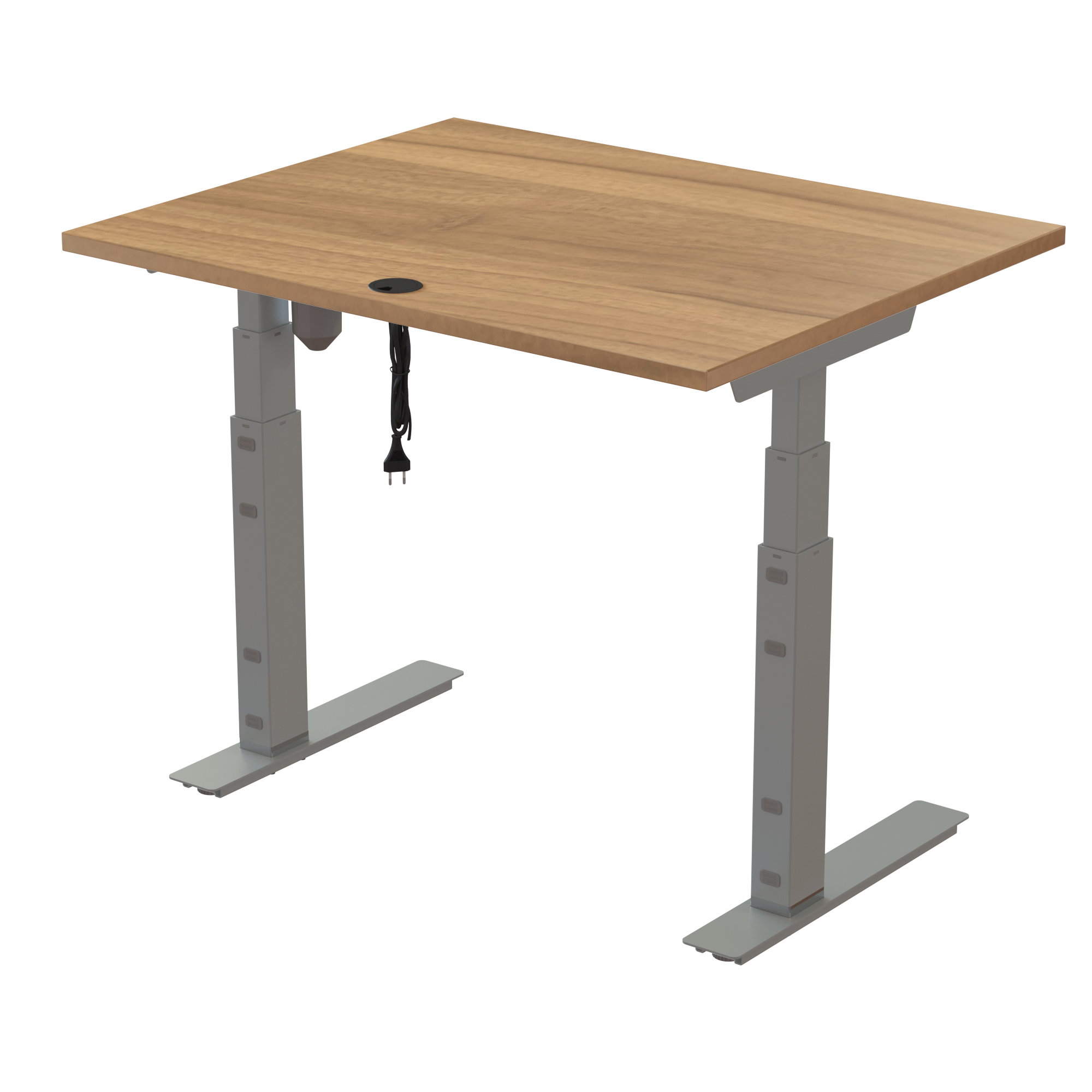

Standing Desk | 100x80 cm | Walnut with silver frame
Standing Desk | 100x80 cm | Walnut with silver frame
Standing Desk | 100x80 cm | Walnut with silver frame
Standing Desk | 100x80 cm | Walnut with silver frame
Standing Desk | 100x80 cm | Walnut with silver frame
$ 1014
Item no.: 531-35 8S092 100-80S3 VM

Perfectly suited for a reduced tabletop depth, this space-saving C-frame sit-stand desk maximises legroom despite the narrower foot footprint. The off-centre column ensures an open, airy feel underneath, with a foot length matched directly to the 39.4 x 31.5" tabletop dimensions. A sleek chrome ring at the base provides a high-end design detail, which can also be attached to extend the 22.6-48.7" height adjustment stroke (measured without the ring) by 1.38". The desk conforms to ANSI/BIFMA G1-2013 with a height range of 22.6" to 48.7" that accommodates over 95% of users. Features an RAL 9006 (silver) frame color, an walnut tabletop color with an melamine surface material, an 220 lbs load capacity, and an 23 min assembly time.

The standard control panel is equipped with two tactile arrow buttons. Its simple internal design ensures reliable performance over many years of use. Users can identify the up and down controls by touch, enabling intuitive operation.


Table top specifications

  • Dimensions : 39.4 x 31.5"
  • Core material: 1 inch chipboard, classified E0
  • Surface finish: walnut melamine, we include a standard desk grommet for cable tidiness.
  • Edges: 0.08 inch ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9006 (silver)
  • Height adjustment: 22.6-48.7"
  • Lifting capacity: 220 lbs
  • Operation: The desk is equipped with a standard two-arrow user panel. Built around a simple switch-based concept, it offers reliable everyday operation and outstanding durability. The tactile controls allow users to locate the up and down functions without visual guidance.
  • Motor: ConSet’s stable 1-motor mechanism with demonstrated reliability
Frame Color
Silver
Tabletop Color
Frame Style
C shape 23.6"
Add-Ons
No add-ons
Control Unit
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
531-35 8S092 100-80S3 VM
Description:
Standing Desk | 100x80 cm | Walnut with silver frame
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XSXXXLift column set, silver$ 512,-$ 512,-
1501-XX XS055CFeet and brackets C60, silver$ 130,-$ 130,-
1501-XX 8XPOWAPower Box A$ 94,-$ 94,-
1SQ138890Traversset, 172 cm, neutral$ 82,-$ 82,-
1180-80S3 VMDesk Top For Standing Desk | 180x80 cm | Walnut$ 196,-$ 196,-

Total
$ 1014,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XSXXX77191715,005704142162484
501-XX XS055C681066,705704142162262
501-XX 8XPOWA221190,705704142127018
SQ138890171534,205704142138892
180-80S3 VM18787426,005704142149805
