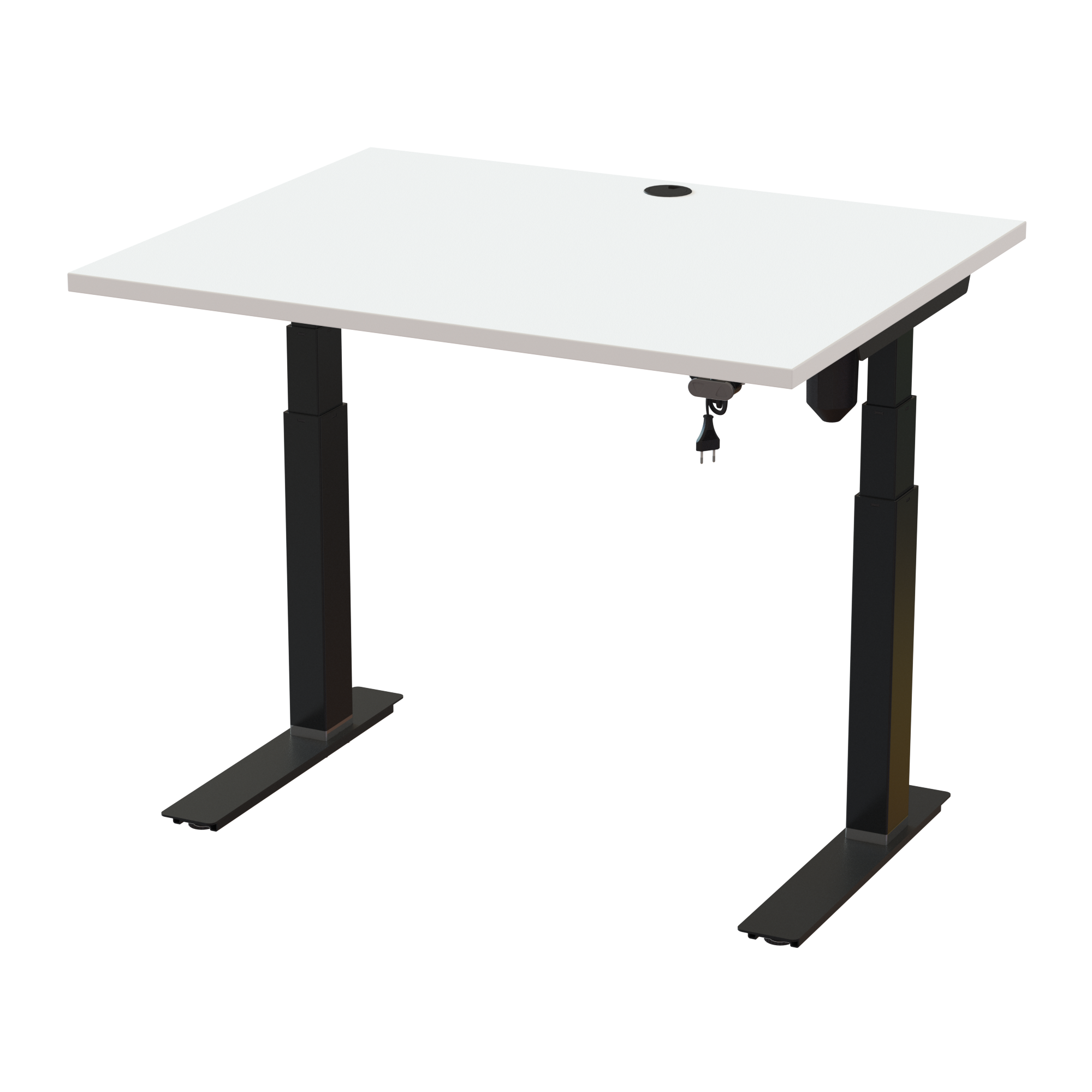

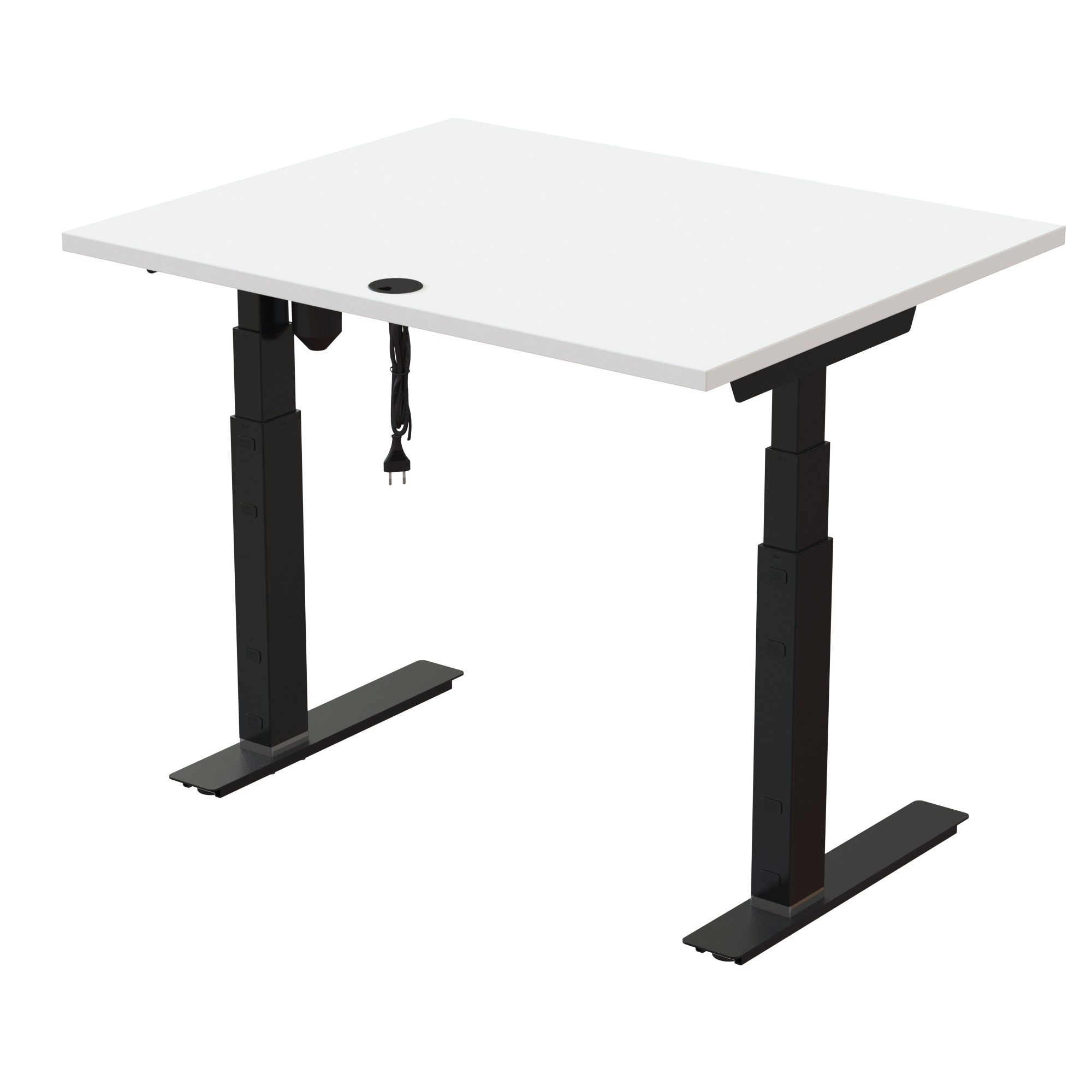

Standing Desk | 100x80 cm | White with black frame

Space-Saving Standing Desk (Walnut, Silver): Narrow 23.6-inch depth (70.9x31.5 in). Lifts 220.5 lbs.
Space-Saving Standing Desk (Walnut, Silver): Narrow 23.6-inch depth (70.9x31.5 in). Lifts 220.5 lbs.
Standing Desk | 100x80 cm | White with black frame
Standing Desk | 100x80 cm | White with black frame
Standing Desk | 100x80 cm | White with black frame
Standing Desk | 100x80 cm | White with black frame
Standing Desk | 100x80 cm | White with black frame
$ 1014
Item no.: 531-35 8B092 100-80S3 WM

Experience ergonomic flexibility with a shallow frame footprint in this sit-to-stand C-frame configuration, tailored for the 39.4 x 31.5" tabletop measurement. The column base is fitted with a chrome ring that acts as an elegant design feature. When a higher top reach is needed, attaching the 1.38" chrome ring extends the 22.6-48.7" height stroke (measured without the ring) by 1.38". The desk conforms to ANSI/BIFMA G1-2013 with a height range of 22.6" to 48.7" that accommodates over 95% of users. Built with an RAL 9004 (black) frame color, an white tabletop color with an melamine surface type, a strong 220 lbs weight limit, and a straightforward 23 min assembly time.

The desk comes with a standard tactile two-arrow user panel. The switch-based control system is designed for reliability, ease of use and long-term durability. The raised arrow buttons can be recognized by feel, allowing effortless adjustment without visual attention.


Table top specifications

  • Dimensions : 39.4 x 31.5"
  • Core material: 1 inch chipboard, classified E0
  • Surface finish: white melamine, a cable port is supplied as standard.
  • Edges: 0.08 inch ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9004 (black)
  • Height adjustment: 22.6-48.7"
  • Lifting capacity: 220 lbs
  • Operation: A standard two-arrow control panel is included with the desk. The simple switching mechanism is designed for reliability and long service life. Tactile arrow buttons make it easy to identify the correct direction by feel alone.
  • Motor: ConSet’s reliable and thoroughly tested 1-motor system
Frame Color
Frame Style
C shape 23.6"
Add-Ons
No add-ons
Control Unit
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
531-35 8B092 100-80S3 WM
Description:
Standing Desk | 100x80 cm | White with black frame
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XBXXXLift column set, black$ 512,-$ 512,-
1501-XX XB055CFeet and brackets C60, black$ 130,-$ 130,-
1501-XX 8XPOWAPower Box A$ 94,-$ 94,-
1SQ138890Traversset, 172 cm, neutral$ 82,-$ 82,-
1180-80S3 VMDesk Top For Standing Desk | 180x80 cm | Walnut$ 196,-$ 196,-

Total
$ 1014,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XBXXX77191715,005704142162217
501-XX XB055C681066,705704142162330
501-XX 8XPOWA221190,705704142127018
SQ138890171534,205704142138892
180-80S3 VM18787426,005704142149805
