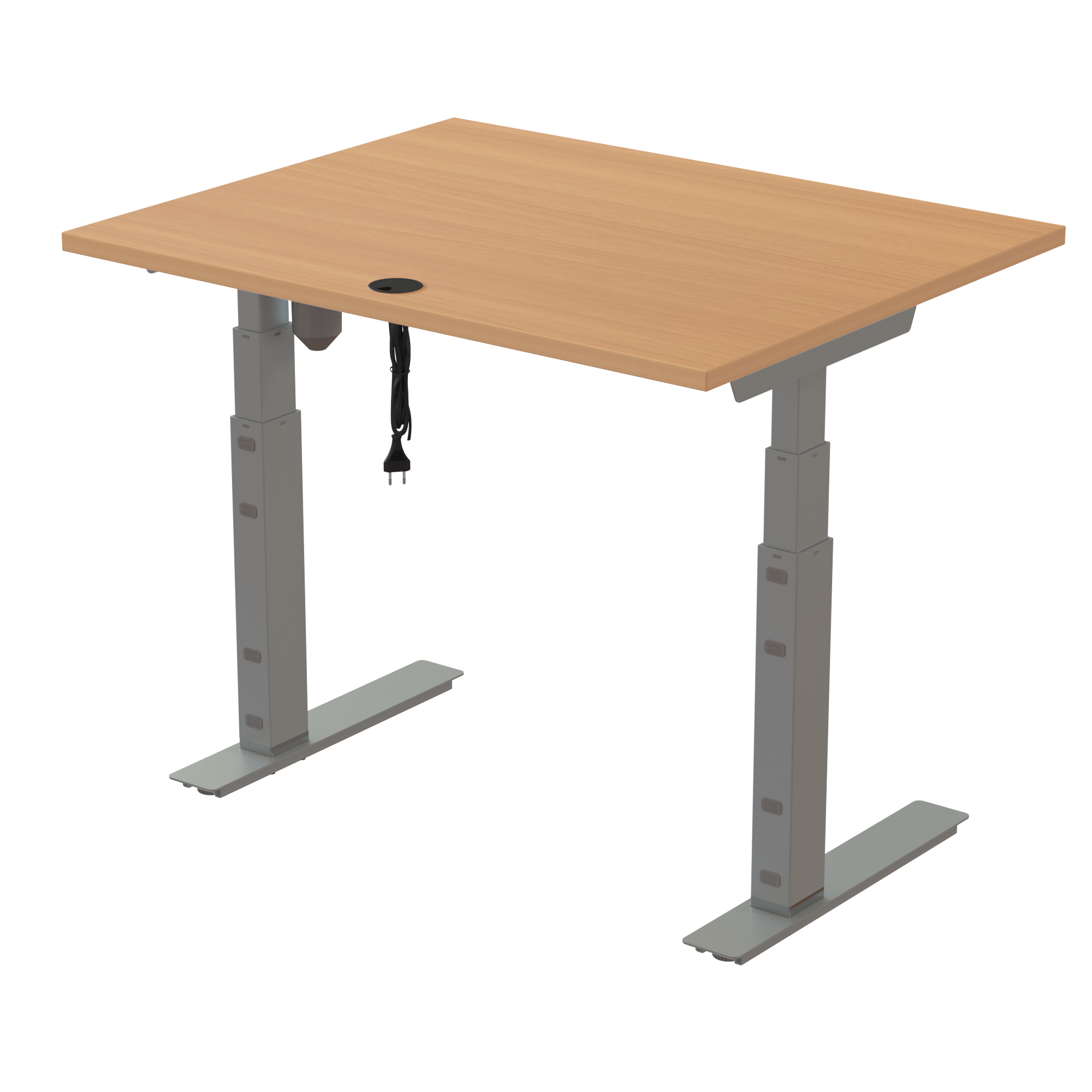

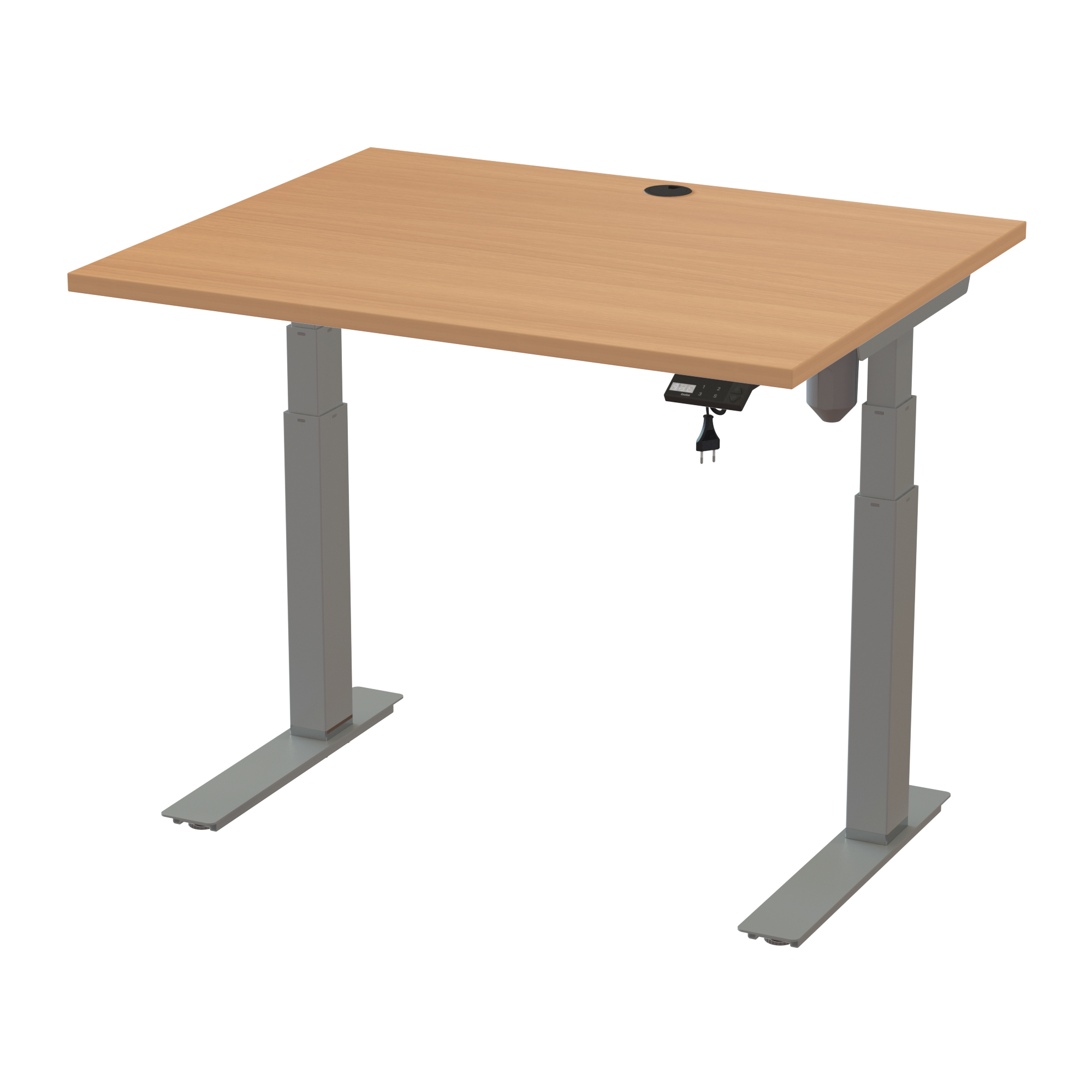

Standing Desk | 100x80 cm | Beech with silver frame

Space-Saving Standing Desk (Walnut, Silver): Narrow 23.6-inch depth (70.9x31.5 in). Lifts 220.5 lbs.
Space-Saving Standing Desk (Walnut, Silver): Narrow 23.6-inch depth (70.9x31.5 in). Lifts 220.5 lbs.
Standing Desk | 100x80 cm | Beech with silver frame
Standing Desk | 100x80 cm | Beech with silver frame
Standing Desk | 100x80 cm | Beech with silver frame
Standing Desk | 100x80 cm | Beech with silver frame
$ 1078
Item no.: 431-35 8S092 100-80S3 BM

Experience ergonomic flexibility with a shallow frame footprint in this sit-to-stand C-frame configuration, tailored for the 39.4 x 31.5" tabletop measurement. The column base is fitted with a chrome ring that acts as an elegant design feature. When a higher top reach is needed, attaching the 1.38" chrome ring extends the 22.6-48.7" height stroke (measured without the ring) by 1.38". The desk conforms to ANSI/BIFMA G1-2013 with a height range of 22.6" to 48.7" that accommodates over 95% of users. Built with an RAL 9006 (silver) frame color, an beech tabletop color with an melamine surface type, a strong 220 lbs weight limit, and a straightforward 20 min assembly time.

The desk uses a digital controller with three memory presets and automatic safety shut-off. Its tactile arrow buttons ensure simple, intuitive adjustments by touch.


Table top specifications

  • Dimensions : 39.4 x 31.5"
  • Core material: 1 inch chipboard, classified E0
  • Surface finish: beech melamine, the plastic grommet for cables is a standard inclusion.
  • Edges: 0.08 inch ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9006 (silver)
  • Height adjustment: 22.6-48.7"
  • Lifting capacity: 220 lbs
  • Operation: The digital controller provides three memory positions together with collision and anti-tilt protection. Thanks to the tactile arrow buttons, the desk can be adjusted by feel alone.
  • Motor: ConSet’s robust and proven 1-motor solution
Frame Color
Silver
Frame Style
C shape 23.6"
Add-Ons
No add-ons
Control Unit
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
431-35 8S092 100-80S3 BM
Description:
Standing Desk | 100x80 cm | Beech with silver frame
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XSXXXLift column set, silver$ 512,-$ 512,-
1501-XX XS055CFeet and brackets C60, silver$ 130,-$ 130,-
1501-XX 8XPOWSPower box S$ 205,-$ 205,-
1SQ141480Traversset, 92 cm, neutral$ 82,-$ 82,-
1100-80S3 BMDesk Top For Standing Desk | 100x80 cm | Beech$ 149,-$ 149,-

Total
$ 1078,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XSXXX77191715,005704142162484
501-XX XS055C681066,705704142162262
501-XX 8XPOWS25971,005704142161876
SQ14148091531,895704142141489
100-80S3 BM10787415,005704142132883
