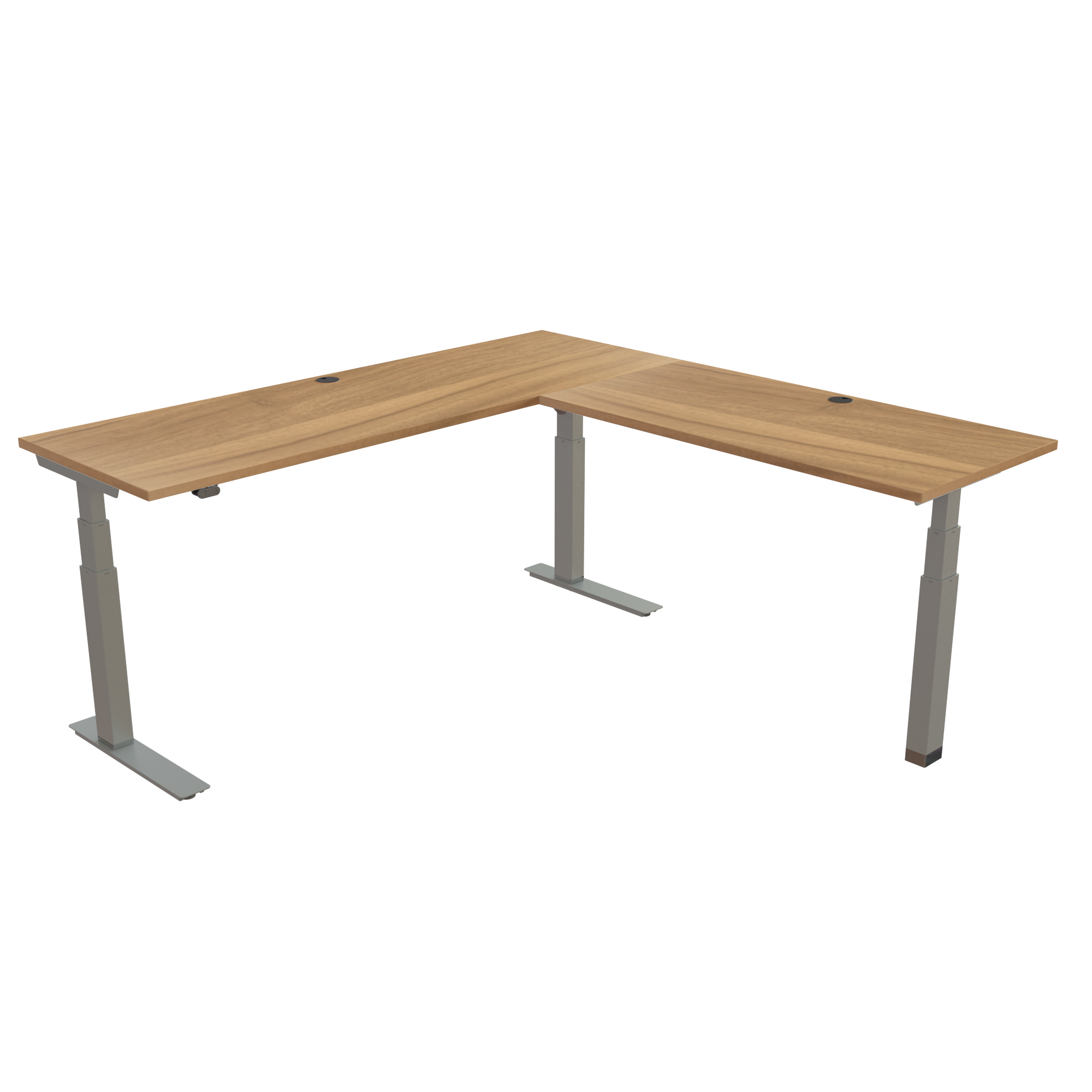

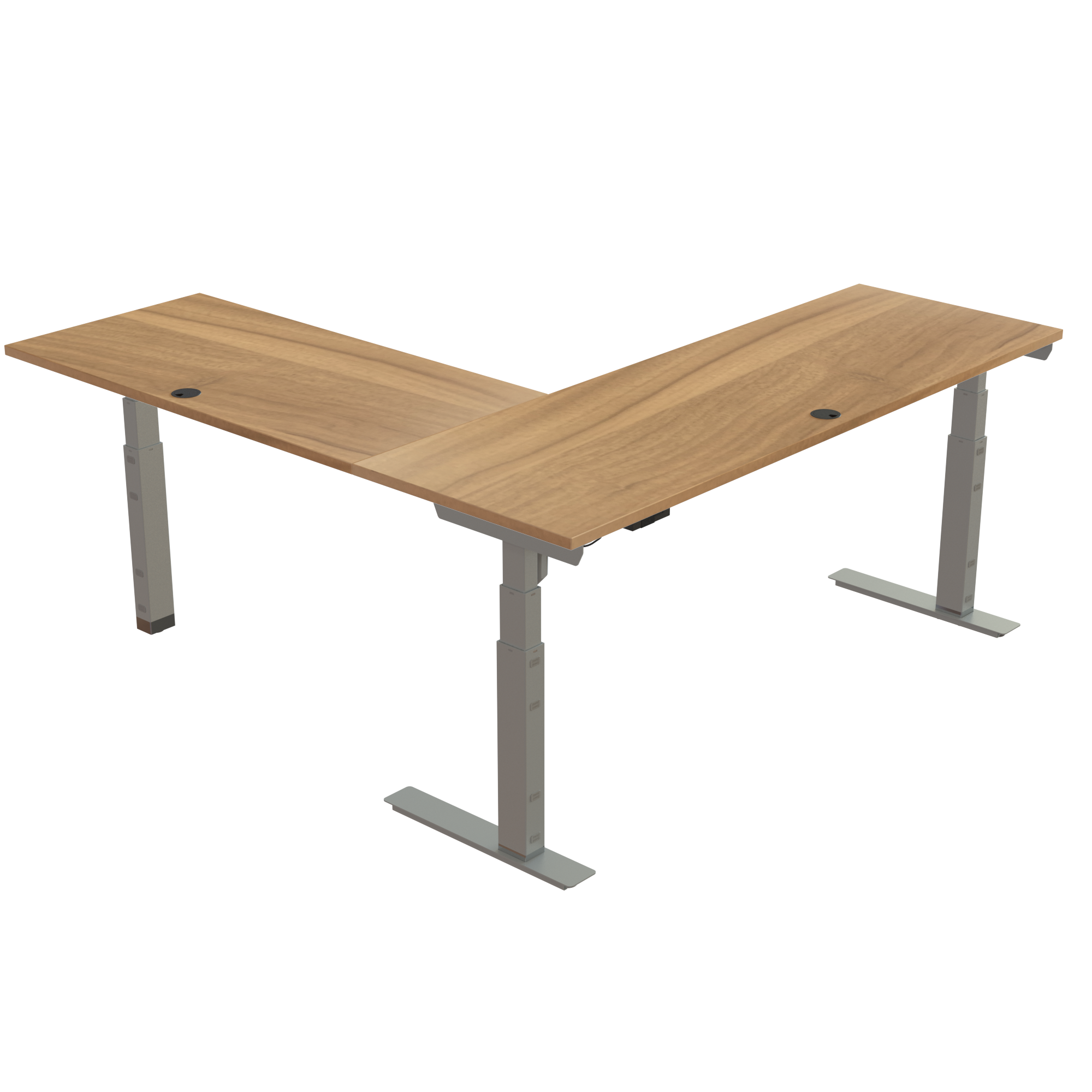

Standing Desk | 180x180 cm | Walnut with silver frame

561-35 8S172-172A 180-60S3 120-60S3 VM
561-35 8S172-172A 180-60S3 120-60S3 VM
Standing Desk | 180x180 cm | Walnut with silver frame
Standing Desk | 180x180 cm | Walnut with silver frame
Standing Desk | 180x180 cm | Walnut with silver frame
$ 1576
Item no.: 561-35 8S172-172A 180-60S3 120-60S3 VM

Maximum workspace and corner configurations are easily achieved using an L-shaped standing desk that combines an tabletop in 70.9 x 70.9" sizing with an RAL 9006 (silver) powder-coated frame. Standard office workloads are handled effortlessly thanks to an 220 lbs heavy-duty load capacity, and assembly wraps up rapidly in just 34 min. The layout consists of two main legs with C-shaped feet alongside a third leg supported by a removable chrome block. The total stroke is 26.4-52" without the chrome block, while equipping it increases the desk stroke by 1.38 in as the third leg rests on the block. Plus, the desk satisfies ANSI/BIFMA G1-2013 height requirements, and fits over 95% of users.

The desk comes standard with a two-arrow user panel. Its straightforward switch-based design delivers dependable operation and excellent durability. The tactile arrow buttons can be distinguished by touch, allowing the desk to be adjusted without looking at the control panel.


Table top specifications

  • Dimensions : 70.9 x 70.9"
  • Core material:
  • Surface finish: , it features a standard plastic grommet.
  • Edges:

Frame specifications

  • Material/finish: Powdercoated steel RAL 9006 (silver)
  • Height adjustment: 26.4-52"
  • Lifting capacity: 220 lbs
  • Operation: The desk comes with a standard tactile two-arrow user panel. The switch-based control system is designed for reliability, ease of use and long-term durability. The raised arrow buttons can be recognized by feel, allowing effortless adjustment without visual attention.
  • Motor : ConSet’s robust and proven 1-motor solution
Frame Color
▼
Tabletop Color
▼
Add-Ons
▼
Control Unit
▼
Table top color:
Frame color:
Table top thickness:
Detailed product information
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
561-35 8S172-172A 180-60S3 120-60S3 VM
Description:
Standing Desk | 180x180 cm | Walnut with silver frame
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XSXXXLift column set, silver$ 512,-$ 512,-
1501-XX XS055CFeet and brackets C60, silver$ 130,-$ 130,-
1XXX-35 XSXXXA3rd leg, 3-column, silver$ 237,-$ 237,-
1501-XX 8XPOWAPower Box A$ 94,-$ 94,-
1SQ162890Traversset, 3-leg, W172cm, neutral, 35$ 234,-$ 234,-
1SQ141820Traversset, 142 cm, neutral$ 82,-$ 82,-
1180-60S3 VMDesk Top For Standing Desk | 180x60 cm | Walnut$ 126,-$ 126,-
1120-60S3 VMDesk Top For Standing Desk | 120x60 cm | Walnut$ 161,-$ 161,-

Total
$ 1576,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XSXXX77191715,005704142162484
501-XX XS055C681066,705704142162262
XXX-35 XSXXXA58191610,805704142163030
501-XX 8XPOWA221190,705704142127018
SQ1628901451875,905704142162897
SQ141820141533,305704142141823
180-60S3 VM18767423,005704142149812
120-60S3 VM12767413,005704142149775
