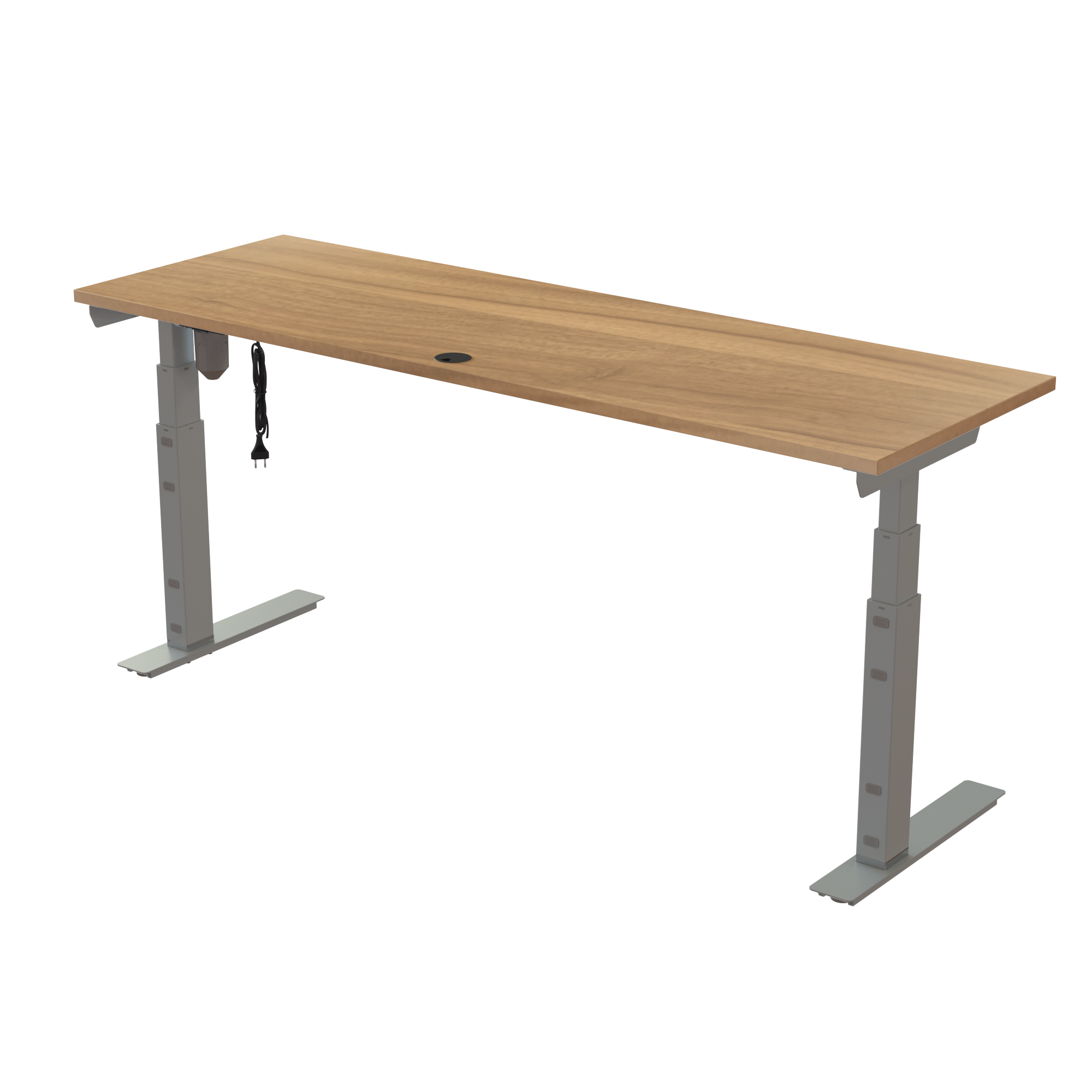

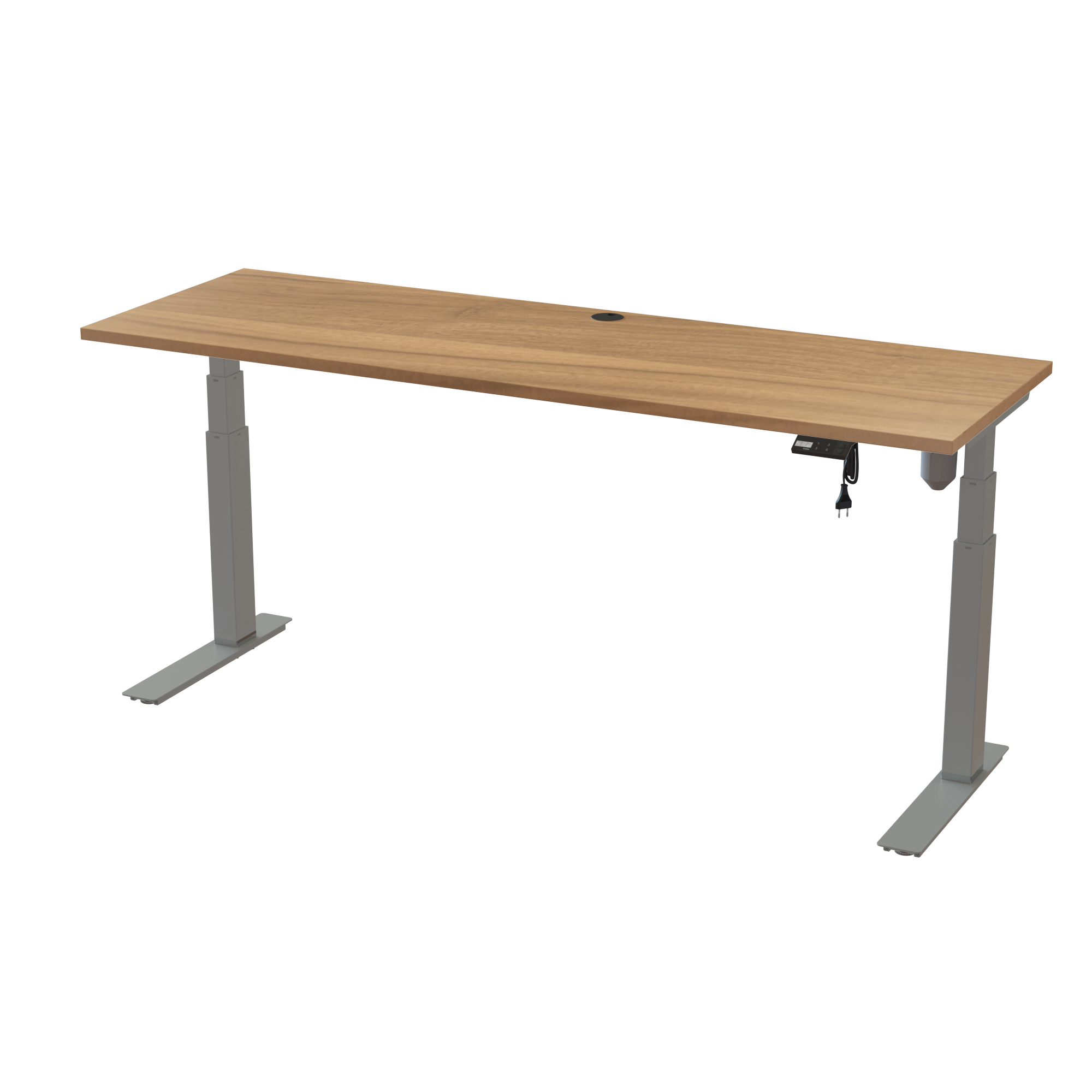

Standing Desk | 180x60 cm | Walnut with silver frame

Height-Adjustable Desk for All Ages (Walnut, Silver): Low minimum height (22.6-48.7 inch). Lifts 220.5 lbs.
Height-Adjustable Desk for All Ages (Walnut, Silver): Low minimum height (22.6-48.7 inch). Lifts 220.5 lbs.
Standing Desk | 180x60 cm | Walnut with silver frame
Standing Desk | 180x60 cm | Walnut with silver frame
Standing Desk | 180x60 cm | Walnut with silver frame
Standing Desk | 180x60 cm | Walnut with silver frame
Standing Desk | 180x60 cm | Walnut with silver frame
$ 1055
Item no.: 431-35 8S172 180-60S3 VM

Perfectly suited for a reduced tabletop depth, this space-saving C-frame sit-stand desk maximises legroom despite the narrower foot footprint. The off-centre column ensures an open, airy feel underneath, with a foot length matched directly to the 70.9 x 23.6" tabletop dimensions. A sleek chrome ring at the base provides a high-end design detail, which can also be attached to extend the 22.6-48.7" height adjustment stroke (measured without the ring) by 1.38". The desk conforms to ANSI/BIFMA G1-2013 with a height range of 22.6" to 48.7" that accommodates over 95% of users. Features an RAL 9006 (silver) frame color, an walnut tabletop color with an melamine surface material, an 220 lbs load capacity, and an 24 min assembly time.

The digital controller provides three memory positions together with collision and anti-tilt protection. Thanks to the tactile arrow buttons, the desk can be adjusted by feel alone.


Table top specifications

  • Dimensions : 70.9 x 23.6"
  • Core material: 1 inch chipboard, classified E0
  • Surface finish: walnut melamine, a cable management grommet is included as standard.
  • Edges: 0.08 inch ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9006 (silver)
  • Height adjustment: 22.6-48.7"
  • Lifting capacity: 220 lbs
  • Operation: Included with the desk is a digital controller with three memory settings and collision and anti-tilt protection. The tactile buttons allow quick and intuitive operation by touch.
  • Motor: ConSet’s robust and proven 1-motor solution
Frame Color
Silver
Tabletop Color
Frame Style
C shape 23.6"
Add-Ons
No add-ons
Control Unit
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
431-35 8S172 180-60S3 VM
Description:
Standing Desk | 180x60 cm | Walnut with silver frame
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XSXXXLift column set, silver$ 512,-$ 512,-
1501-XX XS055CFeet and brackets C60, silver$ 130,-$ 130,-
1501-XX 8XPOWSPower box S$ 205,-$ 205,-
1SQ138890Traversset, 172 cm, neutral$ 82,-$ 82,-
1180-60S3 VMDesk Top For Standing Desk | 180x60 cm | Walnut$ 126,-$ 126,-

Total
$ 1055,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XSXXX77191715,005704142162484
501-XX XS055C681066,705704142162262
501-XX 8XPOWS25971,005704142161876
SQ138890171534,205704142138892
180-60S3 VM18767423,005704142149812
