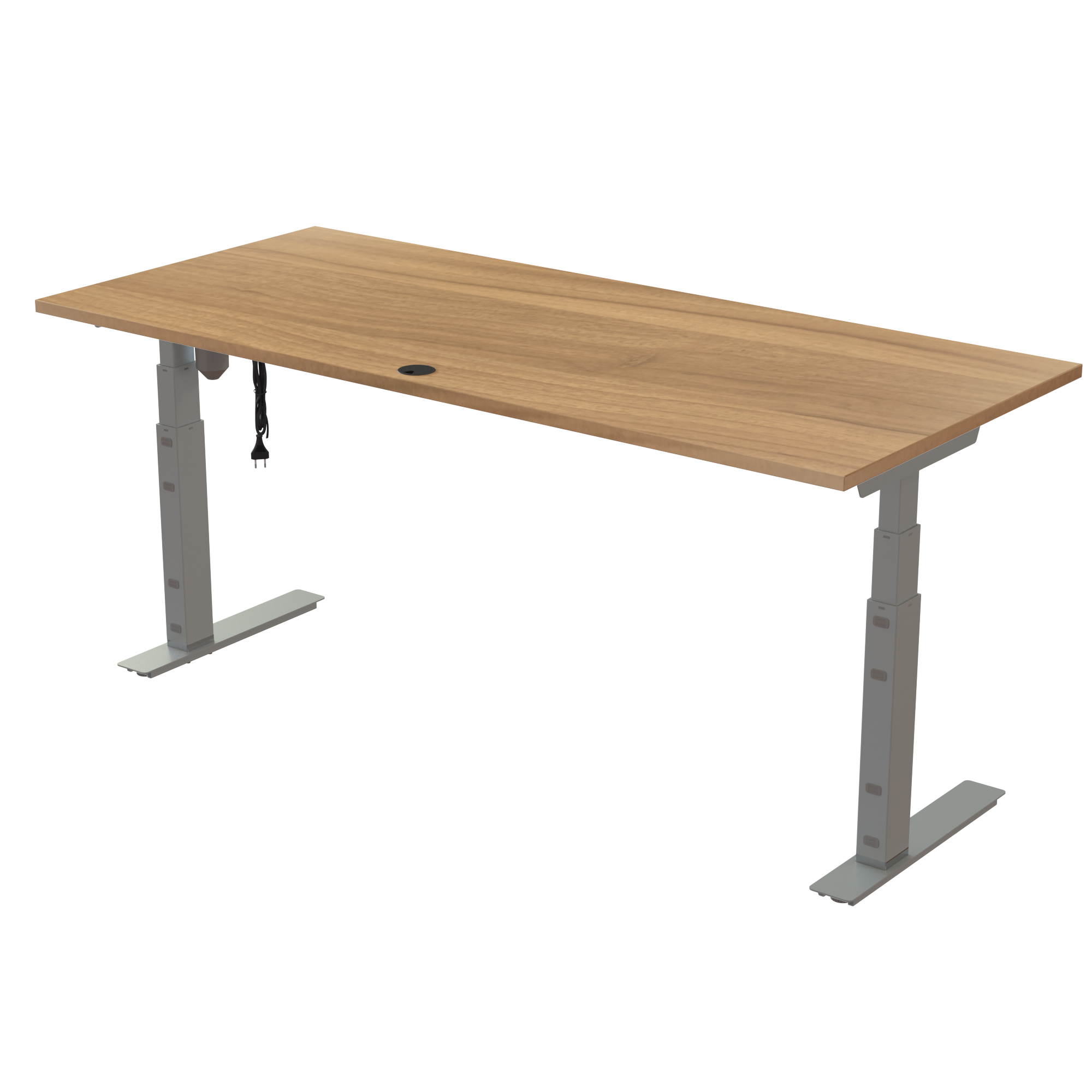

Standing Desk | 180x80 cm | Walnut with silver frame

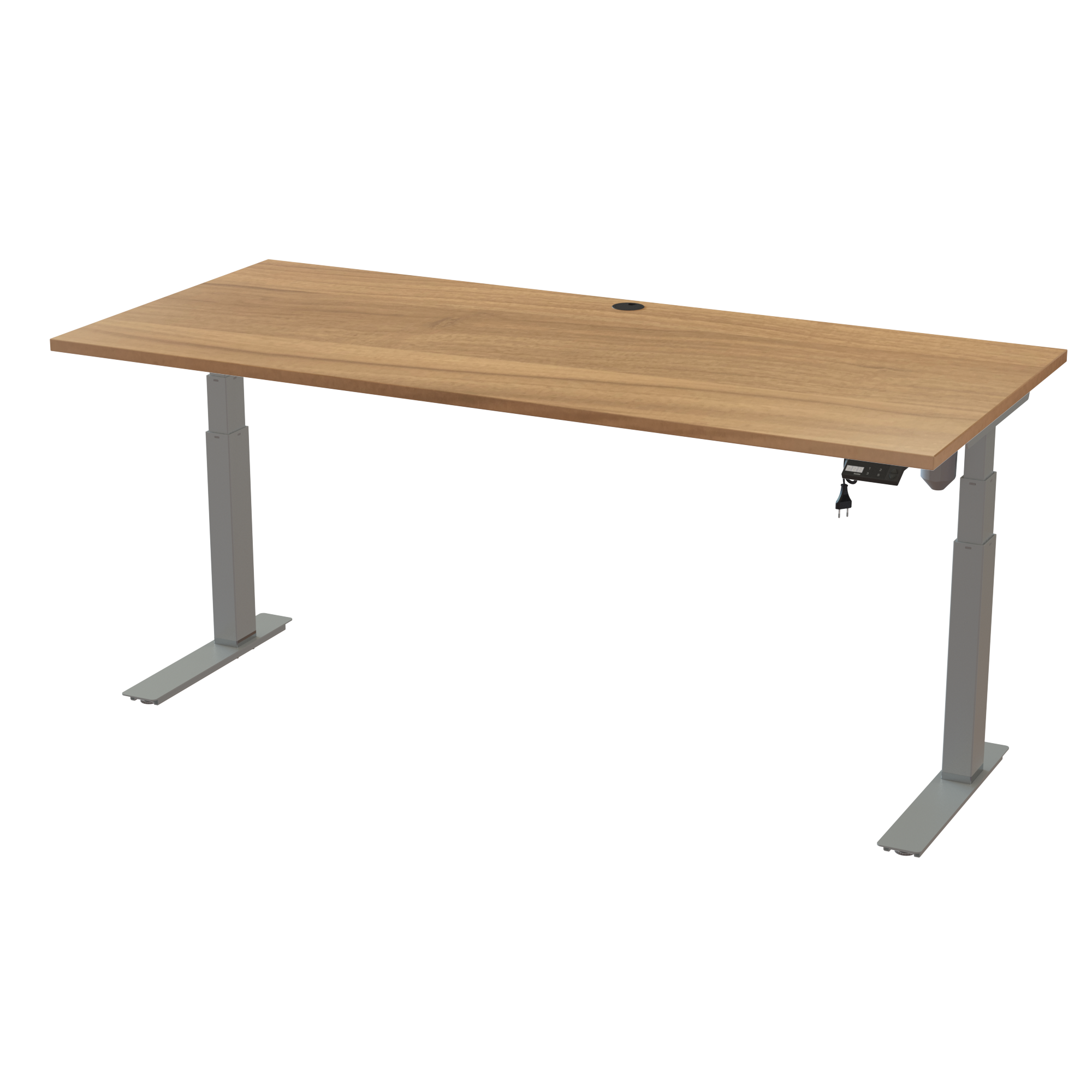

Space-Saving Standing Desk (Walnut, Silver): Narrow 23.6-inch depth (70.9x31.5 in). Lifts 220.5 lbs.
Space-Saving Standing Desk (Walnut, Silver): Narrow 23.6-inch depth (70.9x31.5 in). Lifts 220.5 lbs.
Standing Desk | 180x80 cm | Walnut with silver frame
Standing Desk | 180x80 cm | Walnut with silver frame
Standing Desk | 180x80 cm | Walnut with silver frame
Standing Desk | 180x80 cm | Walnut with silver frame
Standing Desk | 180x80 cm | Walnut with silver frame
$ 1125
Item no.: 431-35 8S172 180-80S3 VM

This adjustable-height C-frame desk offers a streamlined solution for the 70.9 x 31.5" tabletop size, blending depth efficiency with a unique visual profile finished in an walnut tabletop color with an melamine surface finish. The desk meets ANSI/BIFMA G1-2013 with a height range of 22.6" to 48.7" that accommodates over 95% of users. The 1.38" chrome ring serves as a premium design finish at the foot, and it can be attached to modify the 22.6-48.7" adjustment stroke (measured without the ring) by 1.38". Delivered with an RAL 9006 (silver) frame color, an 220 lbs load capacity, and an efficient 24 min assembly time.

With three memory positions and integrated safety sensors, the digital controller makes desk adjustments seamless. The tactile arrow buttons are easy to identify by feel.


Table top specifications

  • Dimensions : 70.9 x 31.5"
  • Core material: 1 inch chipboard, classified E0
  • Surface finish: walnut melamine, a plastic cable entry point is included by default.
  • Edges: 0.08 inch ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9006 (silver)
  • Height adjustment: 22.6-48.7"
  • Lifting capacity: 220 lbs
  • Operation: The desk uses a digital controller with three memory presets and automatic safety shut-off. Its tactile arrow buttons ensure simple, intuitive adjustments by touch.
  • Motor: ConSet’s stable 1-motor mechanism with demonstrated reliability
Frame Color
Silver
Tabletop Color
Frame Style
C shape 23.6"
Add-Ons
No add-ons
Control Unit
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
431-35 8S172 180-80S3 VM
Description:
Standing Desk | 180x80 cm | Walnut with silver frame
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XSXXXLift column set, silver$ 512,-$ 512,-
1501-XX XS055CFeet and brackets C60, silver$ 130,-$ 130,-
1501-XX 8XPOWSPower box S$ 205,-$ 205,-
1SQ138890Traversset, 172 cm, neutral$ 82,-$ 82,-
1180-80S3 VMDesk Top For Standing Desk | 180x80 cm | Walnut$ 196,-$ 196,-

Total
$ 1125,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XSXXX77191715,005704142162484
501-XX XS055C681066,705704142162262
501-XX 8XPOWS25971,005704142161876
SQ138890171534,205704142138892
180-80S3 VM18787426,005704142149805
