Manufacturer of electric height adjustable desks ...
Product-groups    Products

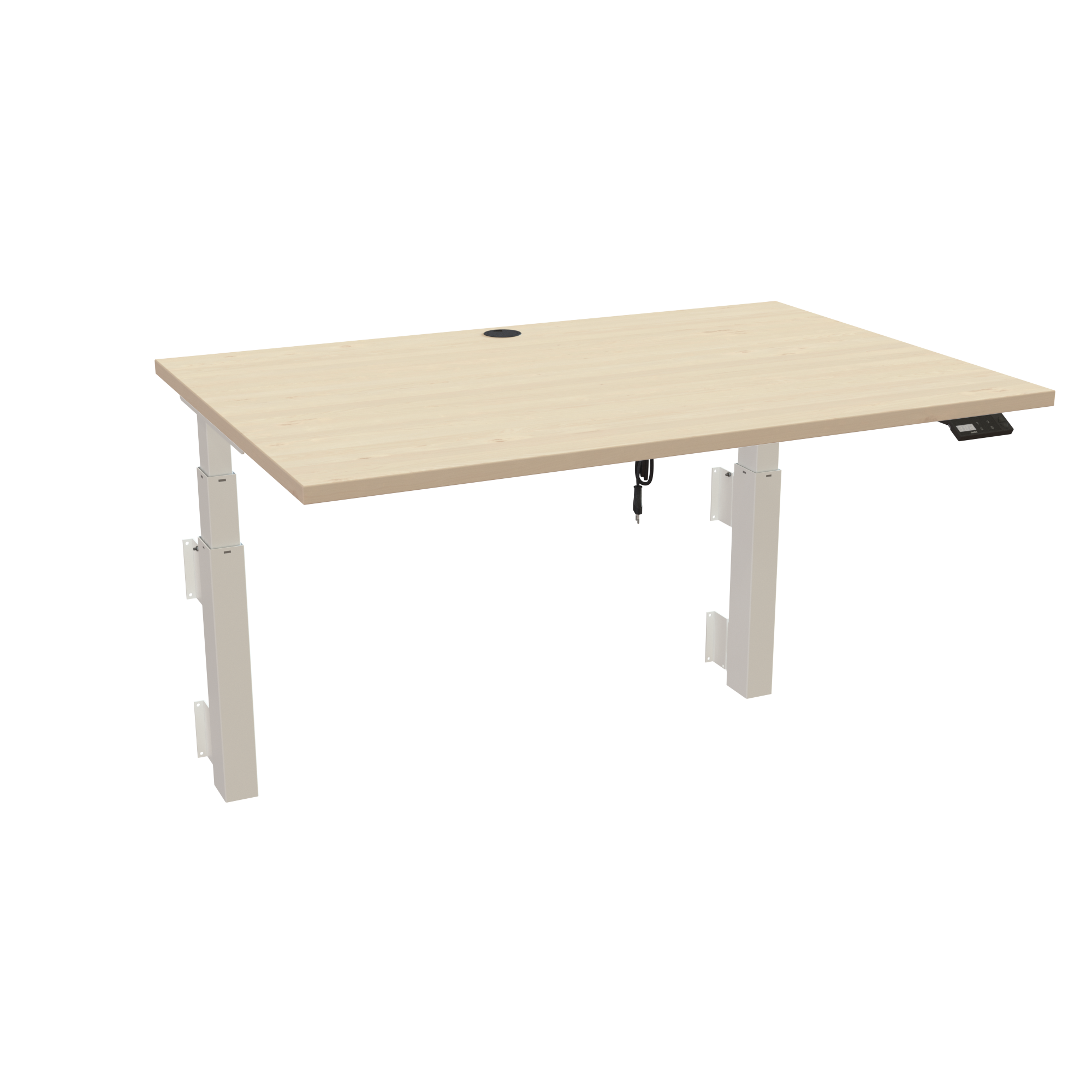

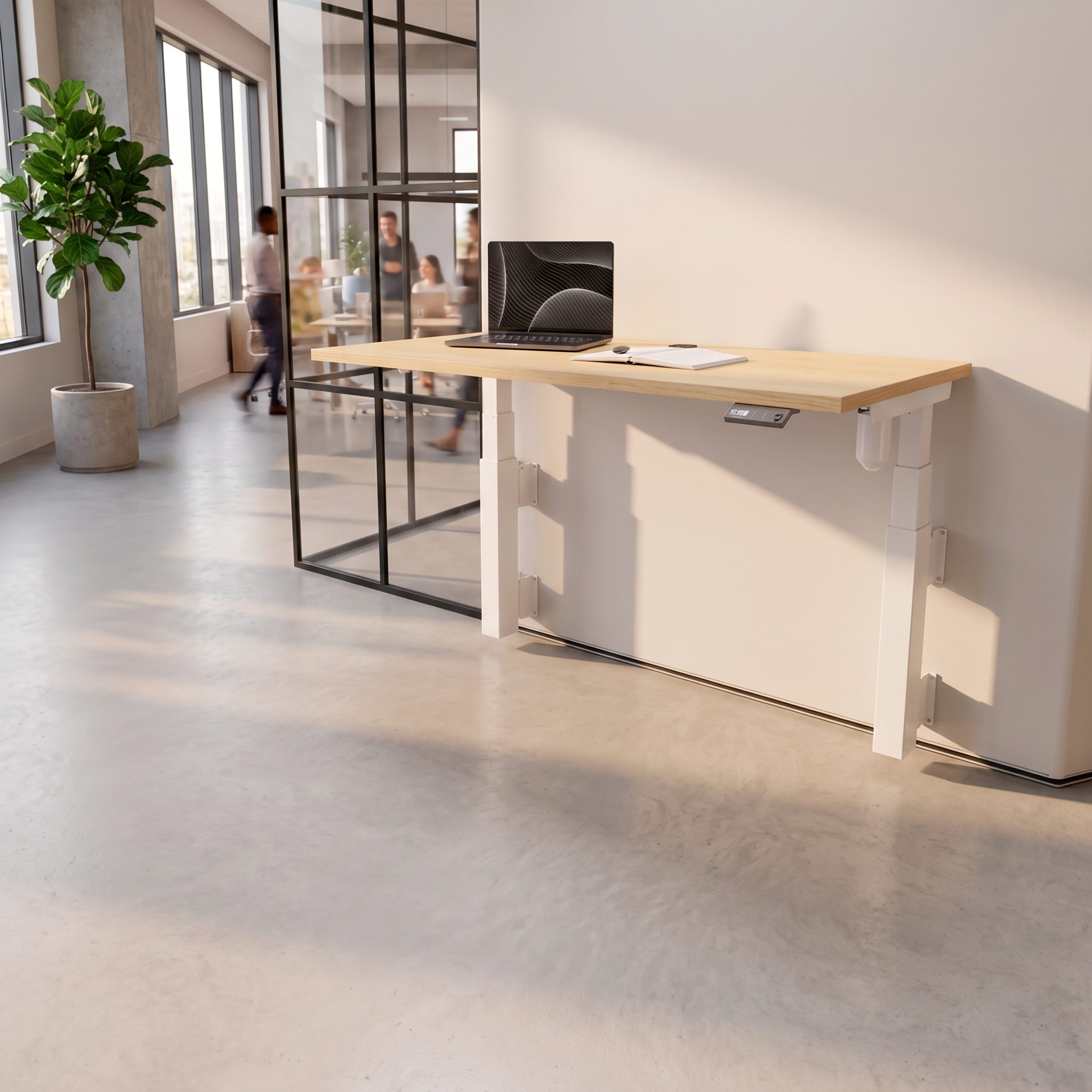

Standing Desk | 120x80 cm | Maple with white frame

491-35 8W112 120-80S3 MM
491-35 8W112 120-80S3 MM
Standing Desk | 120x80 cm | Maple with white frame
Standing Desk | 120x80 cm | Maple with white frame
Standing Desk | 120x80 cm | Maple with white frame
$ 1063
Item no.: 491-35 8W112 120-80S3 MM

Engineered for premium stability and maximum space efficiency, this wall-mounted sit-stand desk lets you build an ergonomic workstation in tight layouts. Because it anchors directly to the wall, it keeps the floor 100% clear, preventing dust buildup around bulky desk legs and making maintenance effortless. It includes a robust tabletop in size 47.2 x 31.5", showcasing a durable melamine surface finish and a stylish maple tabletop color. Certified to ANSI/BIFMA G1-2013 with a height range of 22.6" to 48.7" that accommodates over 95% of users, key specifications include an 132 lbs load capacity, an 22-48" height adjustment range (measured without the optional 1.38" chrome base ring; attach it to increase the stroke by 1.38()), a clean RAL 9016 (white) frame finish, and a highly optimized 38 min installation time.

A digital controller with three preset memory positions is included as standard. The tactile arrow buttons allow intuitive operation without having to look at the control panel.


Table top specifications

  • Dimensions : 47.2 x 31.5"
  • Core material: 1 inch chipboard, classified E0
  • Surface finish: maple melamine, a cable management grommet is included as standard.
  • Edges: 0.08 inch ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 22-48"
  • Lifting capacity: 132 lbs
  • Operation: Included with the desk is a digital controller with three memory settings and collision and anti-tilt protection. The tactile buttons allow quick and intuitive operation by touch.
  • Motor: ConSet’s stable 1-motor mechanism with demonstrated reliability
Frame Color
White
Frame Style
Add-Ons
No add-ons
Control Unit
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
491-35 8W112 120-80S3 MM
Description:
Standing Desk | 120x80 cm | Maple with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XWXXXLift column set, white$ 512,-$ 512,-
1501-39 XW400501-39 Arm Set, white$ 43,-$ 43,-
1501-X XWW02Wall mount, white$ 31,-$ 31,-
1501-XX 8XPOWSPower box S$ 205,-$ 205,-
1SQ137690Traversset, 112 cm, neutral$ 82,-$ 82,-
1120-80S3 MMDesk Top For Standing Desk | 120x80 cm | Maple$ 190,-$ 190,-

Total
$ 1063,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XWXXX77191715,005704142161616
501-39 XW40040752,205704142161692
501-X XWW02211372,005704142161647
501-XX 8XPOWS25971,005704142161876
SQ137690111532,305704142137697
120-80S3 MM12787417,005704142149843
