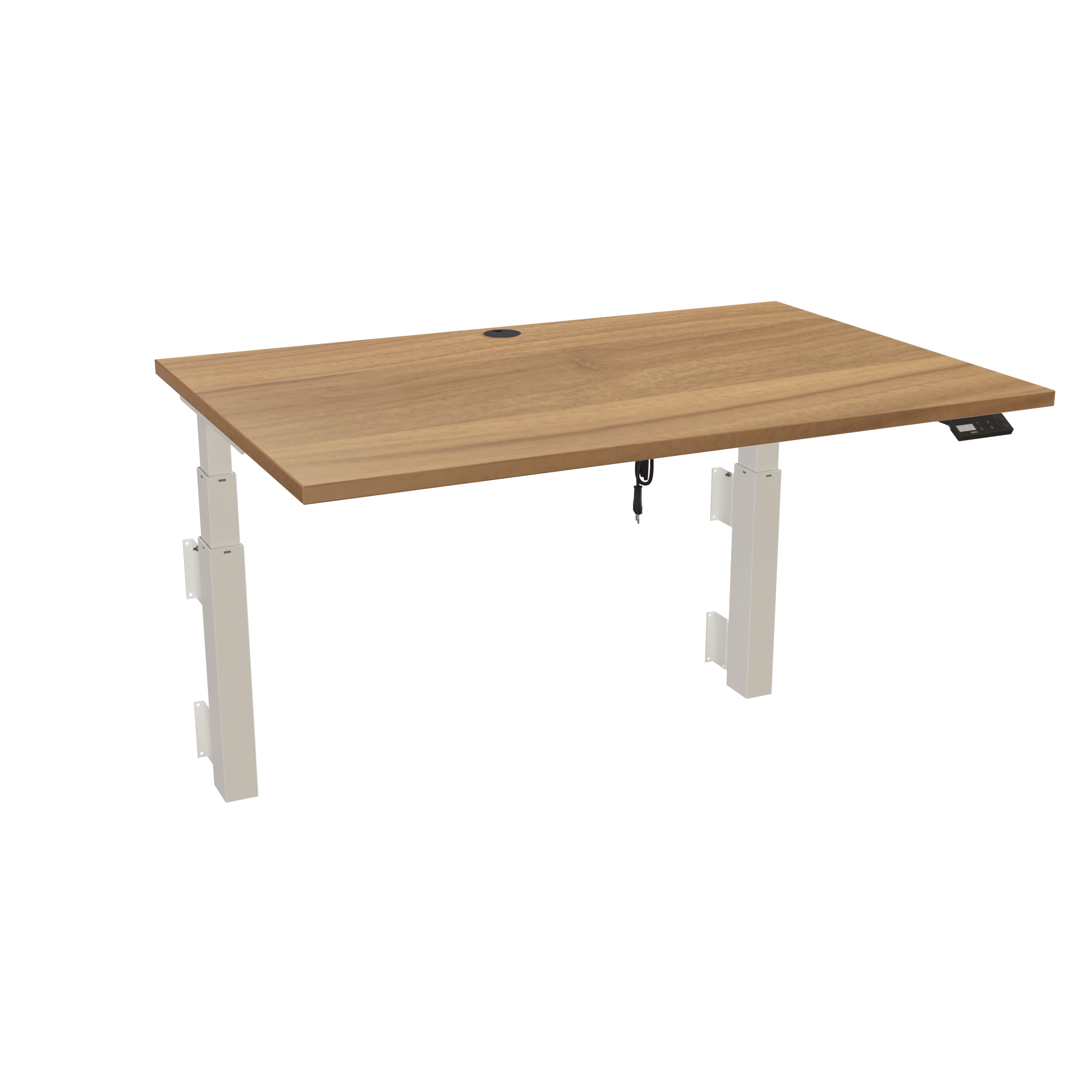

Standing Desk | 120x80 cm | Walnut with white frame

491-35 8W112 120-80S3 VM
491-35 8W112 120-80S3 VM
Standing Desk | 120x80 cm | Walnut with white frame
Standing Desk | 120x80 cm | Walnut with white frame
$ 1063
Item no.: 491-35 8W112 120-80S3 VM

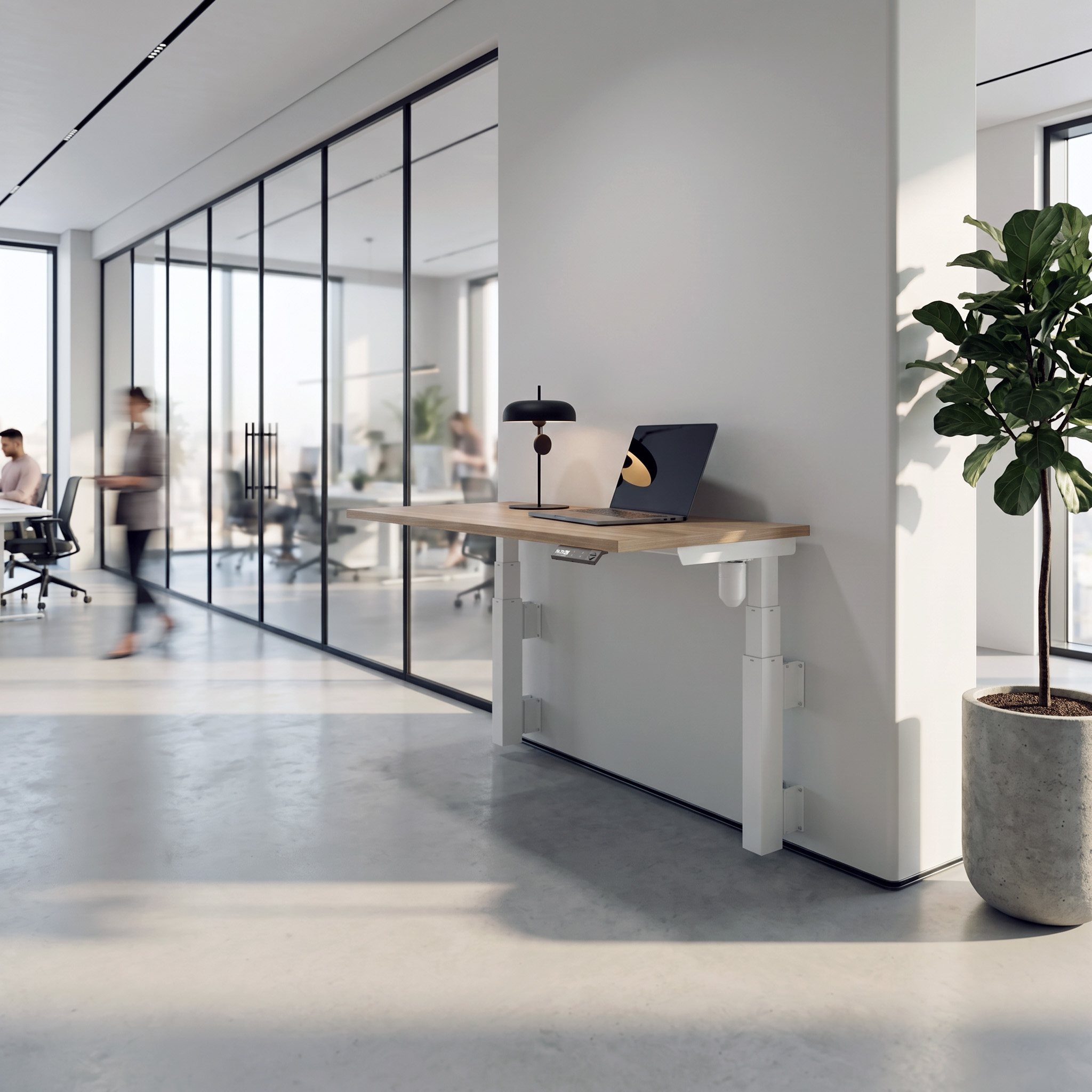

This wall-mounted, two-leg height-adjustable desk combines exceptional stability with a space-saving design, allowing you to establish a high-performance workstation where traditional desks won't fit. With zero desk feet blocking the floor, routine cleaning and robotic vacuuming become completely frictionless. The desk includes a sturdy tabletop available in a custom 47.2 x 31.5" size, a high-quality melamine surface, and a clean walnut tabletop color on an RAL 9016 (white) frame. It meets ANSI/BIFMA G1-2013 with a height range of 22.6" to 48.7" that accommodates over 95% of users, offering a smooth 24-50" height adjustment (measured without the optional 1.38" chrome base ring; attach the ring to increase the stroke by 1.38"), a robust load capacity of 132 lbs, and requiring just 38 min to assemble.

The desk comes standard with a digital controller offering three memory positions. The tactile up and down buttons can be recognized by touch, making everyday operation simple and intuitive.


Table top specifications

  • Dimensions : 47.2 x 31.5"
  • Core material: 1 inch chipboard, classified E0
  • Surface finish: walnut melamine, the plastic grommet for cables is a standard inclusion.
  • Edges: 0.08 inch ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 24-50"
  • Lifting capacity: 132 lbs
  • Operation: Included with the desk is a digital controller with three memory settings and collision and anti-tilt protection. The tactile buttons allow quick and intuitive operation by touch.
  • Motor : ConSet’s powerful and dependable 1-motor system
Frame Color
White
Frame Style
Wall
Add-Ons
No add-ons
Control Unit
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
491-35 8W112 120-80S3 VM
Description:
Standing Desk | 120x80 cm | Walnut with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XWXXXLift column set, white$ 512,-$ 512,-
1501-39 XW400501-39 Arm Set, white$ 43,-$ 43,-
1501-X XWW02Wall mount, white$ 31,-$ 31,-
1501-XX 8XPOWSPower box S$ 205,-$ 205,-
1SQ137690Traversset, 112 cm, neutral$ 82,-$ 82,-
1120-80S3 VMDesk Top For Standing Desk | 120x80 cm | Walnut$ 190,-$ 190,-

Total
$ 1063,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XWXXX77191715,005704142161616
501-39 XW40040752,205704142161692
501-X XWW02211372,005704142161647
501-XX 8XPOWS25971,005704142161876
SQ137690111532,305704142137697
120-80S3 VM12787417,005704142149768
