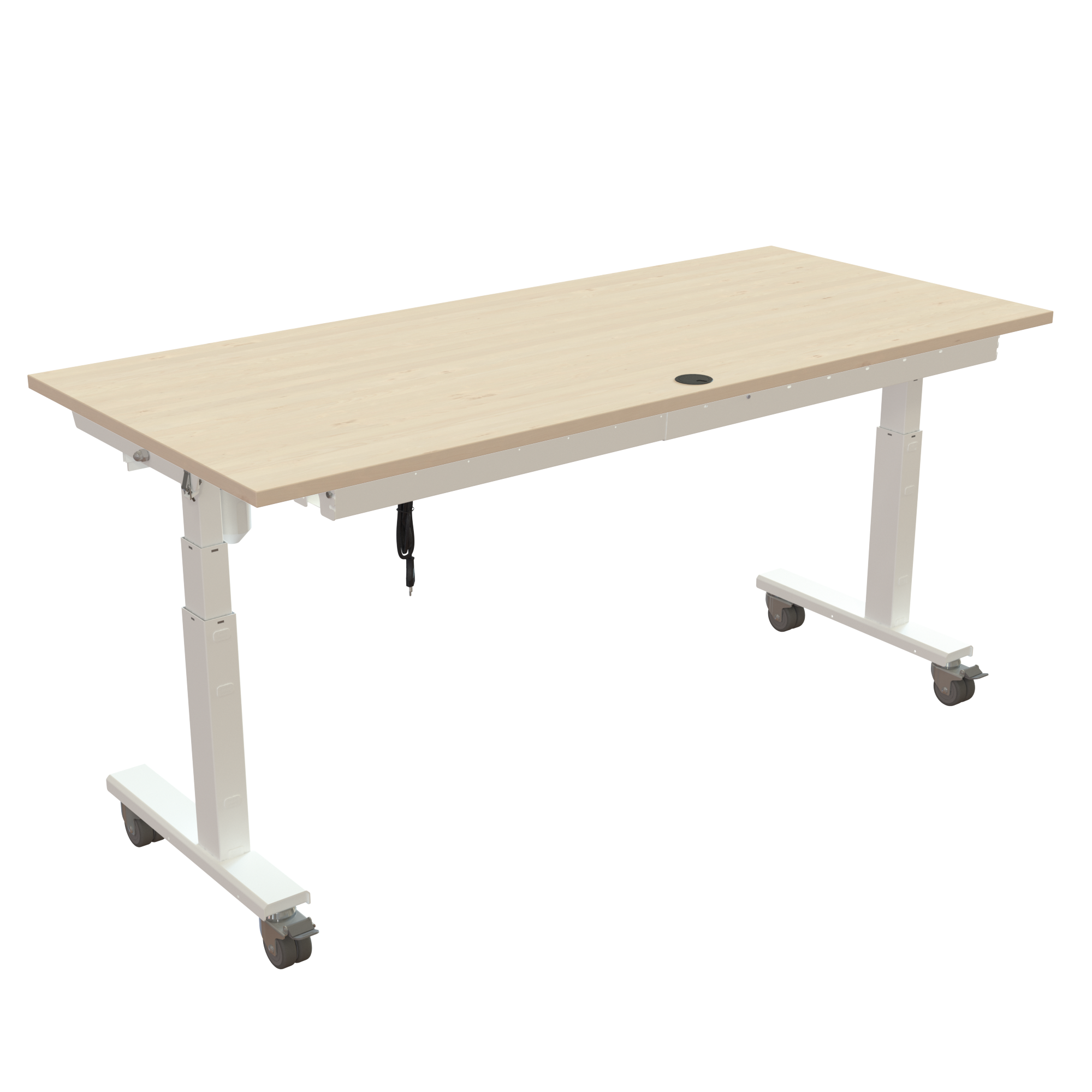

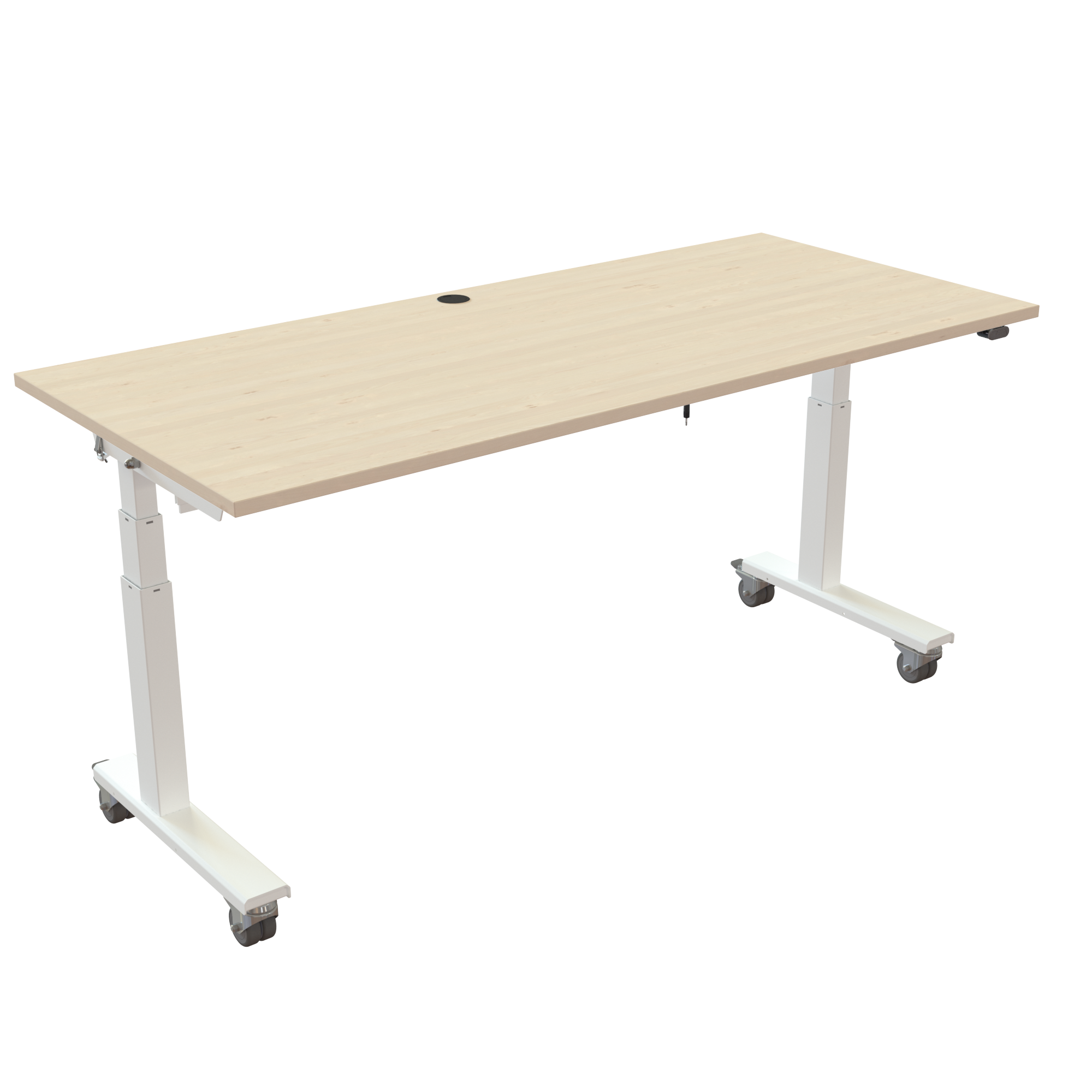

Standing Desk | 180x80 cm | Maple with white frame

476-35 8W172 180-80S3 MM
476-35 8W172 180-80S3 MM
Standing Desk | 180x80 cm | Maple with white frame
Standing Desk | 180x80 cm | Maple with white frame
Standing Desk | 180x80 cm | Maple with white frame
$ 1438
Item no.: 476-35 8W172 180-80S3 MM

This electric height-adjustable desk delivers a 26.4-52" travel distance and a lifting load of 220 lbs. The 90-degree folding flip top enables close nesting for efficient storage in multipurpose office spaces, supported by heavy-duty casters and a cable tray mounted onto the tabletop. Assembly time is 47 min. It features a RAL 9016 (white) frame paired with a tabletop in maple color and an melamine surface finish.

Adjusting your desk is effortless with the included digital controller, featuring three memory presets and safety anti-tilt protection. The shaped tactile buttons let you find the right height by touch alone. Attaching the 90-degree flip top requires no extra effort beyond standard desk screws. Side clips lock the working surface safely in place.


Table top specifications

  • Dimensions : 70.9 x 31.5"
  • Core material: 1 inch chipboard, classified E0
  • Surface finish: maple melamine, we include a standard desk grommet for cable tidiness.
  • Edges: 0.08 inch ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 26.4-52"
  • Lifting capacity: 220 lbs
  • Operation: The digital controller includes three preset memory positions along with collision and anti-tilt protection. The arrow-shaped tactile buttons allow the desk to be operated without visual attention.
  • Motor : ConSet’s stable 1-motor mechanism with demonstrated reliability
Frame Color
White
Tabletop Color
Frame Style
Flip top
Add-Ons
No Add-ons
Control Unit
Table top color:
Frame color:
Table top thickness:
Detailed product information
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
476-35 8W172 180-80S3 MM
Description:
Standing Desk | 180x80 cm | Maple with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XWXXXLift column set, white$ 512,-$ 512,-
1501-96 XWXXXSet for 501-96, RAL 9016, White$ 211,-$ 211,-
1501-XX 8XPOWSPower box S$ 205,-$ 205,-
1LF750 HXXXLift column set, white$ 66,-$ 66,-
1SQ138890Traversset, 172 cm, neutral$ 82,-$ 82,-
1501-XX CW096-166Universal cable-tray, White$ 68,-$ 68,-
1180-80S3 MMTabletop | 180x80 cm | Maple$ 294,-$ 294,-

Total
$ 1438,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XWXXX77191715,005704142161616
501-96 XWXXX5921129,705704142161432
501-XX 8XPOWS25971,005704142161876
LF750 HXXX242482,605704142124468
SQ138890171534,205704142138892
501-XX CW096-166888153,805704142144800
180-80S3 MM18787426,005704142149881
