Manufacturer of electric height adjustable desks ...

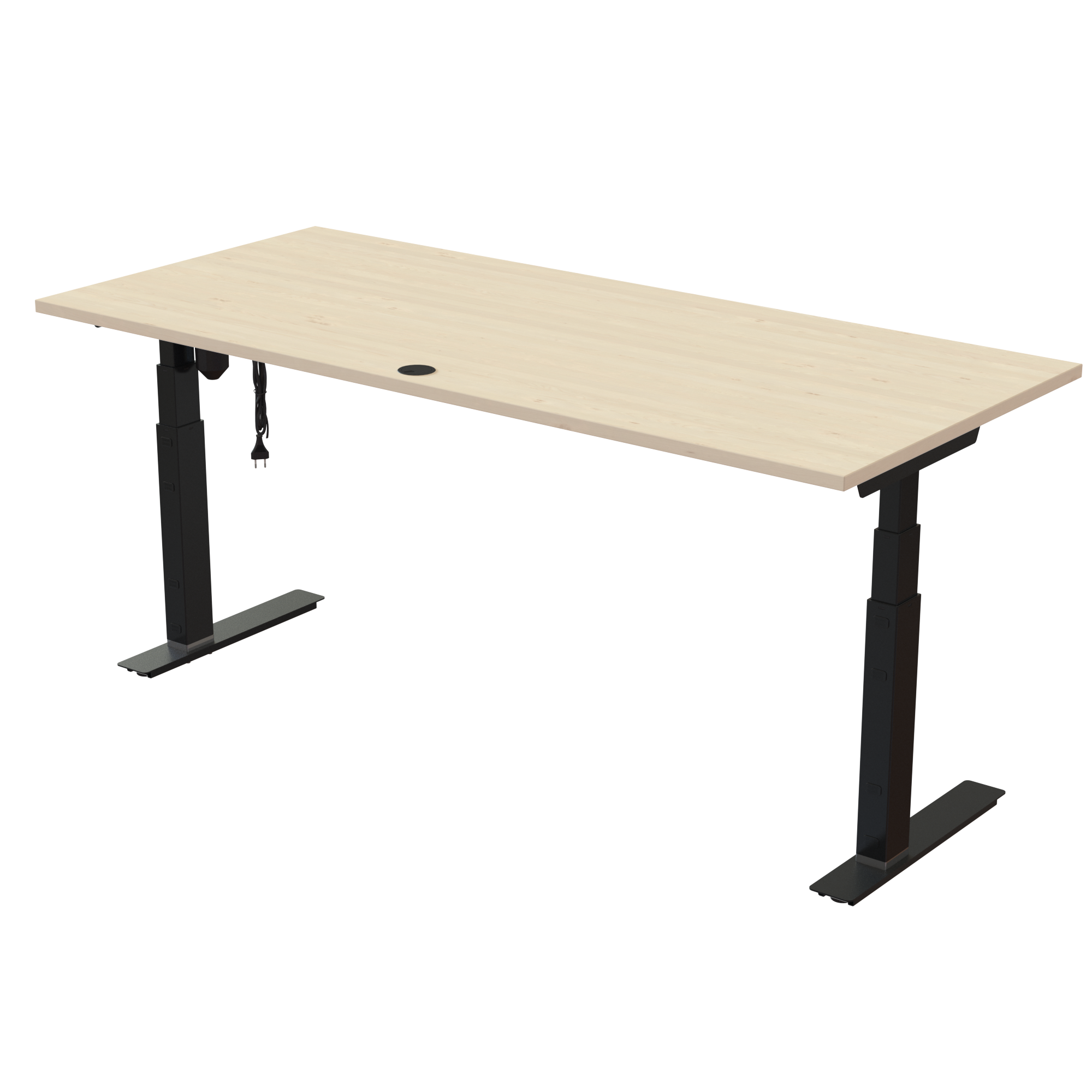

Standing Desk | 180x80 cm | Maple with black frame

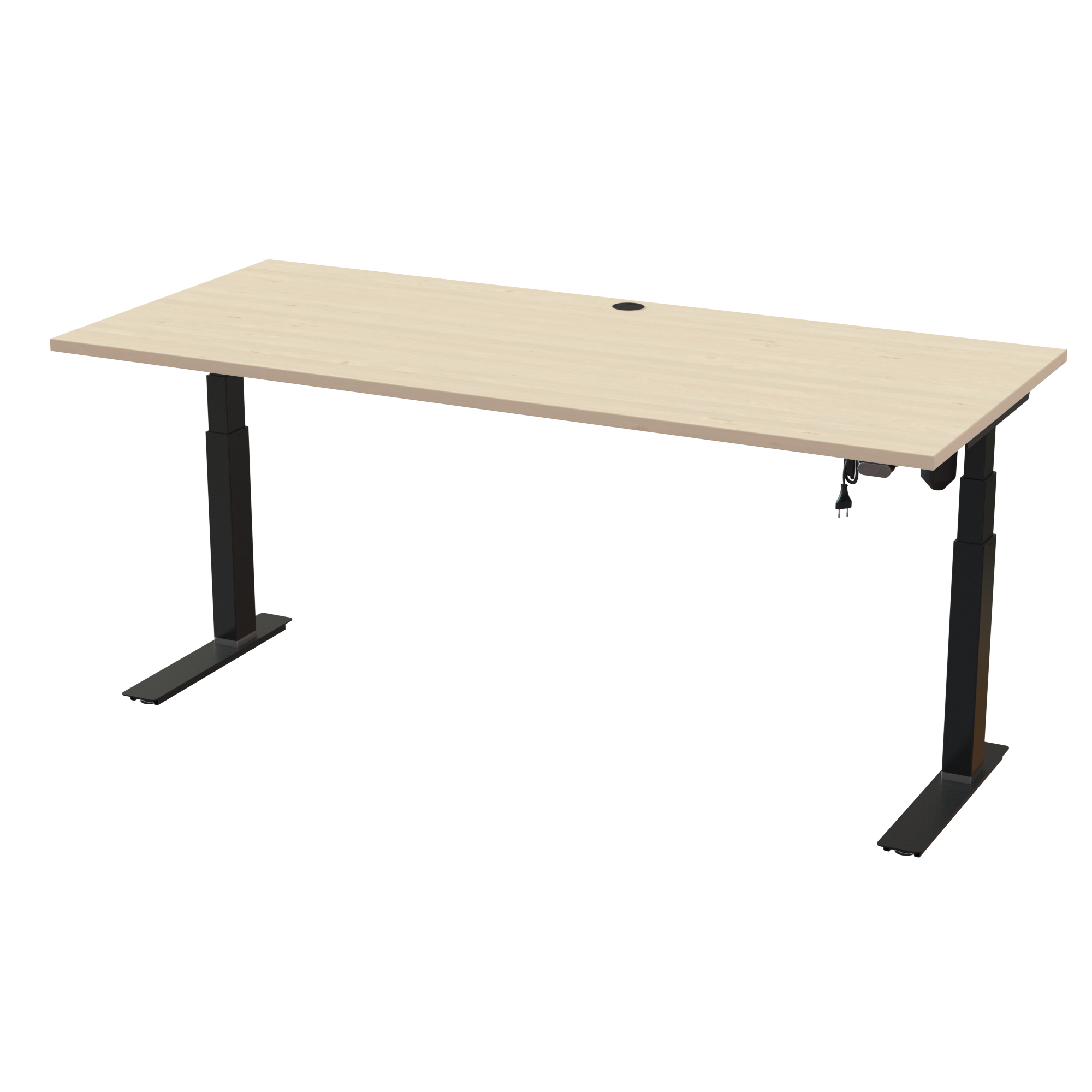

Height-Adjustable Desk for All Ages (Walnut, Black): Low minimum height (22.6-48.7 inch). Lifts 220.5 lbs.
Height-Adjustable Desk for All Ages (Walnut, Black): Low minimum height (22.6-48.7 inch). Lifts 220.5 lbs.
Standing Desk | 180x80 cm | Maple with black frame
Standing Desk | 180x80 cm | Maple with black frame
Standing Desk | 180x80 cm | Maple with black frame
Standing Desk | 180x80 cm | Maple with black frame
Standing Desk | 180x80 cm | Maple with black frame
$ 1112
Item no.: 531-35 8B172 180-80S3 MM

This height adjustable desk is the ideal match for smaller tabletop depths, providing a clean and unrestricted area below the 70.9 x 31.5" tabletop size, backed by a robust 220 lbs load capacity. A prominent chrome ring serves as a standout design element at the floor level. For added utility, attach the 1.38" chrome ring to optimize the 22.6-48.7" adjustment stroke (measured without the ring) by 1.38". The desk meets ANSI/BIFMA G1-2013 with a height range of 22.6" to 48.7" that accommodates over 95% of users. Features an 23 min assembly time, an RAL 9004 (black) frame color, and an maple tabletop color with an melamine surface finish.

The standard control panel is equipped with two tactile arrow buttons. Its simple internal design ensures reliable performance over many years of use. Users can identify the up and down controls by touch, enabling intuitive operation.


Table top specifications

  • Dimensions : 70.9 x 31.5"
  • Core material: 1 inch chipboard, classified E0
  • Surface finish: maple melamine, the cable pass-through feature is a standard inclusion.
  • Edges: 0.08 inch ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9004 (black)
  • Height adjustment: 22.6-48.7"
  • Lifting capacity: 220 lbs
  • Operation: The desk comes with a standard tactile two-arrow user panel. The switch-based control system is designed for reliability, ease of use and long-term durability. The raised arrow buttons can be recognized by feel, allowing effortless adjustment without visual attention.
  • Motor: ConSet’s robust and proven 1-motor solution
Frame Color
Tabletop Color
Frame Style
C shape 23.6"
Add-Ons
No add-ons
Control Unit
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
531-35 8B172 180-80S3 MM
Description:
Standing Desk | 180x80 cm | Maple with black frame
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XBXXXLift column set, black$ 512,-$ 512,-
1501-XX XB055CFeet and brackets C60, black$ 130,-$ 130,-
1501-XX 8XPOWAPower Box A$ 94,-$ 94,-
1SQ138890Traversset, 172 cm, neutral$ 82,-$ 82,-
1180-80S3 MMTabletop | 180x80 cm | Maple$ 294,-$ 294,-

Total
$ 1112,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XBXXX77191715,005704142162217
501-XX XB055C681066,705704142162330
501-XX 8XPOWA221190,705704142127018
SQ138890171534,205704142138892
180-80S3 MM18787426,005704142149881
