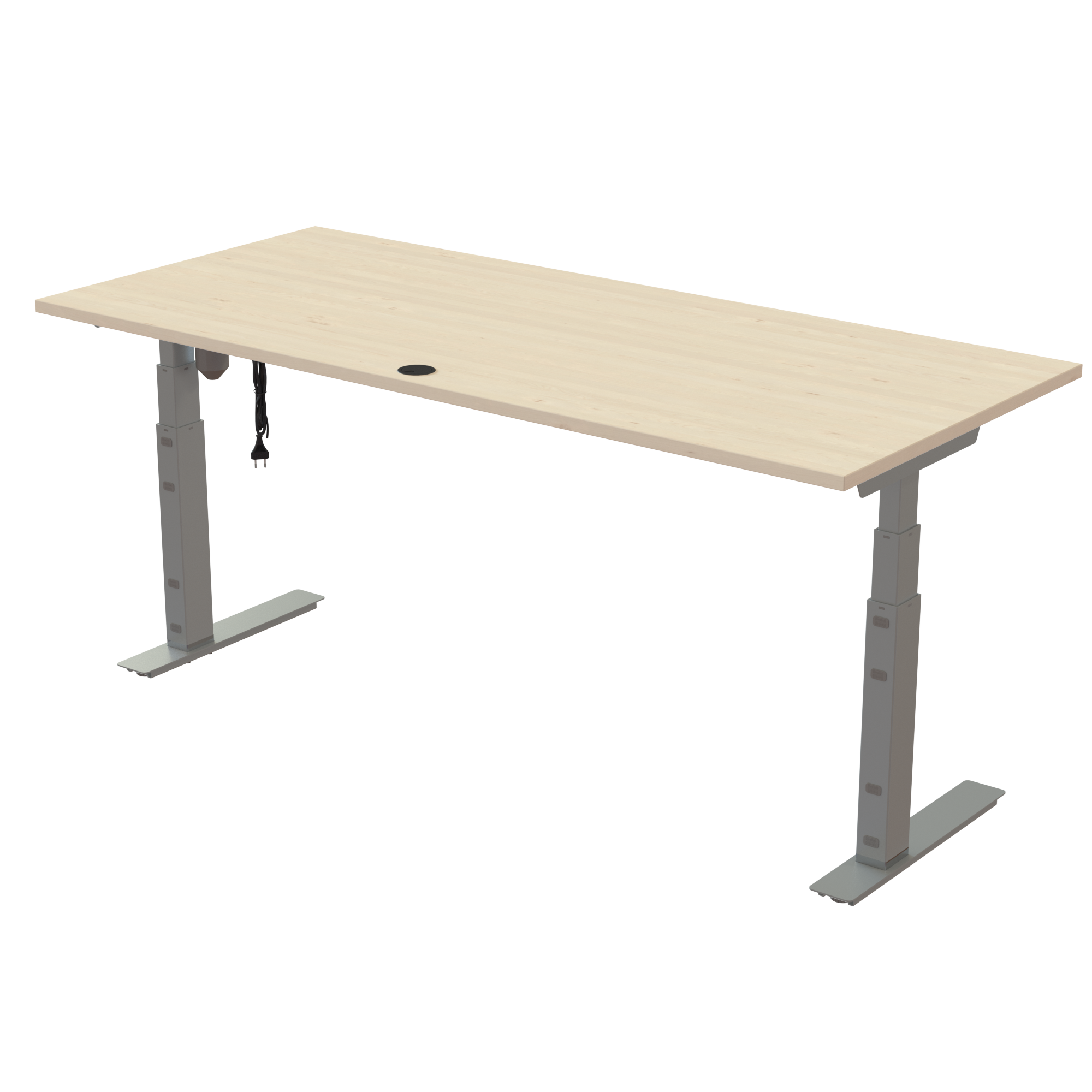

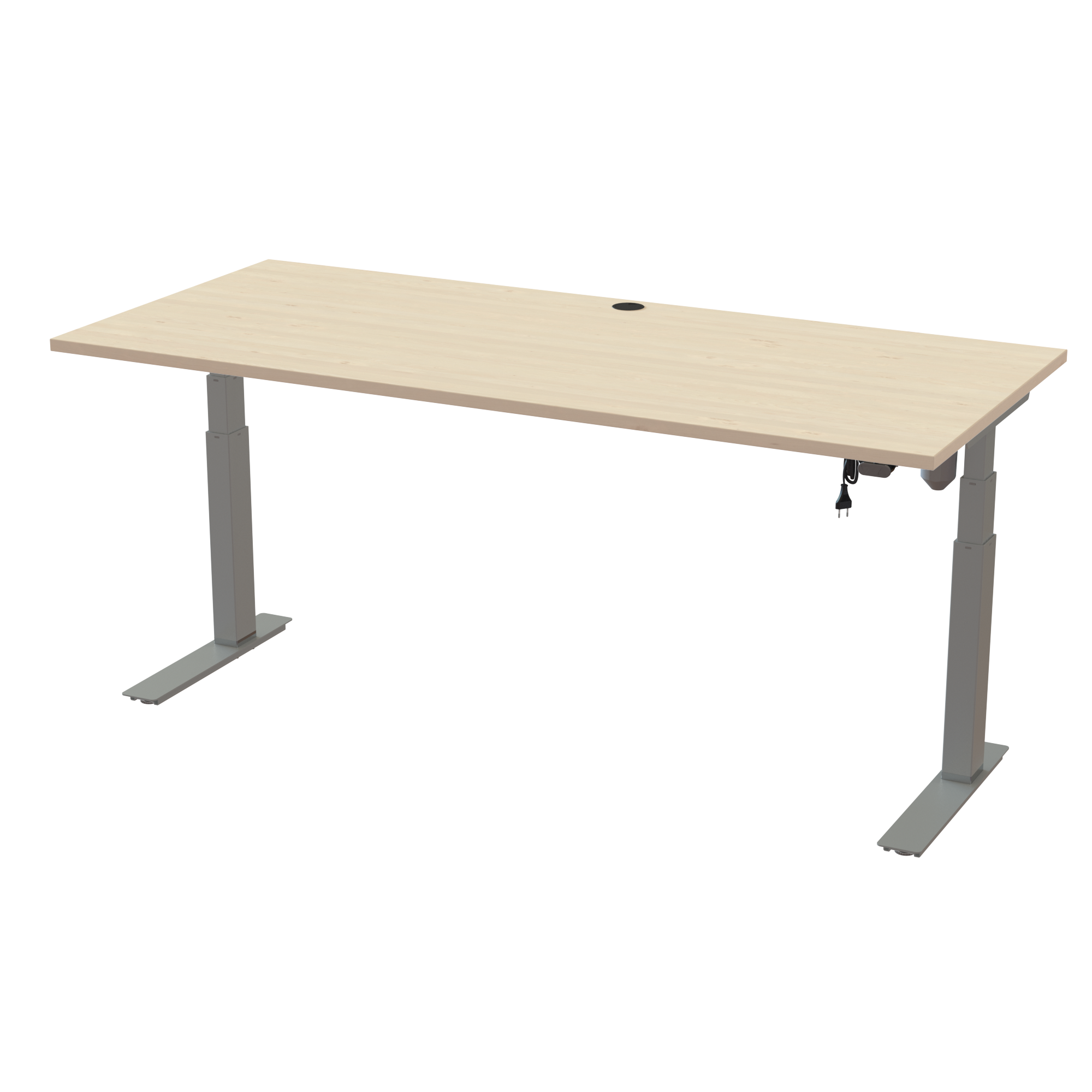

Standing Desk | 180x80 cm | Maple with silver frame

531-35 8S172 180-80S3 MM
531-35 8S172 180-80S3 MM
Standing Desk | 180x80 cm | Maple with silver frame
Standing Desk | 180x80 cm | Maple with silver frame
Standing Desk | 180x80 cm | Maple with silver frame
Standing Desk | 180x80 cm | Maple with silver frame
Standing Desk | 180x80 cm | Maple with silver frame
$ 1112
Item no.: 531-35 8S172 180-80S3 MM

Perfectly suited for a reduced tabletop depth, this space-saving C-frame sit-stand desk maximises legroom despite the narrower foot footprint. The off-centre column ensures an open, airy feel underneath, with a foot length matched directly to the 70.9 x 31.5" tabletop dimensions. A sleek chrome ring at the base provides a high-end design detail, which can also be attached to extend the 22.6-48.7" height adjustment stroke (measured without the ring) by 1.38". The desk conforms to ANSI/BIFMA G1-2013 with a height range of 22.6" to 48.7" that accommodates over 95% of users. Features an RAL 9006 (silver) frame color, an maple tabletop color with an melamine surface material, an 220 lbs load capacity, and an 23 min assembly time.

The desk features a standard two-arrow control panel designed for simple and reliable operation. Its durable switch-based construction minimizes complexity while ensuring long service life. The tactile buttons allow intuitive use without needing to view the panel.


Table top specifications

  • Dimensions : 70.9 x 31.5"
  • Core material: 1 inch chipboard, classified E0
  • Surface finish: maple melamine, we include a standard desk grommet for cable tidiness.
  • Edges: 0.08 inch ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9006 (silver)
  • Height adjustment: 22.6-48.7"
  • Lifting capacity: 220 lbs
  • Operation: Included as standard is a two-arrow control panel with a proven switch-based design. Its uncomplicated construction contributes to long-term reliability. The tactile arrow buttons provide clear feedback and can be operated without looking.
  • Motor: ConSet’s strong and tried-and-tested 1-motor solution
Frame Color
Silver
Tabletop Color
Frame Style
C shape 23.6"
Add-Ons
No add-ons
Control Unit
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
531-35 8S172 180-80S3 MM
Description:
Standing Desk | 180x80 cm | Maple with silver frame
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XSXXXLift column set, silver$ 512,-$ 512,-
1501-XX XS055CFeet and brackets C60, silver$ 130,-$ 130,-
1501-XX 8XPOWAPower Box A$ 94,-$ 94,-
1SQ138890Traversset, 172 cm, neutral$ 82,-$ 82,-
1180-80S3 MMTabletop | 180x80 cm | Maple$ 294,-$ 294,-

Total
$ 1112,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XSXXX77191715,005704142162484
501-XX XS055C681066,705704142162262
501-XX 8XPOWA221190,705704142127018
SQ138890171534,205704142138892
180-80S3 MM18787426,005704142149881
