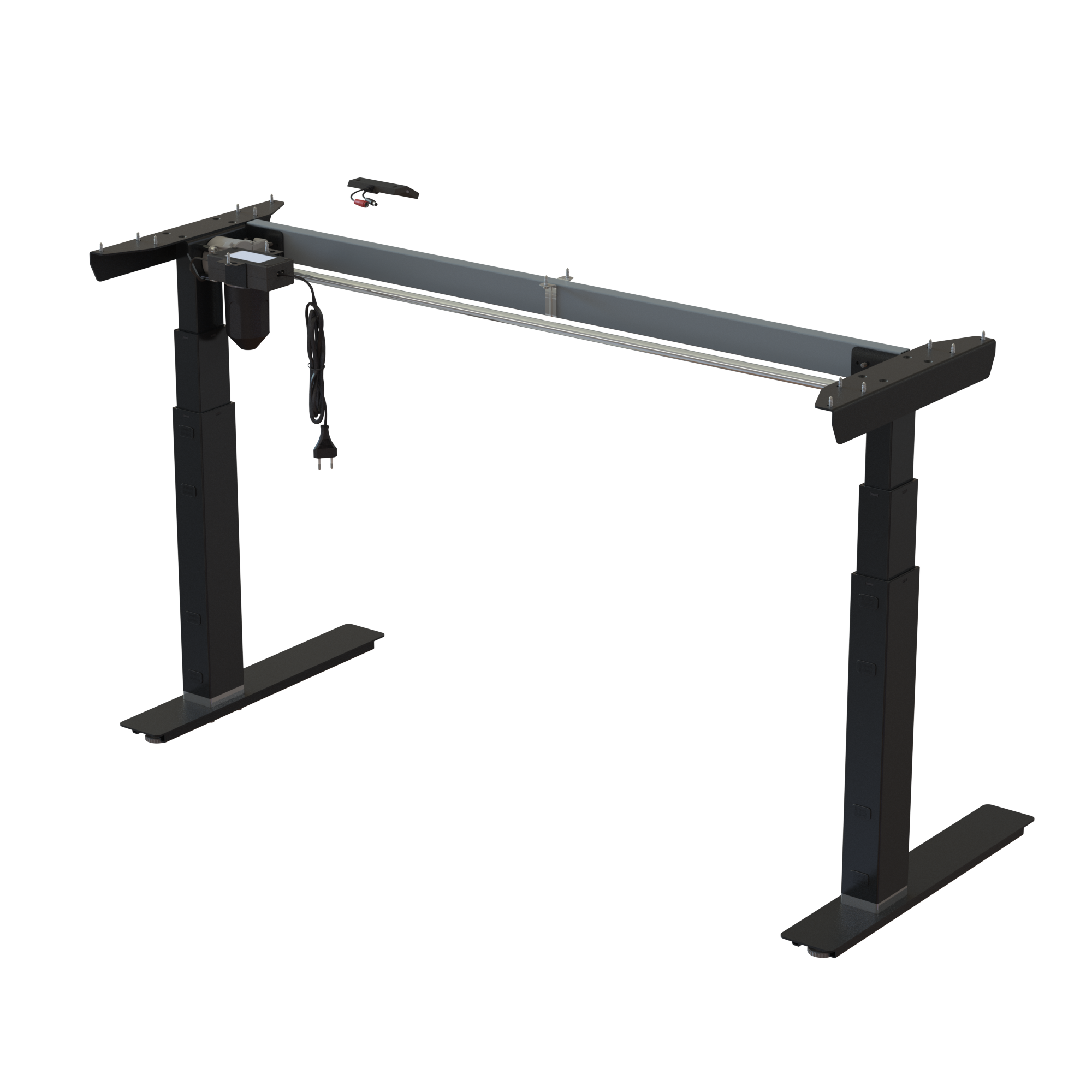

Standing Desk Frame | Width 129 cm | Black

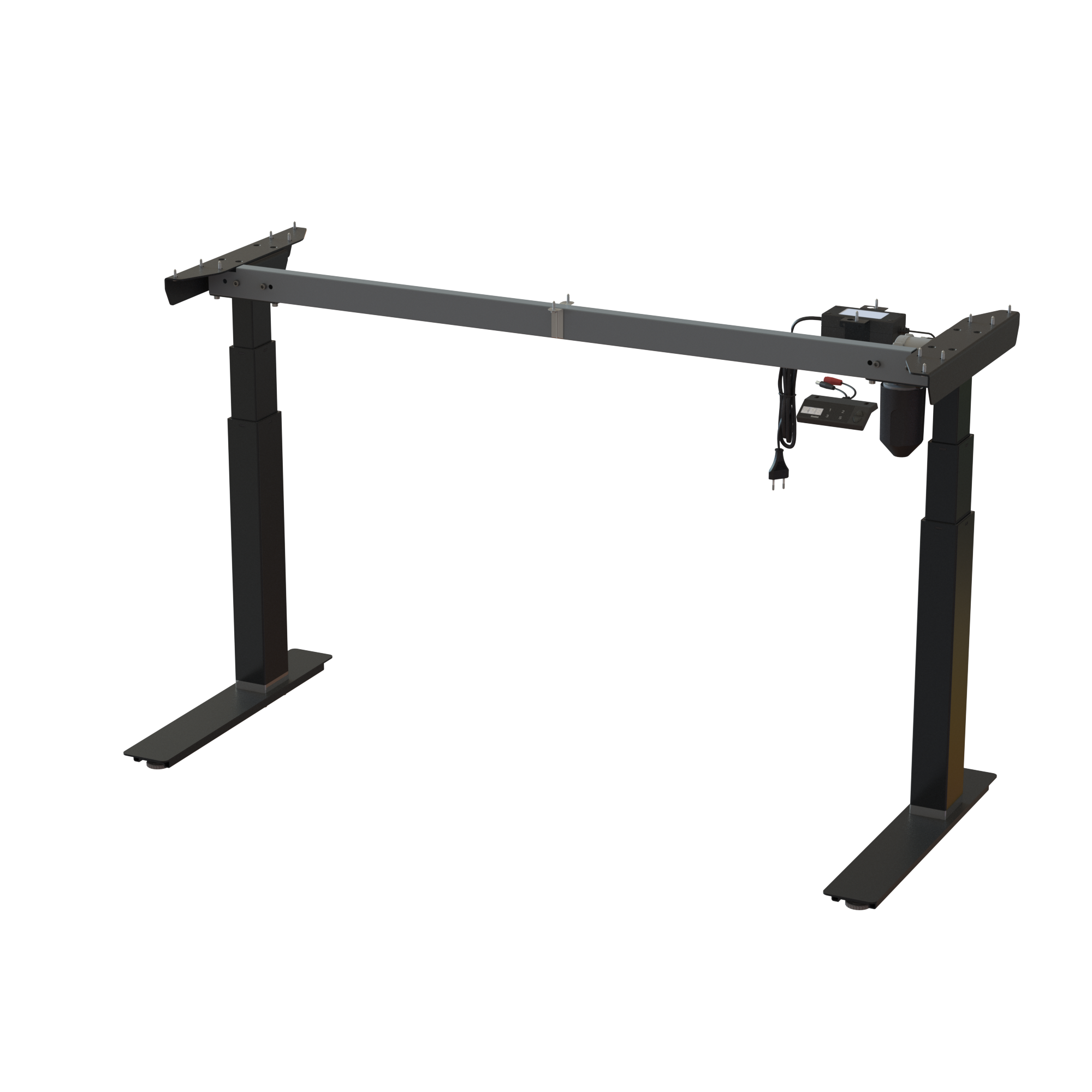

Sit-stand office base, steel, Black finish. Base width 50.8 in. Height range 22.4–48.0 in. Frame lifts 220 lbs.
Sit-stand office base, steel, Black finish. Base width 50.8 in. Height range 22.4–48.0 in. Frame lifts 220 lbs.
Standing Desk Frame | Width 129 cm | Black
Standing Desk Frame | Width 129 cm | Black
Standing Desk Frame | Width 129 cm | Black
Standing Desk Frame | Width 129 cm | Black
$ 929
Item no.: 431-35 8B129

This C-frame sit-stand desk frame is built specifically to ensure plenty of room for your legs in limited-depth environments. The off-center column configuration offers a more open workspace experience. It includes an RAL 9004 (black) frame and a foot length matched to the 24-inch desk depth. With the 35 mm chrome ring attached at the base, the range is extended, whereas the base stroke is 24-50" without it. The desk frame is rated for a load capacity of 220 lbs and is assembled in 15 min. Engineered to rigorous standards, the sit-stand desk frame is ANSI/BIFMA G1-2013 compliant, boasting a 22.6” to 48.7” operating height that fits over 95% of users.

The desk frame features a digital control panel with three memory presets and advanced safety functions. The tactile buttons make the controls easy to identify without looking away from your work.


Frame specifications

  • Frame width:
  • Frame depth:
  • Material/finish: Powdercoated steel RAL 9004 (black)
  • Height adjustment: 24-50"
  • Lifting capacity: 220 lbs
  • Operation: Included with the desk frame is a digital controller with three memory settings and built-in collision and anti-tilt protection. The tactile buttons ensure simple, intuitive, and safe operation.
  • Motor : ConSet’s powerful and dependable 1-motor system
Frame Color
Frame Style
C shape 23.6"
Add-Ons
No add-ons
Control Unit
Frame color:
Frame size:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
431-35 8B129
Description:
Standing Desk Frame | Width 129 cm | Black
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XBXXXLift column set, black$ 512,-$ 512,-
1501-XX XB055CFeet and brackets C60, black$ 130,-$ 130,-
1501-XX 8XPOWSPower box S$ 205,-$ 205,-
1SQ136480Traversset, 129 cm, neutral$ 82,-$ 82,-

Total
$ 929,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XBXXX77191715,005704142162217
501-XX XB055C681066,705704142162330
501-XX 8XPOWS25971,005704142161876
SQ136480127533,105704142136485
