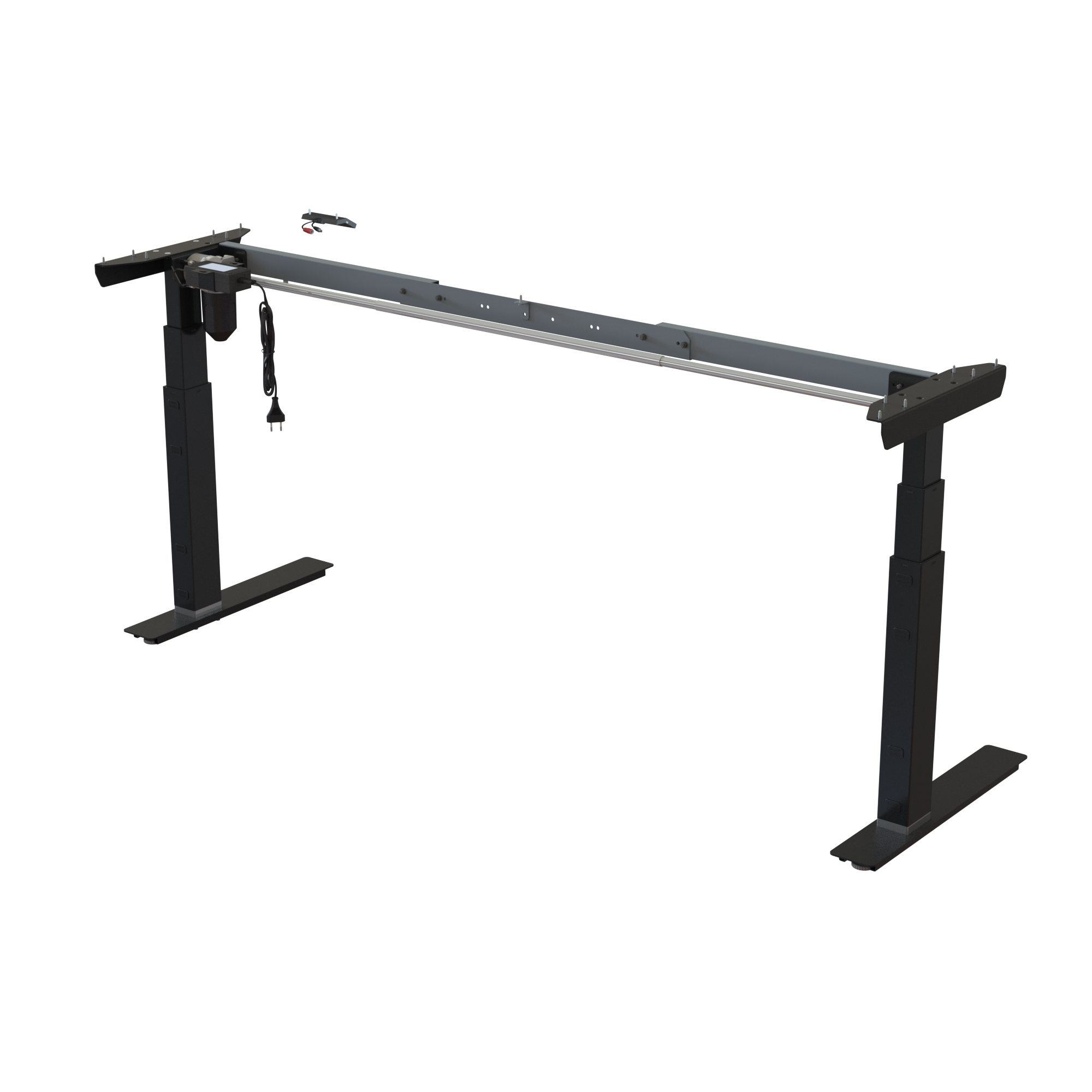

Standing Desk Frame | Width 132-172 cm | Black

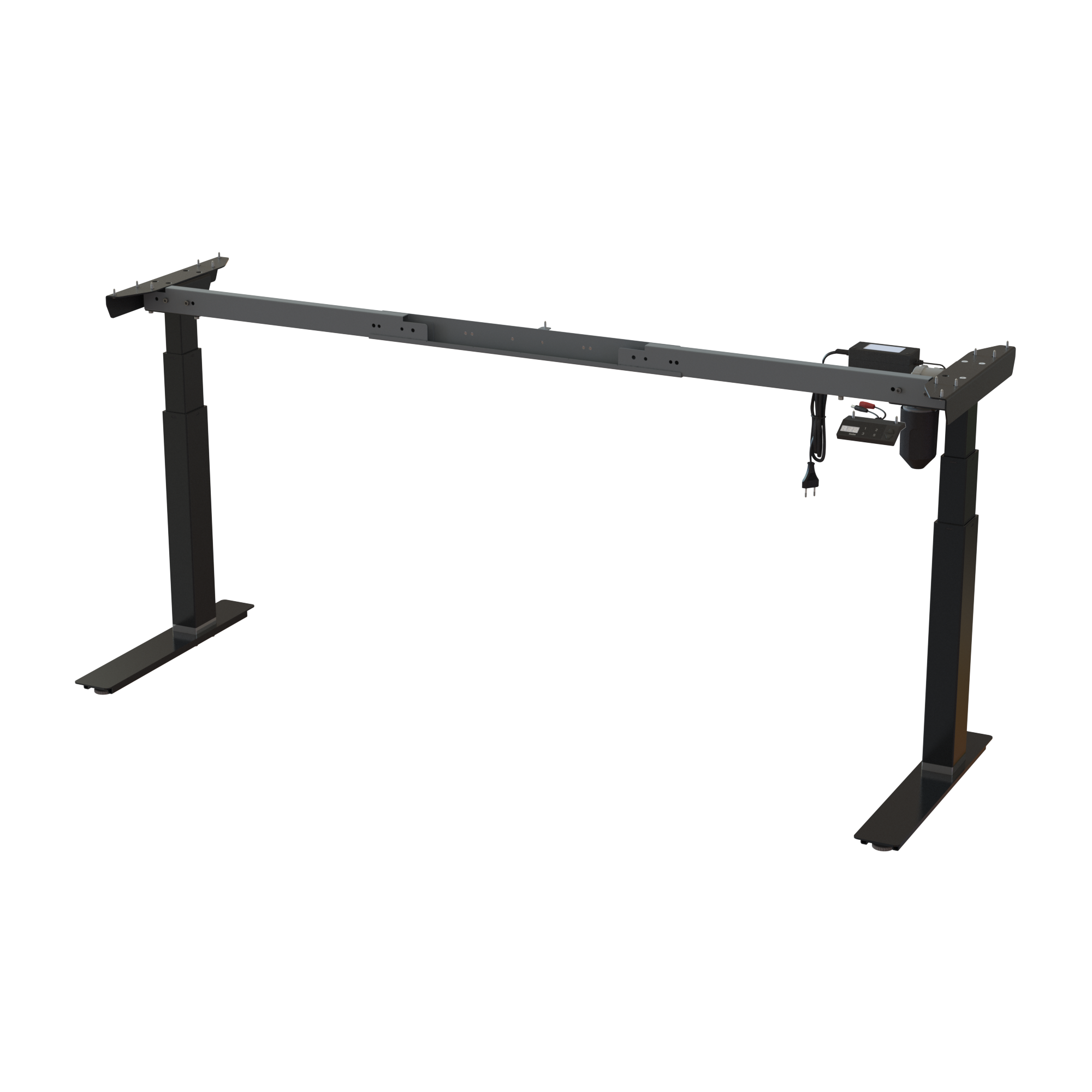

Sit-stand office base, Black powder-coated frame. Variable frame width 52.0–67.7 in. Height range 22.4–48.0 in. Dynamic capacity 220 lbs.
Sit-stand office base, Black powder-coated frame. Variable frame width 52.0–67.7 in. Height range 22.4–48.0 in. Dynamic capacity 220 lbs.
Standing Desk Frame | Width 132-172 cm | Black
Standing Desk Frame | Width 132-172 cm | Black
Standing Desk Frame | Width 132-172 cm | Black
Standing Desk Frame | Width 132-172 cm | Black
$ 955
Item no.: 431-35 8B132-172

Create a more accessible workspace with this slim C-frame height-adjustable desk frame. Its off-center column gives you maximum legroom, even with a reduced frame depth. The design contains an RAL 9004 (black) frame and a foot matched to the 24-inch desk depth. The base stroke is 24-50" without the 1.4-inch chrome ring, but adding the ring adjusts the height capabilities. It comes with a load capacity of 220 lbs and the desk frame can be fully put together in just 21 min. Designed for compliance and peace of mind, the desk frame meets ANSI/BIFMA G1-2013 standards with a height range of 22.6” to 48.7” that accommodates over 95% of users.

The digital controller includes three memory presets along with collision and anti-tilt protection. The tactile buttons allow the desk frame to be operated smoothly without visual attention.


Frame specifications

  • Frame width:
  • Frame depth:
  • Material/finish: Powdercoated steel RAL 9004 (black)
  • Height adjustment: 24-50"
  • Lifting capacity: 220 lbs
  • Operation: The desk frame is equipped with a digital controller featuring three memory presets, plus built-in collision and anti-tilt safety protection. The tactile buttons can easily be found by touch, making everyday operation simple without requiring visual attention.
  • Motor : ConSet’s efficient and reliable 1-motor system
Frame Color
Frame Style
C shape 23.6"
Add-Ons
No add-ons
Control Unit
Frame color:
Frame size:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
431-35 8B132-172
Description:
Standing Desk Frame | Width 132-172 cm | Black
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XBXXXLift column set, black$ 512,-$ 512,-
1501-XX XB055CFeet and brackets C60, black$ 130,-$ 130,-
1501-XX 8XPOWSPower box S$ 205,-$ 205,-
1SQ141850Traversset, 132-172 cm, neutral$ 108,-$ 108,-

Total
$ 955,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XBXXX77191715,005704142162217
501-XX XB055C681066,705704142162330
501-XX 8XPOWS25971,005704142161876
SQ141850100973,505704142141854
