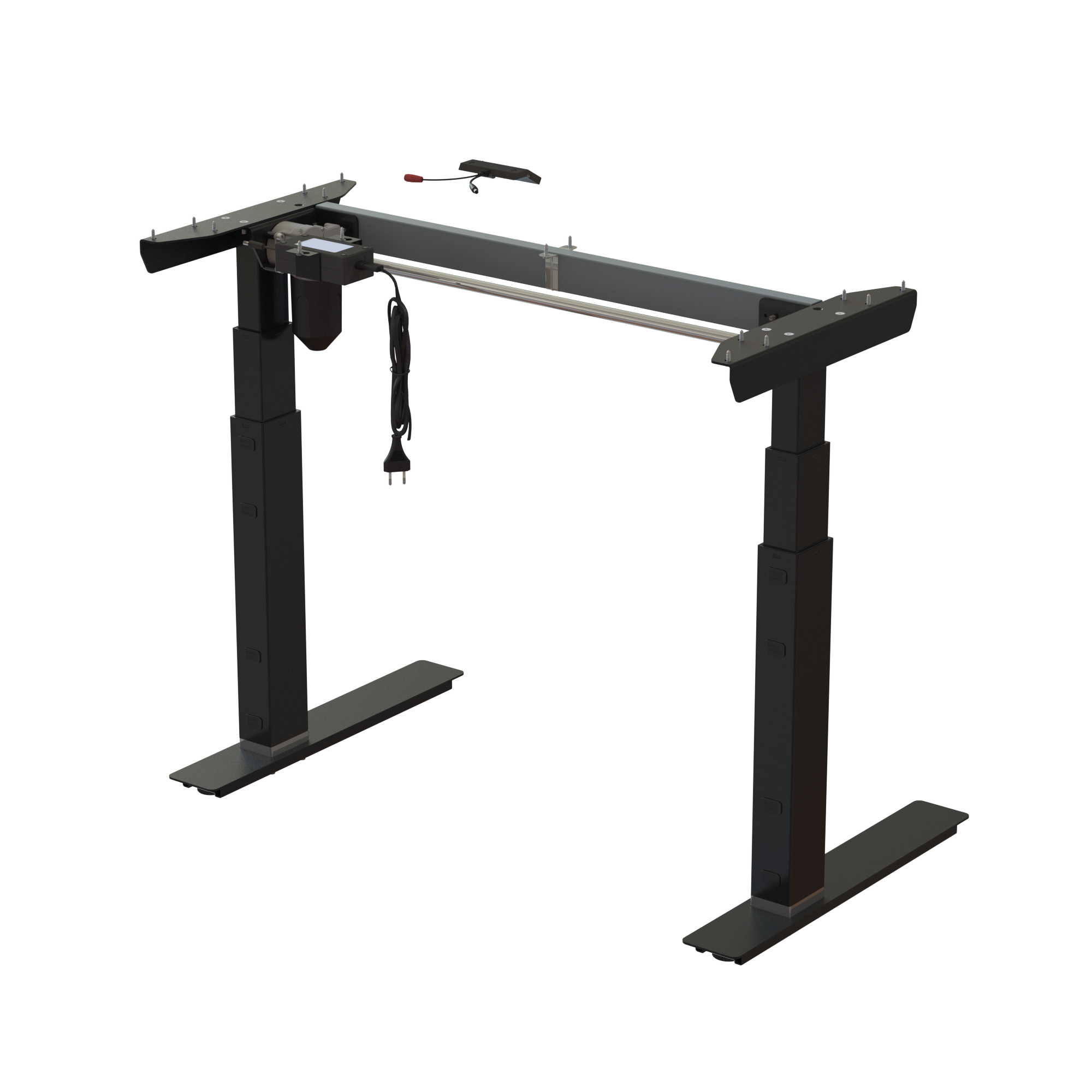

Standing Desk Frame | Width 092 cm | Black

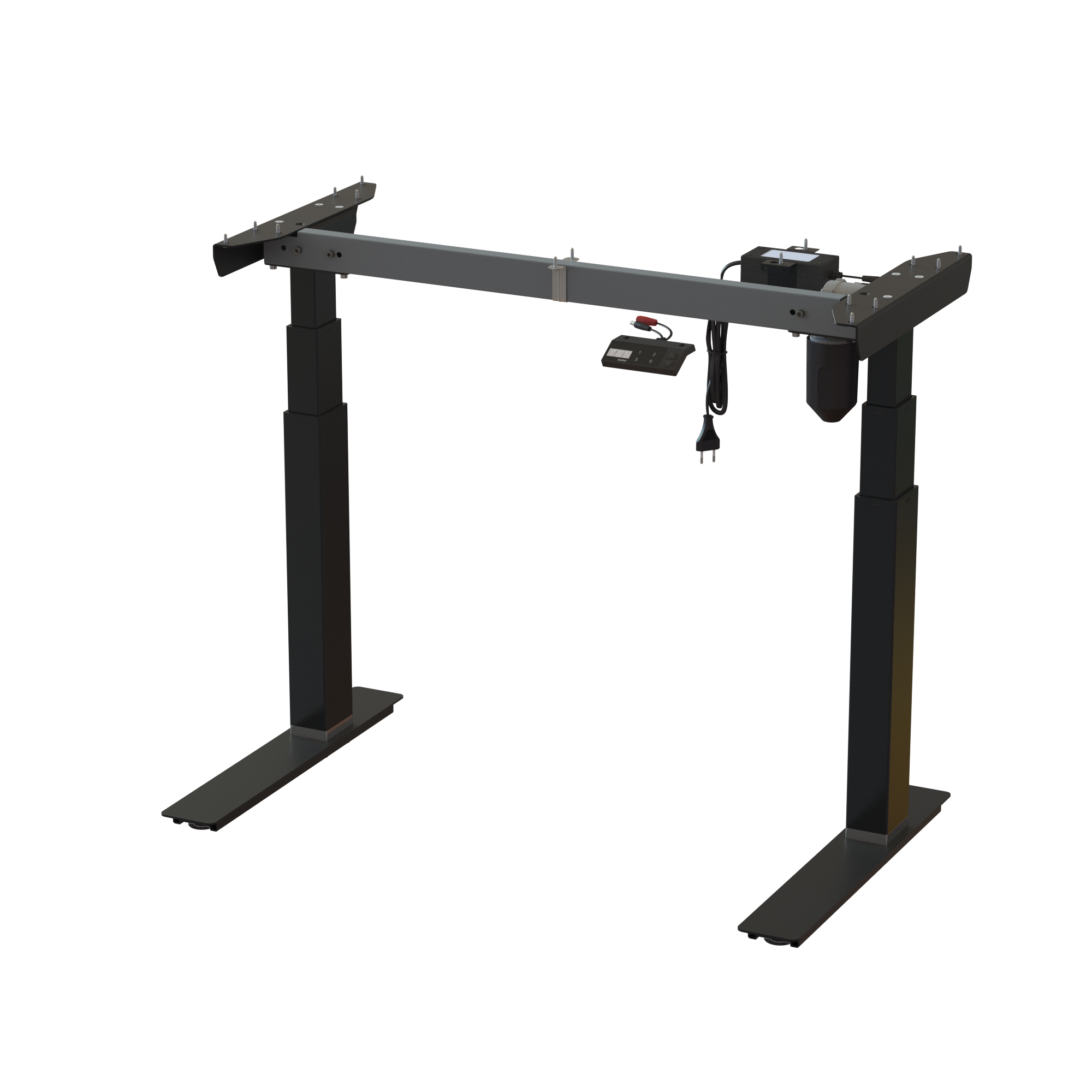

Electric desk base, Black powder-coated frame. Base width 36.2 in. Electric adjustment 22.4–48.0 in. Dynamic capacity 220 lbs.
Electric desk base, Black powder-coated frame. Base width 36.2 in. Electric adjustment 22.4–48.0 in. Dynamic capacity 220 lbs.
Standing Desk Frame | Width 092 cm | Black
Standing Desk Frame | Width 092 cm | Black
Standing Desk Frame | Width 092 cm | Black
Standing Desk Frame | Width 092 cm | Black
$ 929
Item no.: 431-35 8B092

If you need a C-frame sit-stand desk frame that prioritizes legroom on smaller depths, this model is the answer. The off-center column design enhances the feeling of space under the frame despite its slim profile. It comes with an RAL 9004 (black) frame and a foot length matched to the 24-inch desk depth. The unit delivers a base stroke of 22.6-48.7" without the 1.4-inch chrome ring on, but you can attach the ring to accommodate an extended range. It handles a load capacity of 220 lbs and is designed for an assembly time of just 14 min. Built to strict professional standards, the sit-stand desk frame is ANSI/BIFMA G1-2013 compliant, featuring a height range of 22.6” to 48.7” that fits over 95% of users.

The desk frame features a digital control panel with three memory presets and advanced safety functions. The tactile buttons make the controls easy to identify without looking away from your work.


Frame specifications

  • Frame width: 36.2"
  • Frame depth: 21.7"
  • Material/finish: Powdercoated steel RAL 9004 (black)
  • Height adjustment: 22.6-48.7"
  • Lifting capacity: 220 lbs
  • Operation: The desk frame is equipped with a digital controller featuring three programmable memory presets and integrated collision and anti-tilt protection. Tactile buttons provide easy, eyes-free operation.
  • Motor: ConSet’s robust and proven 1-motor solution
Frame Color
Frame Style
C shape 23.6"
Add-Ons
No add-ons
Control Unit
Frame color:
Frame size:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
431-35 8B092
Description:
Standing Desk Frame | Width 092 cm | Black
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XBXXXLift column set, black$ 512,-$ 512,-
1501-XX XB055CFeet and brackets C60, black$ 130,-$ 130,-
1501-XX 8XPOWSPower box S$ 205,-$ 205,-
1SQ141480Traversset, 92 cm, neutral$ 82,-$ 82,-

Total
$ 929,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XBXXX77191715,005704142162217
501-XX XB055C681066,705704142162330
501-XX 8XPOWS25971,005704142161876
SQ14148091531,895704142141489
