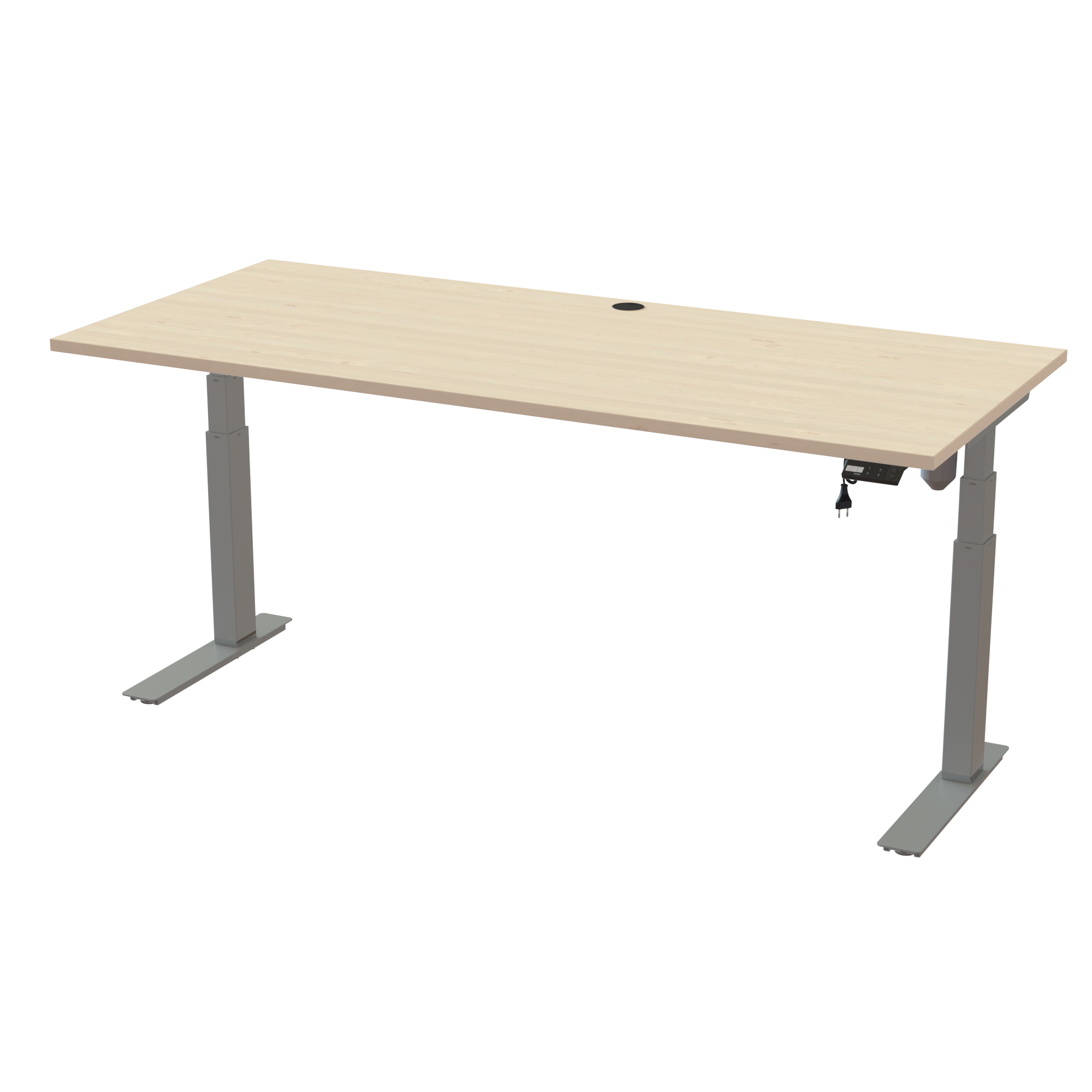

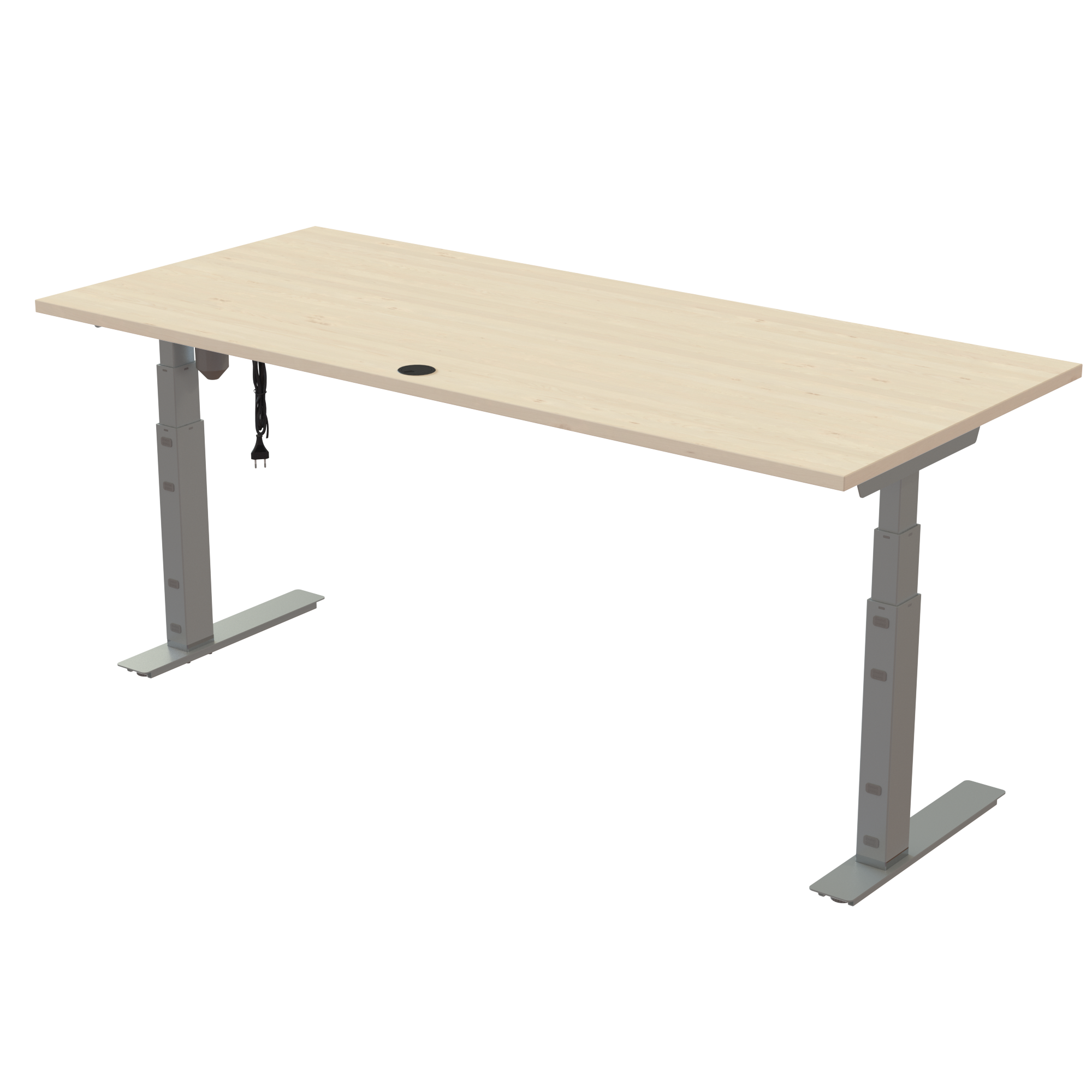

Standing Desk | 180x80 cm | Maple with silver frame

431-35 8S172 180-80S3 MM
431-35 8S172 180-80S3 MM
Standing Desk | 180x80 cm | Maple with silver frame
Standing Desk | 180x80 cm | Maple with silver frame
Standing Desk | 180x80 cm | Maple with silver frame
Standing Desk | 180x80 cm | Maple with silver frame
Standing Desk | 180x80 cm | Maple with silver frame
$ 1223
Item no.: 431-35 8S172 180-80S3 MM

With its narrow footprint and a fast 24 min assembly time, this dual-purpose sit-stand desk provides a modern, clutter-free look for a shallow 70.9 x 31.5" tabletop format. The chrome base ring highlights the transition to the floor as a key visual feature and design detail. It is also completely adjustable, meaning the 1.38" chrome ring can be attached to refine the 22.6-48.7" height stroke (measured without the ring) by 1.38". The desk conforms to ANSI/BIFMA G1-2013 with a height range of 22.6" to 48.7" that accommodates over 95% of users. Built with a dependable 220 lbs load capacity, it features an RAL 9006 (silver) frame color and an maple tabletop color with an melamine surface material.

The desk has a digital controller with three memory positions and built-in safety protection. The tactile buttons are easy to find by touch, so you don't have to look down to adjust the height.


Table top specifications

  • Dimensions : 70.9 x 31.5"
  • Core material: 1 inch chipboard, classified E0
  • Surface finish: maple melamine, the plastic grommet for cables is a standard inclusion.
  • Edges: 0.08 inch ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9006 (silver)
  • Height adjustment: 22.6-48.7"
  • Lifting capacity: 220 lbs
  • Operation: With three memory positions and integrated safety sensors, the digital controller makes desk adjustments seamless. The tactile arrow buttons are easy to identify by feel.
  • Motor: ConSet’s stable 1-motor mechanism with documented reliability
Frame Color
Silver
Tabletop Color
Frame Style
C shape 23.6"
Add-Ons
No add-ons
Control Unit
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
431-35 8S172 180-80S3 MM
Description:
Standing Desk | 180x80 cm | Maple with silver frame
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XSXXXLift column set, silver$ 512,-$ 512,-
1501-XX XS055CFeet and brackets C60, silver$ 130,-$ 130,-
1501-XX 8XPOWSPower box S$ 205,-$ 205,-
1SQ138890Traversset, 172 cm, neutral$ 82,-$ 82,-
1180-80S3 MMTabletop | 180x80 cm | Maple$ 294,-$ 294,-

Total
$ 1223,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XSXXX77191715,005704142162484
501-XX XS055C681066,705704142162262
501-XX 8XPOWS25971,005704142161876
SQ138890171534,205704142138892
180-80S3 MM18787426,005704142149881
