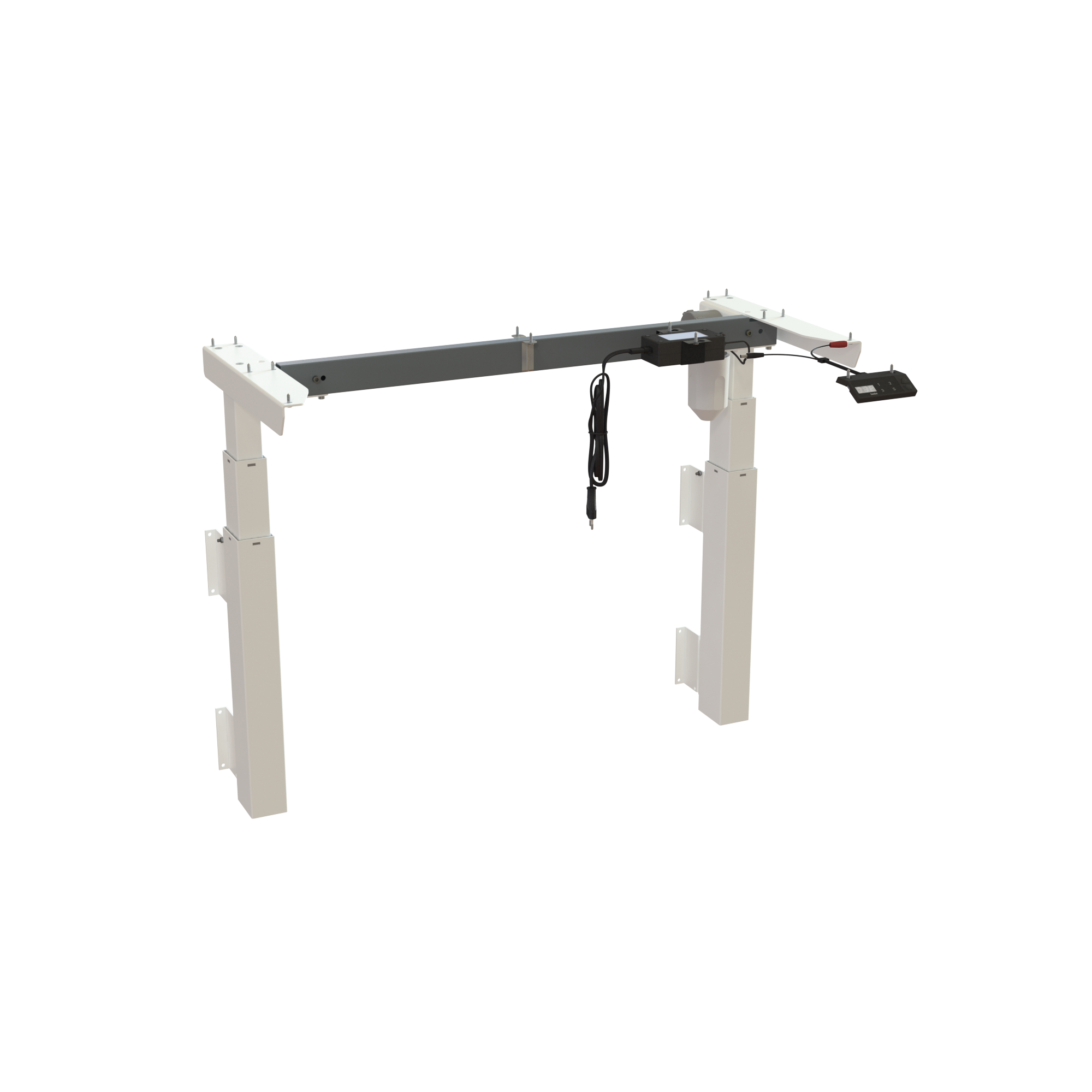

Standing Desk Frame | Width 092 cm | White

491-35 8W092
491-35 8W092
Standing Desk Frame | Width 092 cm | White
Standing Desk Frame | Width 092 cm | White
Standing Desk Frame | Width 092 cm | White
$ 873
Item no.: 491-35 8W092

This wall-mounted, two-leg height-adjustable desk frame combines exceptional stability with space-saving design. Featuring a simple wall-mounting system that requires only 30 min to assemble, it completely frees up floor space to fit seamlessly into any environment. The frame offers a smooth stroke of 24-50", comes finished in sleek RAL 9016 (white), and boasts a robust lifting capacity of 132 lbs. Designed with user-friendliness in mind, the desk frame complies with ANSI/BIFMA G1-2013 across a 22.6”–48.7” span that accommodates over 95% of operators.

The desk frame is equipped with a digital controller featuring three programmable memory presets and integrated collision and anti-tilt protection. Tactile buttons provide easy, eyes-free operation.


Frame specifications

  • Frame width:
  • Frame depth:
  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 24-50"
  • Lifting capacity: 132 lbs
  • Operation: The desk frame features a digital control panel with three memory presets and advanced safety functions. The tactile buttons make the controls easy to identify without looking away from your work.
  • Motor : ConSet’s efficient and reliable 1-motor system
Frame Color
White
Frame Style
Wall
Add-Ons
No add-ons
Control Unit
Frame color:
Frame size:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
491-35 8W092
Description:
Standing Desk Frame | Width 092 cm | White
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XWXXXLift column set, white$ 512,-$ 512,-
1501-39 XW400501-39 Arm Set, white$ 43,-$ 43,-
1501-X XWW02Wall mount, white$ 31,-$ 31,-
1501-XX 8XPOWSPower box S$ 205,-$ 205,-
1SQ141480Traversset, 92 cm, neutral$ 82,-$ 82,-

Total
$ 873,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XWXXX77191715,005704142161616
501-39 XW40040752,205704142161692
501-X XWW02211372,005704142161647
501-XX 8XPOWS25971,005704142161876
SQ14148091531,895704142141489
Contact me about this product
I am/We are
Country
Name/FirmName
Postal
Email
Phone
Comment
Control code
Complete desks
  • 491-35 8W092 100-80S3 WM
    $ 1022
  • 491-35 8W092 100-80S3 VM
    $ 1022
  • 491-35 8W092 100-80S3 BM
    $ 1022
