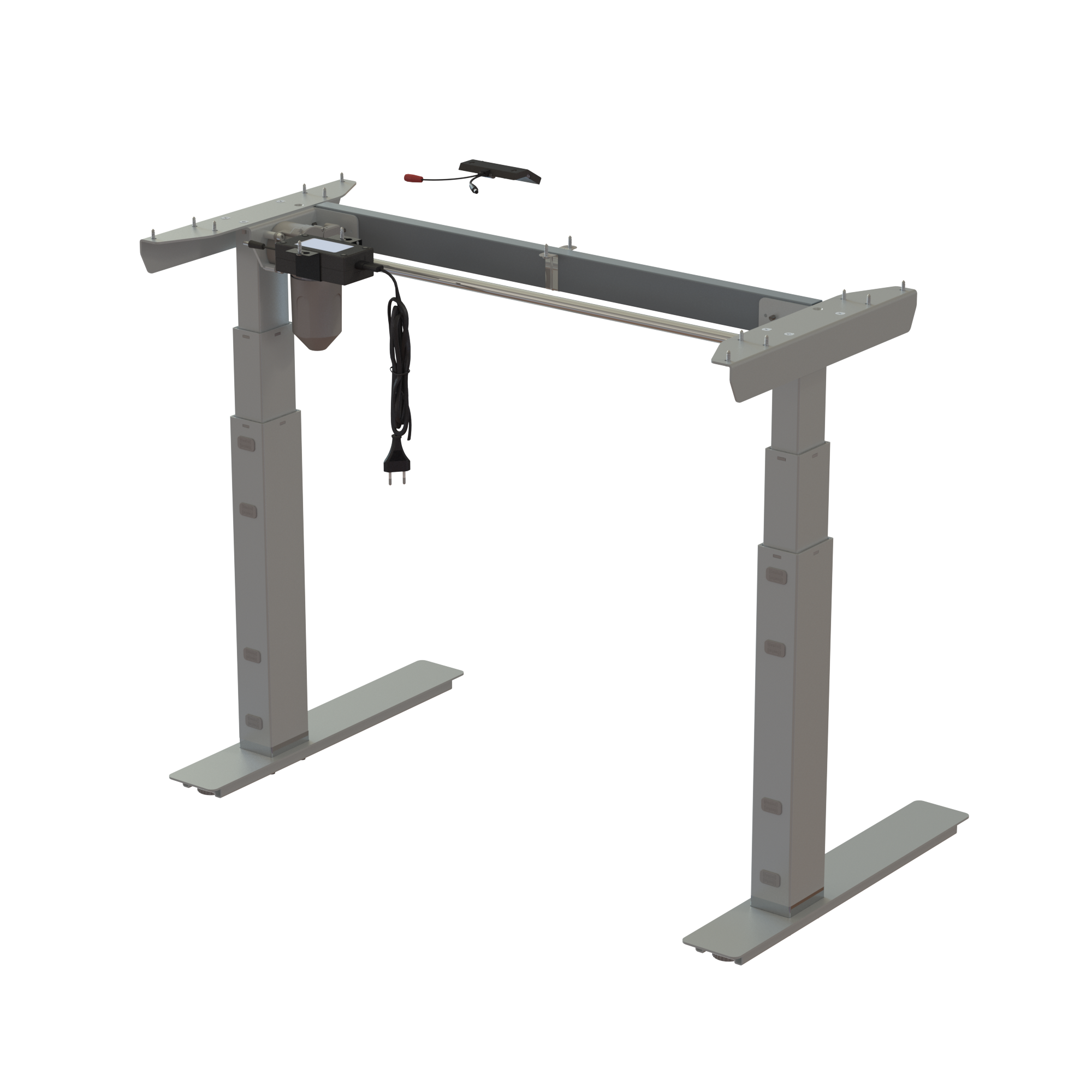

Standing Desk Frame | Width 092 cm | Silver

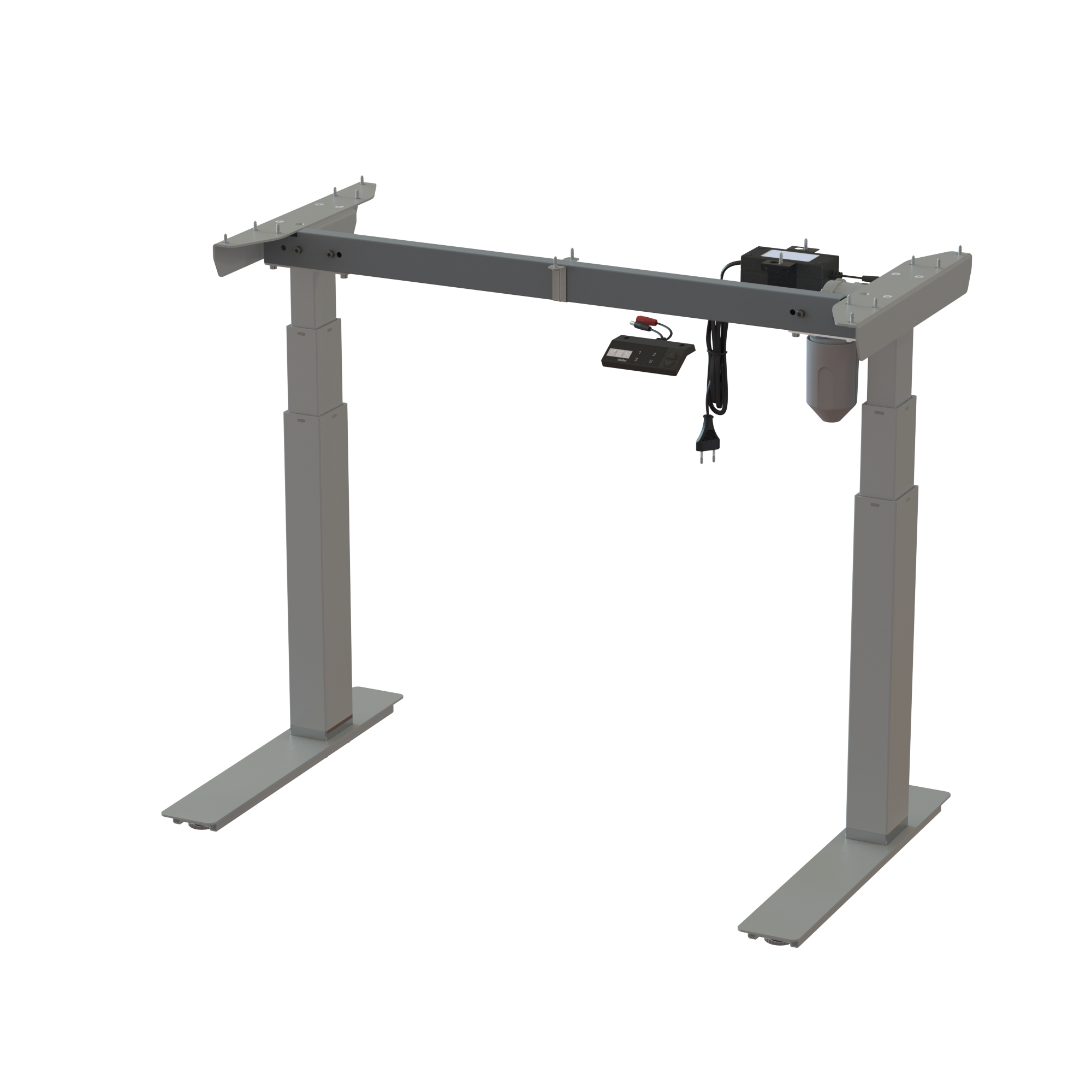

2-column sit-stand frame, Silver powder-coated frame. Frame width 36.2 in. Adjustable interval 22.4–48.0 in. Load capacity 220 lbs.
2-column sit-stand frame, Silver powder-coated frame. Frame width 36.2 in. Adjustable interval 22.4–48.0 in. Load capacity 220 lbs.
Standing Desk Frame | Width 092 cm | Silver
Standing Desk Frame | Width 092 cm | Silver
Standing Desk Frame | Width 092 cm | Silver
$ 929
Item no.: 431-35 8S092

Optimize your office with this slim C-frame sit-stand desk frame, designed for those requiring a reduced depth. The off-center column promotes an open feel and maximizes your legroom. Matched to the 24-inch desk depth, this model includes an RAL 9006 (silver) frame. The base stroke is 24-50" without the 1.4-inch chrome ring attached at the base, but it can be added to extend the overall range. It provides a load capacity of 220 lbs and is designed to be assembled in just 14 min. Meeting rigorous commercial standards, the desk frame satisfies ANSI/BIFMA G1-2013 with a height profile of 22.6” to 48.7” that fits over 95% of users.

The desk frame is equipped with a digital controller featuring three memory presets, plus built-in collision and anti-tilt safety protection. The tactile buttons can easily be found by touch, making everyday operation simple without requiring visual attention.


Frame specifications

  • Frame width:
  • Frame depth:
  • Material/finish: Powdercoated steel RAL 9006 (silver)
  • Height adjustment: 24-50"
  • Lifting capacity: 220 lbs
  • Operation: Included with the desk frame is a digital controller with three memory settings and built-in collision and anti-tilt protection. The tactile buttons ensure simple, intuitive, and safe operation.
  • Motor : ConSet’s robust and proven 1-motor solution
Frame Color
Silver
Frame Style
C shape 23.6"
Add-Ons
No add-ons
Control Unit
Frame color:
Frame size:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
431-35 8S092
Description:
Standing Desk Frame | Width 092 cm | Silver
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XSXXXLift column set, silver$ 512,-$ 512,-
1501-XX XS055CFeet and brackets C60, silver$ 130,-$ 130,-
1501-XX 8XPOWSPower box S$ 205,-$ 205,-
1SQ141480Traversset, 92 cm, neutral$ 82,-$ 82,-

Total
$ 929,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XSXXX77191715,000
501-XX XS055C681066,705704142162262
501-XX 8XPOWS25971,005704142161876
SQ14148091531,895704142141489
Contact me about this product
I am/We are
Country
Name/FirmName
Postal
Email
Phone
Comment
Control code
Complete desks
  • 431-35 8S092 100-80S3 BM
    $ 1078
  • 431-35 8S092 100-80S3 WM
    $ 1078
  • 431-35 8S092 100-80S3 VM
    $ 1078
