Standing Desk Frame | Width 132-172 cm | Silver

Electric desk base, Silver powder-coated frame. Adjustable width 52.0–67.7 in. Adjustable height 22.4–48.0 in. Dynamic capacity 220 lbs.
Electric desk base, Silver powder-coated frame. Adjustable width 52.0–67.7 in. Adjustable height 22.4–48.0 in. Dynamic capacity 220 lbs.
Standing Desk Frame | Width 132-172 cm | Silver
Standing Desk Frame | Width 132-172 cm | Silver
Standing Desk Frame | Width 132-172 cm | Silver
$ 955
Item no.: 431-35 8S132-172

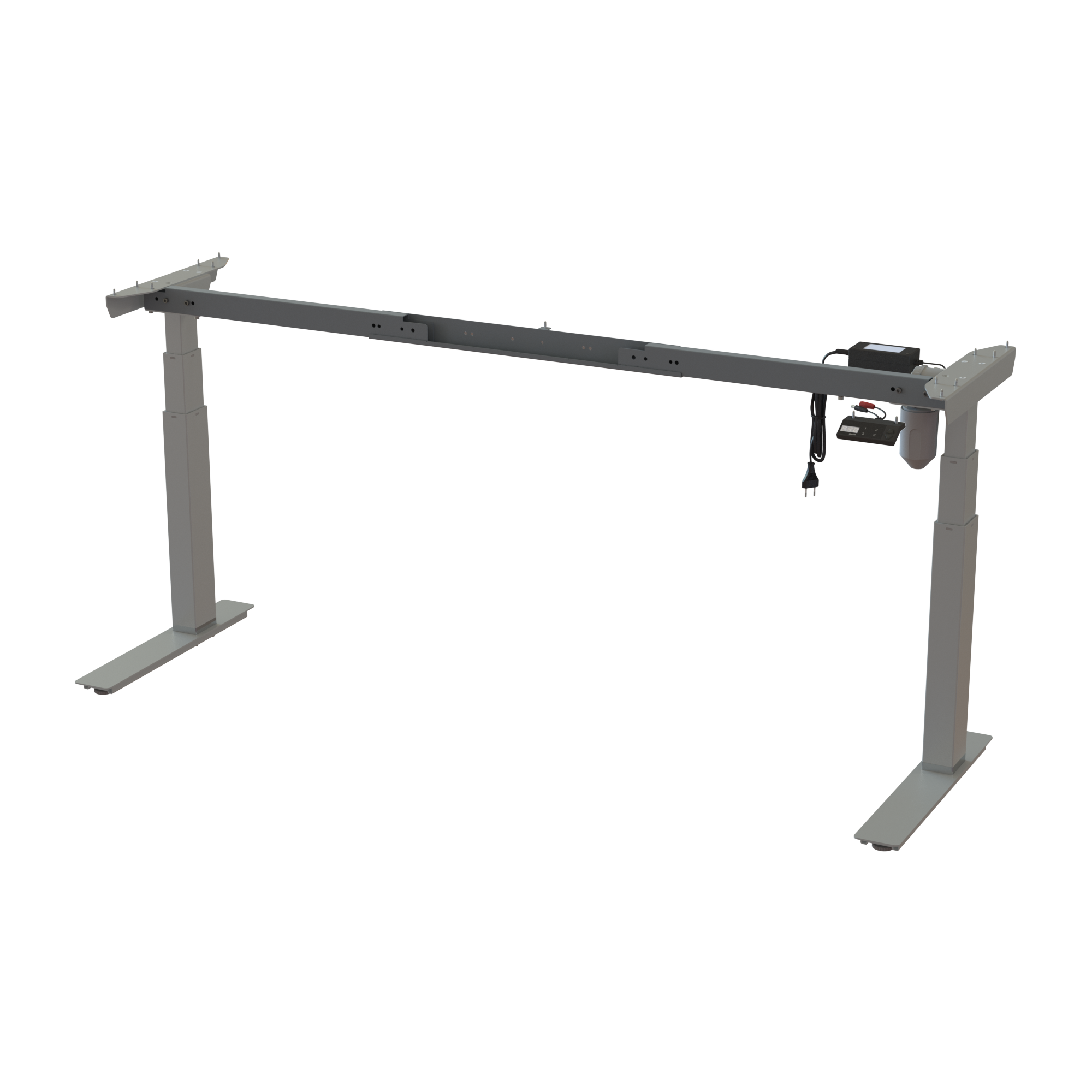

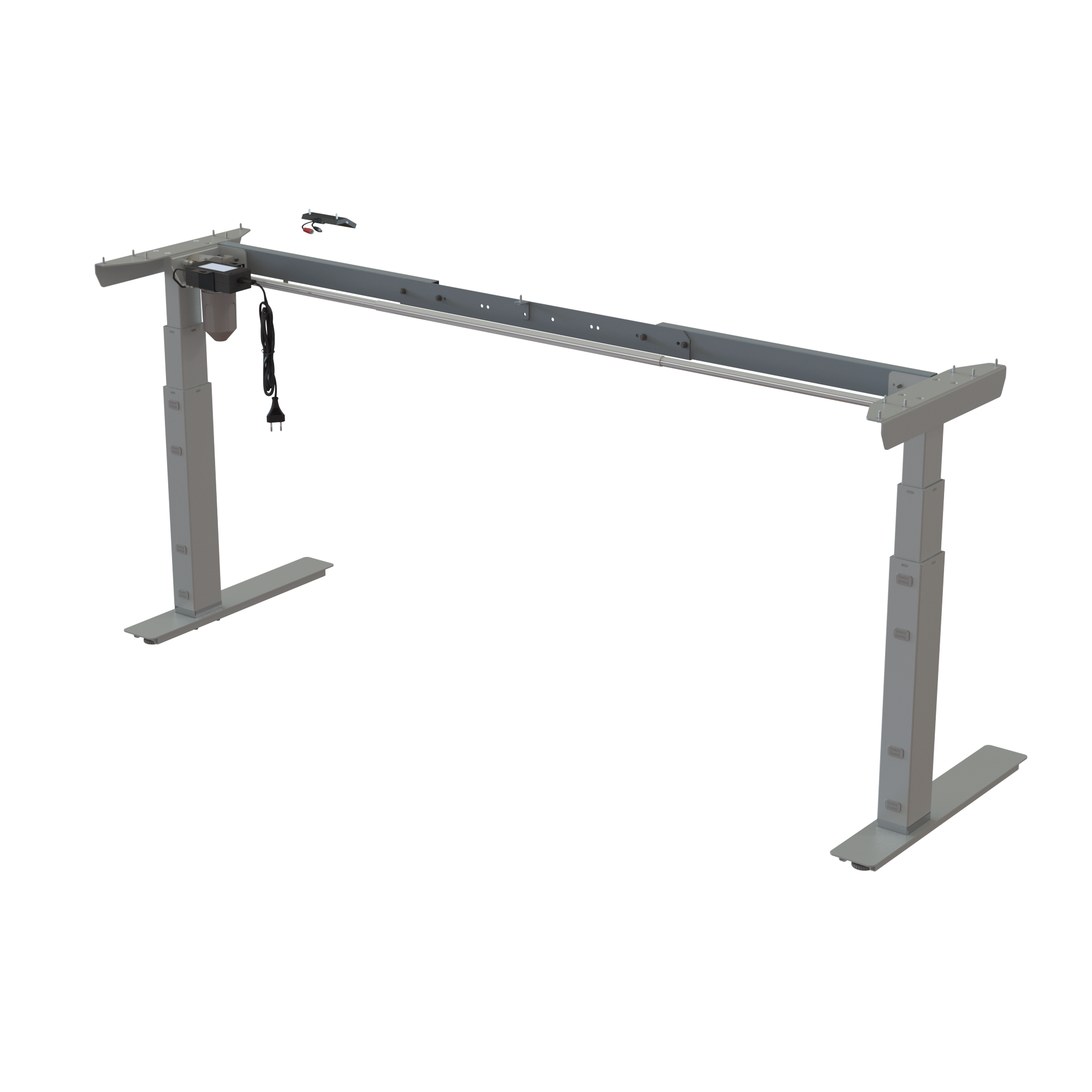

This C-frame sit-stand desk frame is built specifically to ensure plenty of room for your legs in limited-depth environments. The off-center column configuration offers a more open workspace experience. It includes an RAL 9006 (silver) frame and a foot length matched to the 24-inch desk depth. With the 35 mm chrome ring attached at the base, the range is extended, whereas the base stroke is 22.6-48.7" without it. The desk frame is rated for a load capacity of 220 lbs and is assembled in 21 min. Engineered to rigorous standards, the sit-stand desk frame is ANSI/BIFMA G1-2013 compliant, boasting a 22.6” to 48.7” operating height that fits over 95% of users.

The desk frame is equipped with a digital controller featuring three programmable memory presets and integrated collision and anti-tilt protection. Tactile buttons provide easy, eyes-free operation.


Frame specifications

  • Frame width: 67.7"
  • Frame depth: 21.7"
  • Material/finish: Powdercoated steel RAL 9006 (silver)
  • Height adjustment: 22.6-48.7"
  • Lifting capacity: 220 lbs
  • Operation: The desk frame comes standard with a digital controller offering three memory presets. The tactile up and down buttons make everyday operation smooth, easy, and intuitive.
  • Motor: ConSet’s tested and reliable 1-motor drive solution
Frame Color
Silver
Frame Style
C shape 23.6"
Add-Ons
No add-ons
Control Unit
Frame color:
Frame size:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
431-35 8S132-172
Description:
Standing Desk Frame | Width 132-172 cm | Silver
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XSXXXLift column set, silver$ 512,-$ 512,-
1501-XX XS055CFeet and brackets C60, silver$ 130,-$ 130,-
1501-XX 8XPOWSPower box S$ 205,-$ 205,-
1SQ141850Traversset, 132-172 cm, neutral$ 108,-$ 108,-

Total
$ 955,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XSXXX77191715,005704142162484
501-XX XS055C681066,705704142162262
501-XX 8XPOWS25971,005704142161876
SQ141850100973,505704142141854
Contact me about this product
I am/We are
Country
Name/FirmName
Postal
Email
Phone
Comment
Control code
