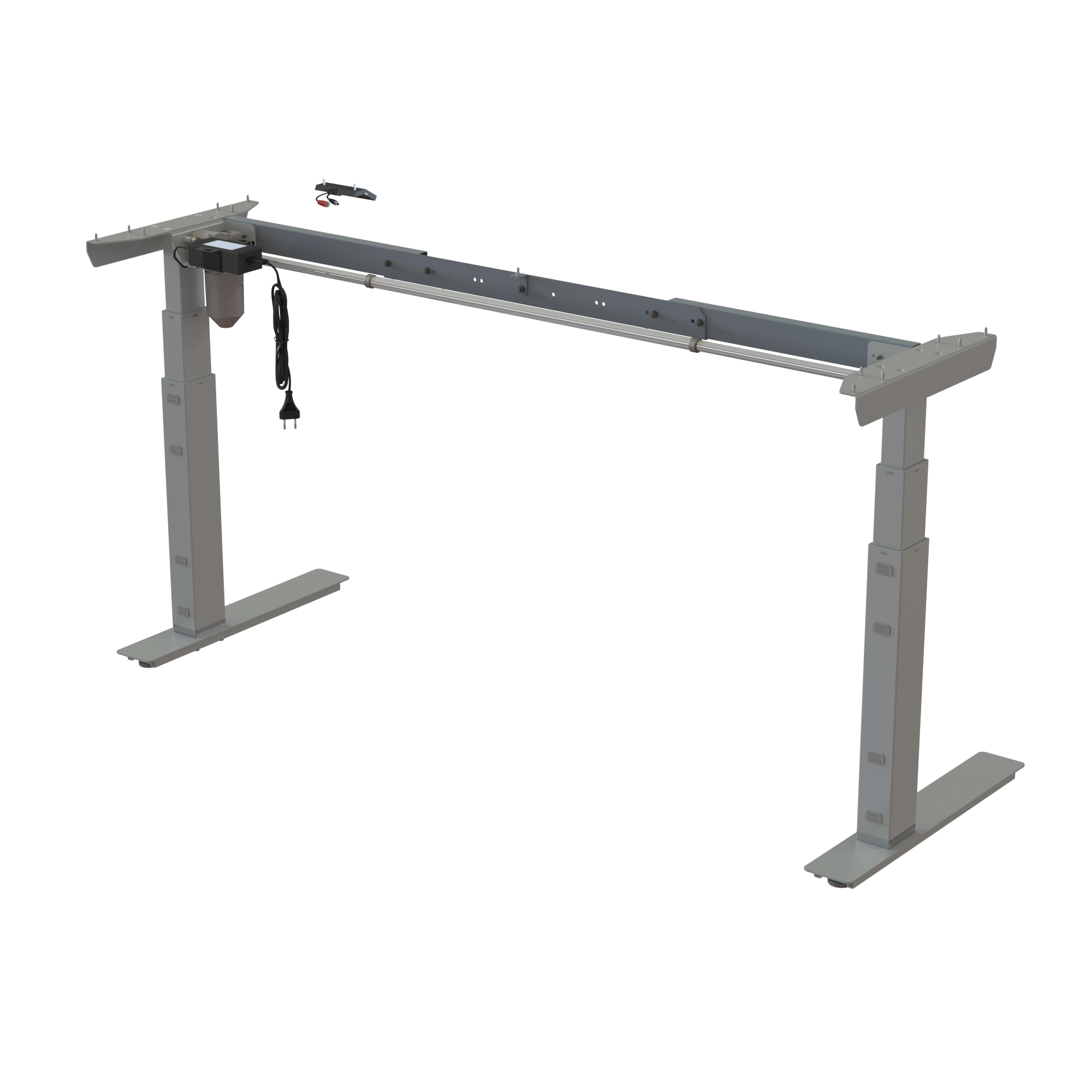

Standing Desk Frame | Width 112-152 cm | Silver

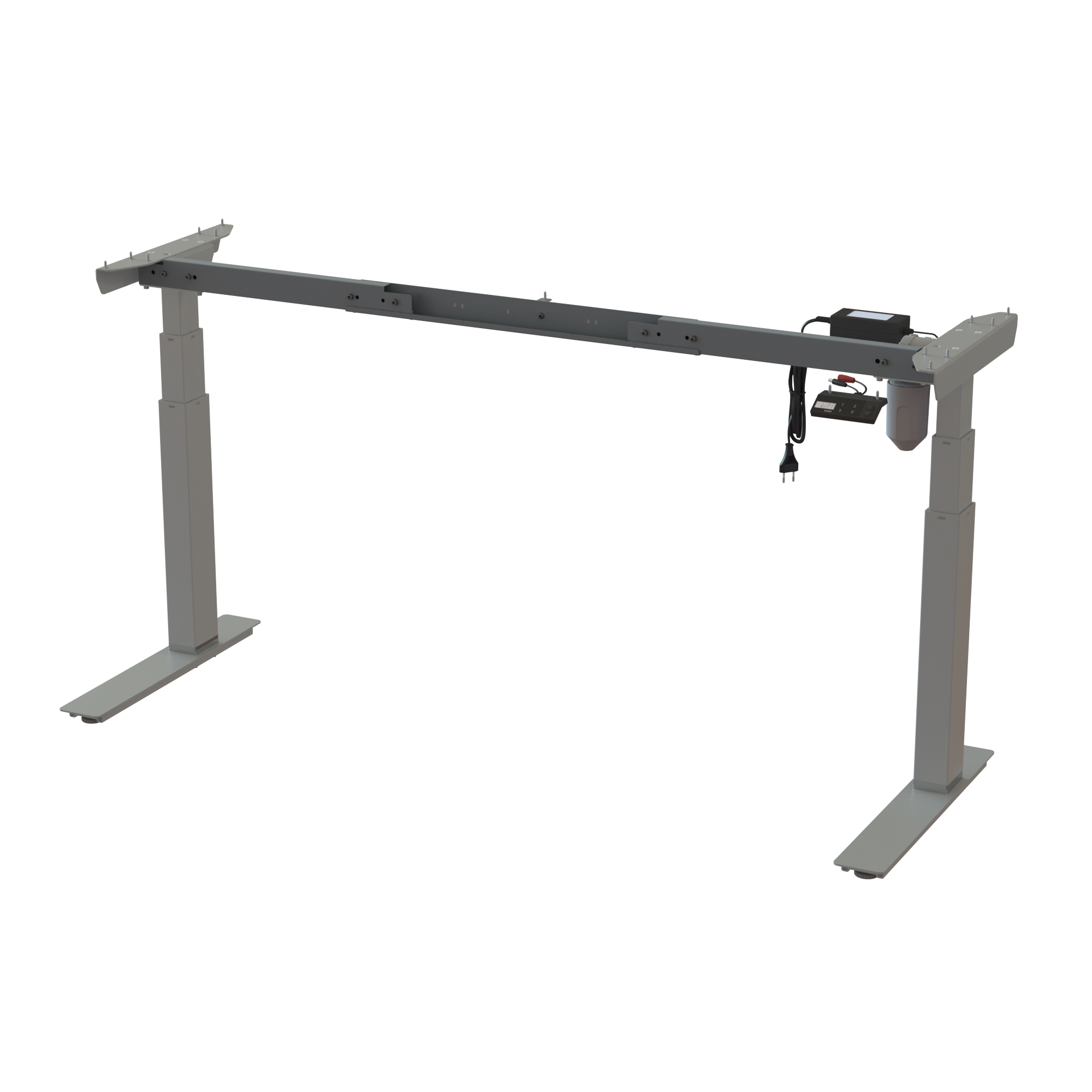

Ergonomic desk stand, coated in Silver. Variable width 44.1–59.8 in. Height range 22.4–48.0 in. Max load 220 lbs.
Ergonomic desk stand, coated in Silver. Variable width 44.1–59.8 in. Height range 22.4–48.0 in. Max load 220 lbs.
Standing Desk Frame | Width 112-152 cm | Silver
Standing Desk Frame | Width 112-152 cm | Silver
Standing Desk Frame | Width 112-152 cm | Silver
$ 955
Item no.: 431-35 8S112-152

This C-frame sit-stand desk frame is built specifically to ensure plenty of room for your legs in limited-depth environments. The off-center column configuration offers a more open workspace experience. It includes an RAL 9006 (silver) frame and a foot length matched to the 24-inch desk depth. With the 35 mm chrome ring attached at the base, the range is extended, whereas the base stroke is 22.6-48.7" without it. The desk frame is rated for a load capacity of 220 lbs and is assembled in 20 min. Engineered to rigorous standards, the sit-stand desk frame is ANSI/BIFMA G1-2013 compliant, boasting a 22.6” to 48.7” operating height that fits over 95% of users.

Included with the desk frame is a digital controller with three memory settings and built-in collision and anti-tilt protection. The tactile buttons ensure simple, intuitive, and safe operation.


Frame specifications

  • Frame width: 59.8"
  • Frame depth: 21.7"
  • Material/finish: Powdercoated steel RAL 9006 (silver)
  • Height adjustment: 22.6-48.7"
  • Lifting capacity: 220 lbs
  • Operation: The desk frame features a digital control panel with three memory presets and advanced safety functions. The tactile buttons make the controls easy to identify without looking away from your work.
  • Motor: ConSet’s efficient and reliable 1-motor system
Frame Color
Silver
Frame Style
C shape 23.6"
Add-Ons
No add-ons
Control Unit
Frame color:
Frame size:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
431-35 8S112-152
Description:
Standing Desk Frame | Width 112-152 cm | Silver
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XSXXXLift column set, silver$ 512,-$ 512,-
1501-XX XS055CFeet and brackets C60, silver$ 130,-$ 130,-
1501-XX 8XPOWSPower box S$ 205,-$ 205,-
1SQ137800Traversset, 112-152 cm, neutral$ 108,-$ 108,-

Total
$ 955,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XSXXX77191715,005704142162484
501-XX XS055C681066,705704142162262
501-XX 8XPOWS25971,005704142161876
SQ13780066973,405704142137802
