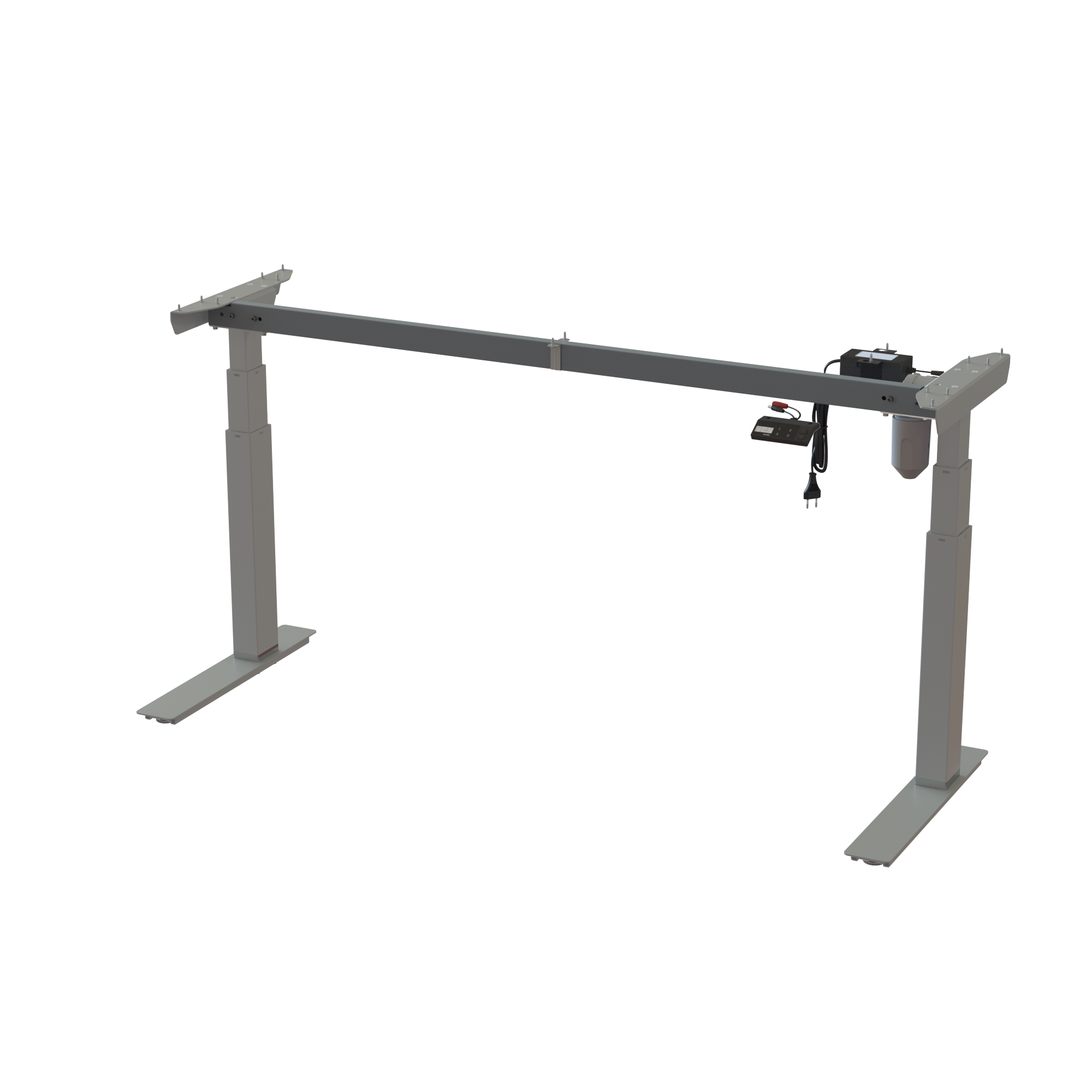

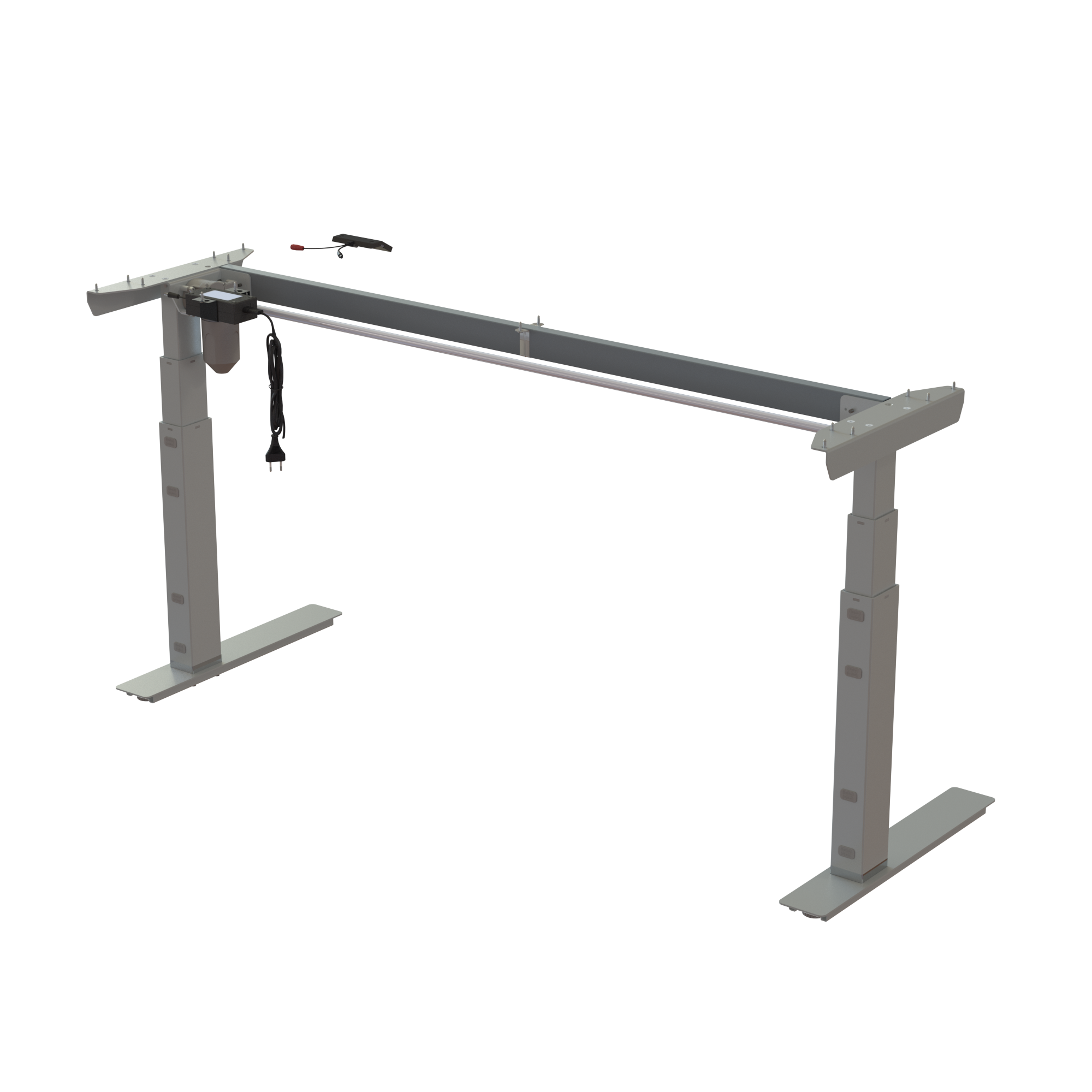

Standing Desk Frame | Width 152 cm | Silver

2-leg adjustable base, coated in Silver. Frame width 59.8 in. Height range 22.4–48.0 in. Max load 220 lbs.
2-leg adjustable base, coated in Silver. Frame width 59.8 in. Height range 22.4–48.0 in. Max load 220 lbs.
Standing Desk Frame | Width 152 cm | Silver
Standing Desk Frame | Width 152 cm | Silver
Standing Desk Frame | Width 152 cm | Silver
$ 929
Item no.: 431-35 8S152

If you need a C-frame sit-stand desk frame that prioritizes legroom on smaller depths, this model is the answer. The off-center column design enhances the feeling of space under the frame despite its slim profile. It comes with an RAL 9006 (silver) frame and a foot length matched to the 24-inch desk depth. The unit delivers a base stroke of 22.6-48.7" without the 1.4-inch chrome ring on, but you can attach the ring to accommodate an extended range. It handles a load capacity of 220 lbs and is designed for an assembly time of just 16 min. Built to strict professional standards, the sit-stand desk frame is ANSI/BIFMA G1-2013 compliant, featuring a height range of 22.6” to 48.7” that fits over 95% of users.

The desk frame comes standard with a digital controller offering three memory presets. The tactile up and down buttons make everyday operation smooth, easy, and intuitive.


Frame specifications

  • Frame width: 59.8"
  • Frame depth: 21.7"
  • Material/finish: Powdercoated steel RAL 9006 (silver)
  • Height adjustment: 22.6-48.7"
  • Lifting capacity: 220 lbs
  • Operation: The desk frame is supplied with a digital controller featuring three memory presets and integrated safety functions. The tactile buttons provide distinct feedback and are easy to operate entirely by touch.
  • Motor: ConSet’s strong and tried-and-tested 1-motor solution
Frame Color
Silver
Frame Style
C shape 23.6"
Add-Ons
No add-ons
Control Unit
Frame color:
Frame size:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
431-35 8S152
Description:
Standing Desk Frame | Width 152 cm | Silver
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XSXXXLift column set, silver$ 512,-$ 512,-
1501-XX XS055CFeet and brackets C60, silver$ 130,-$ 130,-
1501-XX 8XPOWSPower box S$ 205,-$ 205,-
1SQ134460Traversset, 152 cm, neutral$ 82,-$ 82,-

Total
$ 929,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XSXXX77191715,005704142162484
501-XX XS055C681066,705704142162262
501-XX 8XPOWS25971,005704142161876
SQ134460151533,105704142134467
