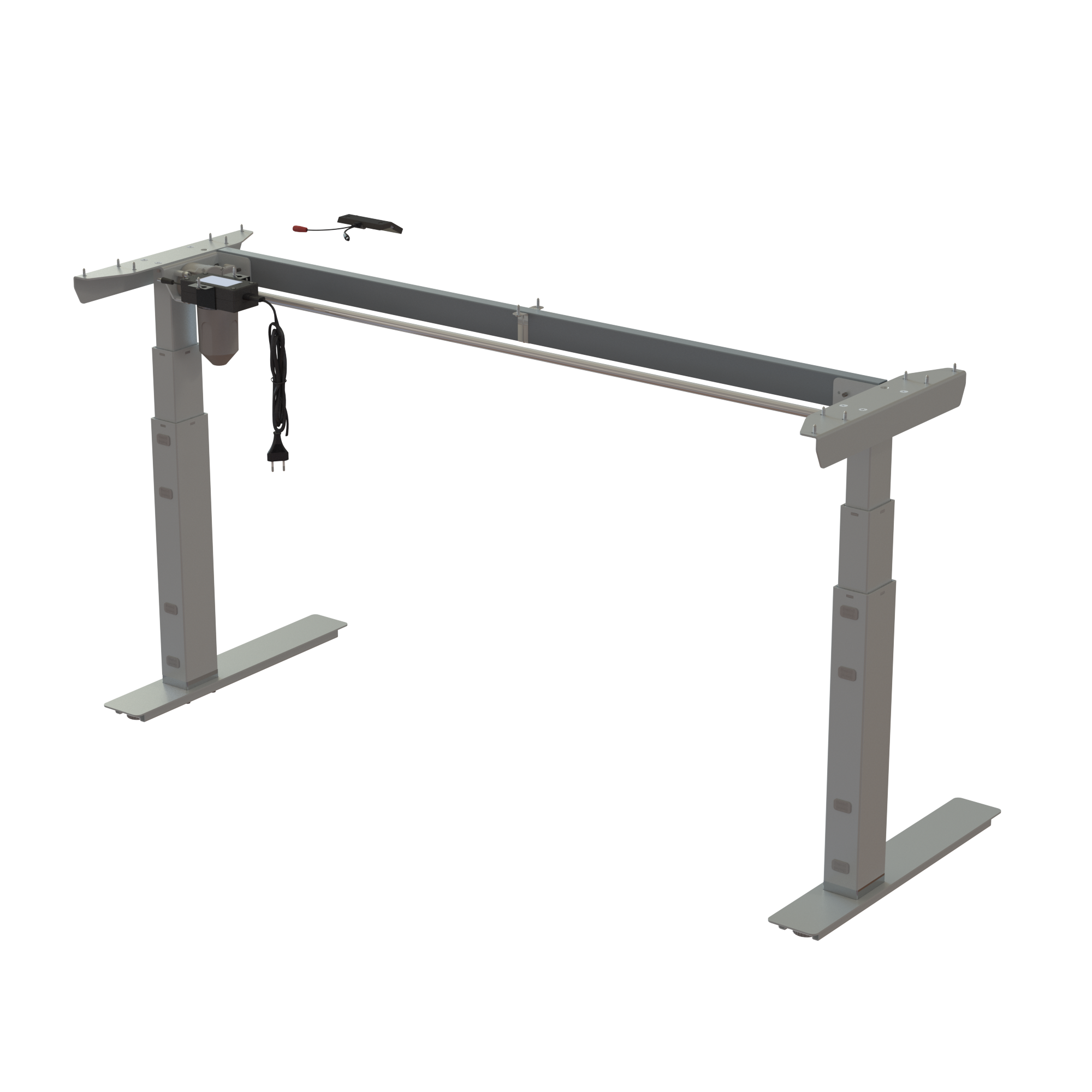

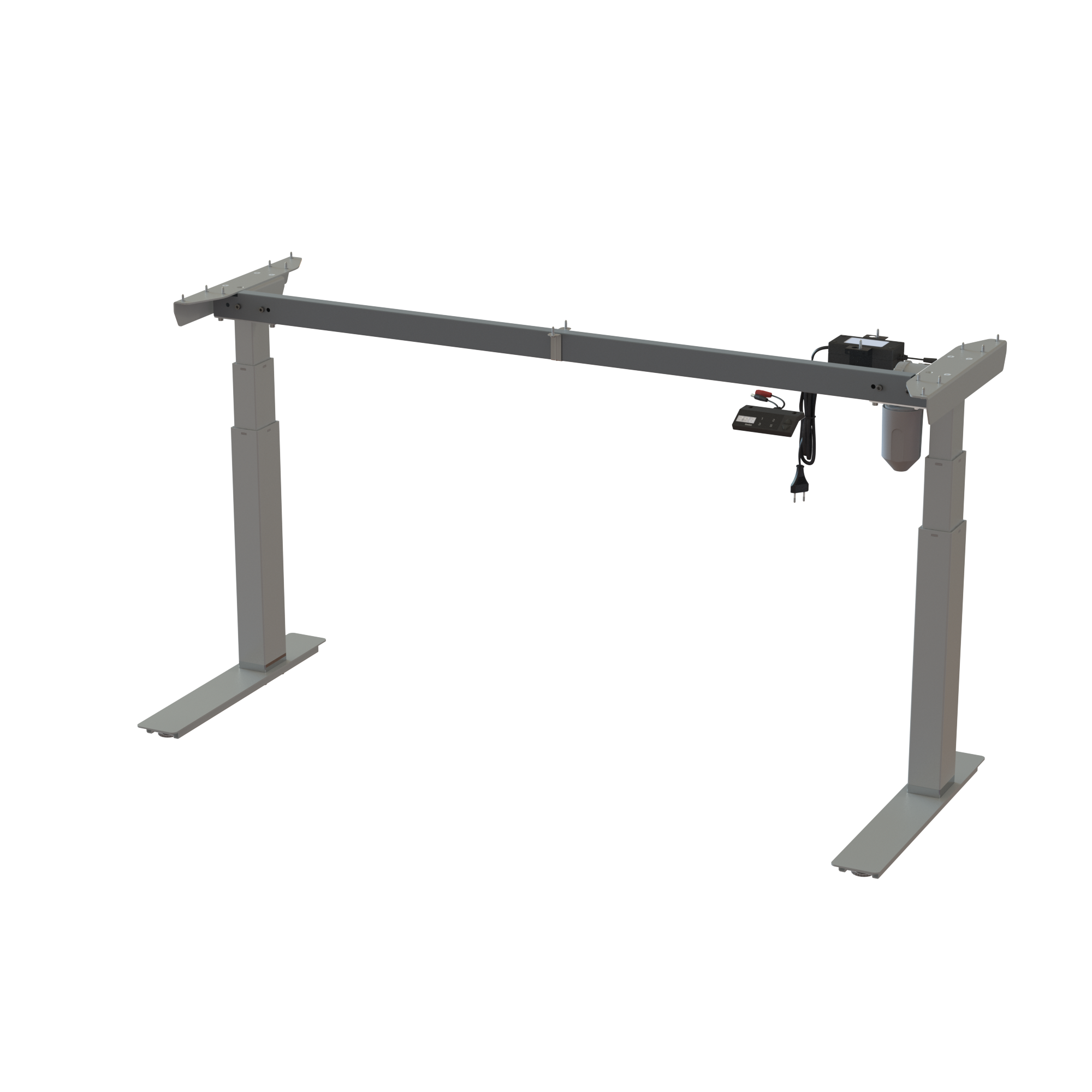

Standing Desk Frame | Width 142 cm | Silver

Silver 2-Leg Base: 56 inch wide frame. Height adjusts 22.6-48.7 inches. Heavy-duty steel construction. Lifts 220.5 lbs.
Silver 2-Leg Base: 56 inch wide frame. Height adjusts 22.6-48.7 inches. Heavy-duty steel construction. Lifts 220.5 lbs.
Standing Desk Frame | Width 142 cm | Silver
Standing Desk Frame | Width 142 cm | Silver
Standing Desk Frame | Width 142 cm | Silver
$ 929
Item no.: 431-35 8S142

If you need a C-frame sit-stand desk frame that prioritizes legroom on smaller depths, this model is the answer. The off-center column design enhances the feeling of space under the frame despite its slim profile. It comes with an RAL 9006 (silver) frame and a foot length matched to the 24-inch desk depth. The unit delivers a base stroke of 24-50" without the 1.4-inch chrome ring on, but you can attach the ring to accommodate an extended range. It handles a load capacity of 220 lbs and is designed for an assembly time of just 15 min. Built to strict professional standards, the sit-stand desk frame is ANSI/BIFMA G1-2013 compliant, featuring a height range of 22.6” to 48.7” that fits over 95% of users.

The digital controller includes three memory presets along with collision and anti-tilt protection. The tactile buttons allow the desk frame to be operated smoothly without visual attention.


Frame specifications

  • Frame width:
  • Frame depth:
  • Material/finish: Powdercoated steel RAL 9006 (silver)
  • Height adjustment: 24-50"
  • Lifting capacity: 220 lbs
  • Operation: The desk frame comes standard with a digital controller offering three memory presets. The tactile up and down buttons make everyday operation smooth, easy, and intuitive.
  • Motor : ConSet’s stable 1-motor mechanism with documented reliability
Frame Color
Silver
Frame Style
C shape 23.6"
Add-Ons
No add-ons
Control Unit
Frame color:
Frame size:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
431-35 8S142
Description:
Standing Desk Frame | Width 142 cm | Silver
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1XXX-X2 XSXXXLift column set, silver$ 512,-$ 512,-
1501-XX XS055CFeet and brackets C60, silver$ 130,-$ 130,-
1501-XX 8XPOWSPower box S$ 205,-$ 205,-
1SQ141820Traversset, 142 cm, neutral$ 82,-$ 82,-

Total
$ 929,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XSXXX77191715,000
501-XX XS055C681066,705704142162262
501-XX 8XPOWS25971,005704142161876
SQ141820141533,305704142141823
